FX691V-AS24 4 Stroke Engine FX691V

FX691V-AS24 Carburetor(2 / 2) Diagram

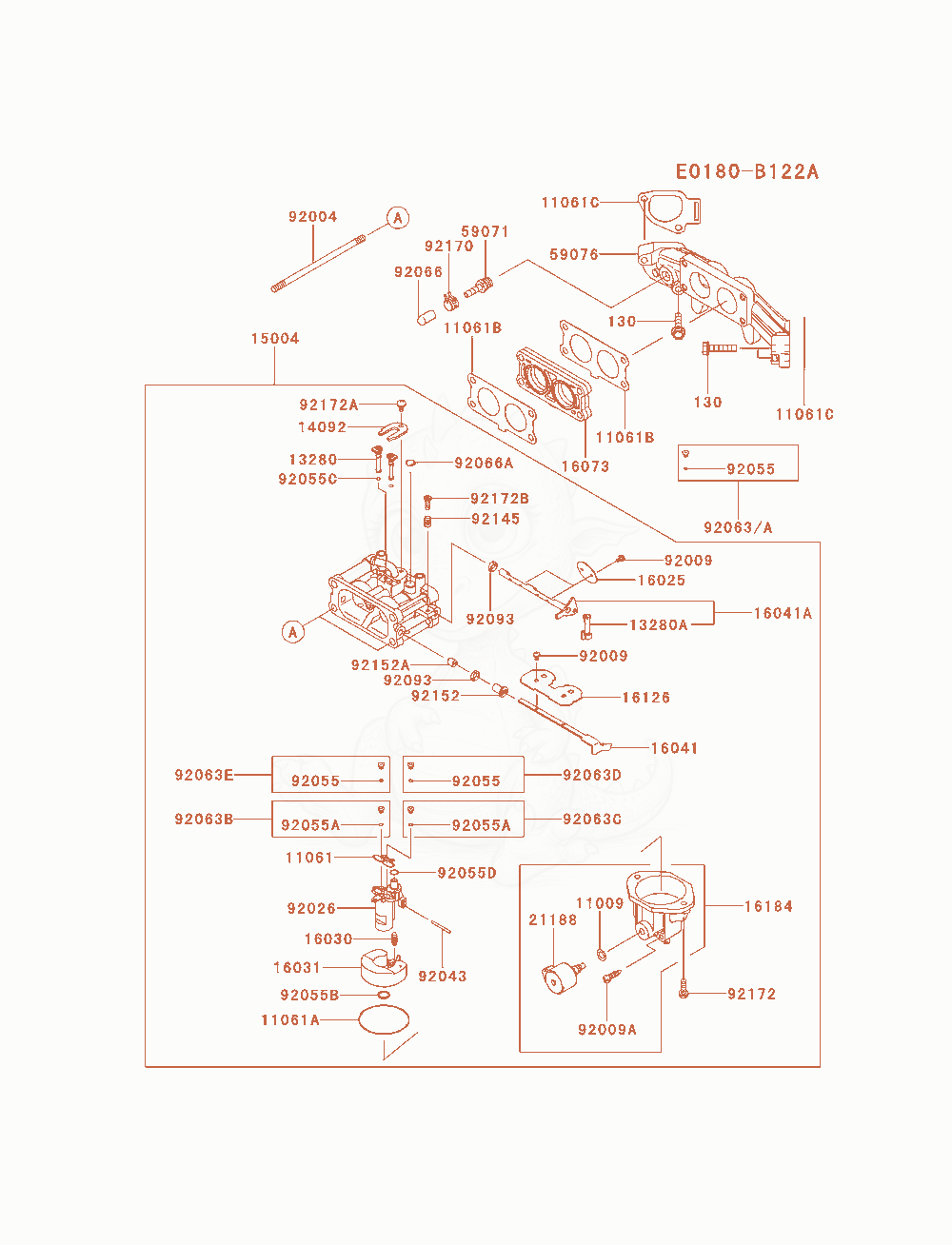

Exploded parts diagram of the Carburetor(2 / 2) of a Kawasaki FX691V-AS24 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

9206692066-0095
$4.79
PLUG×1
92066A92066-0780
$1.28
PLUG,WELCH×2
9209392093-7002
$1.93
SEAL,D=6.9×2
9214592145-7039
$2.39
SPRING×1
9215292152-7018
$2.93
COLLAR×1
92152A92152-7019
$1.97
COLLAR×1
9217092170-2042
$1.18
CLAMP×1
9217292172-7005
$1.45
SCREW,M5×2
92172A92172-7006
$1.35
SCREW,M4×1
92172B92172-7039
$1.70
SCREW,THROTTLE ADJUST×1
130130AA0630
$1.45
BOLT-FLANGED,6X30×4
