FX691V-AS08 4 Stroke Engine FX691V

FX691V-AS08 Electric-Equipment Diagram

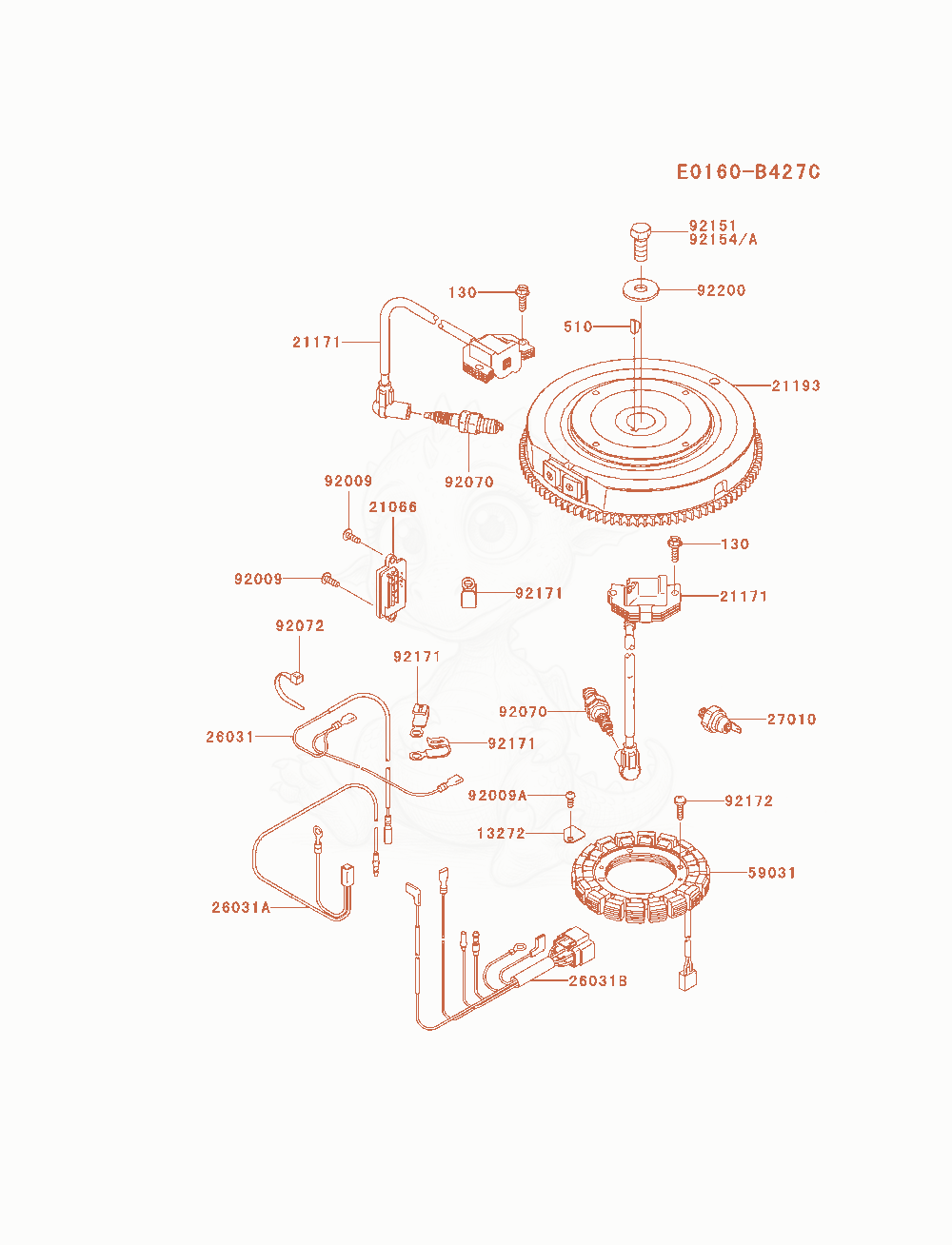

Exploded parts diagram of the Electric-Equipment of a Kawasaki FX691V-AS08 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1327213272-7012
$1.31
PLATE×1
2106621066-7017
$45.85
REGULATOR-VOLTAGE×1
2117121171-7047
$45.86
COIL-ASSY-IGNITIONReplaced by 21171-0743×2
2119321193-0036
$245.06
FLYWHEEL-ASSYReplaced by 21193-0720×1
2603126031-7040
$5.20
HARNESS×1
26031A26031-7041
$7.49
HARNESS×1
26031B26031-7048
$10.51
HARNESS×1
2701027010-0817
$21.03
SWITCH×1
5903159031-7017
$112.81
COIL-CHARGING×1
9200992009-2303
$2.61
SCREWReplaced by 92172-1608×2
92009A92009-2308
$0.32
SCREW×1
92070BPR4ES
$4.98
PLUG-SPARK,BPR4ES(NGK×2
9207292072-7003
$1.12
BAND×1
9215192151-2097Not stocked
BOLT,12X30×0
92154A92154-7003
$4.36
BOLT,12X30×1
9217192171-7008Not stocked
CLAMP×3
9217292172-7018
$0.30
SCREW,5X20×4
9220092200-7002
$2.81
WASHERReplaced by 92200-2535×1
130130AA0620
$3.09
BOLT-FLANGED,6X20×4
510510A5100
$2.96
KEY-WOODRUFF×1
