FX691V-AS08 4 Stroke Engine FX691V

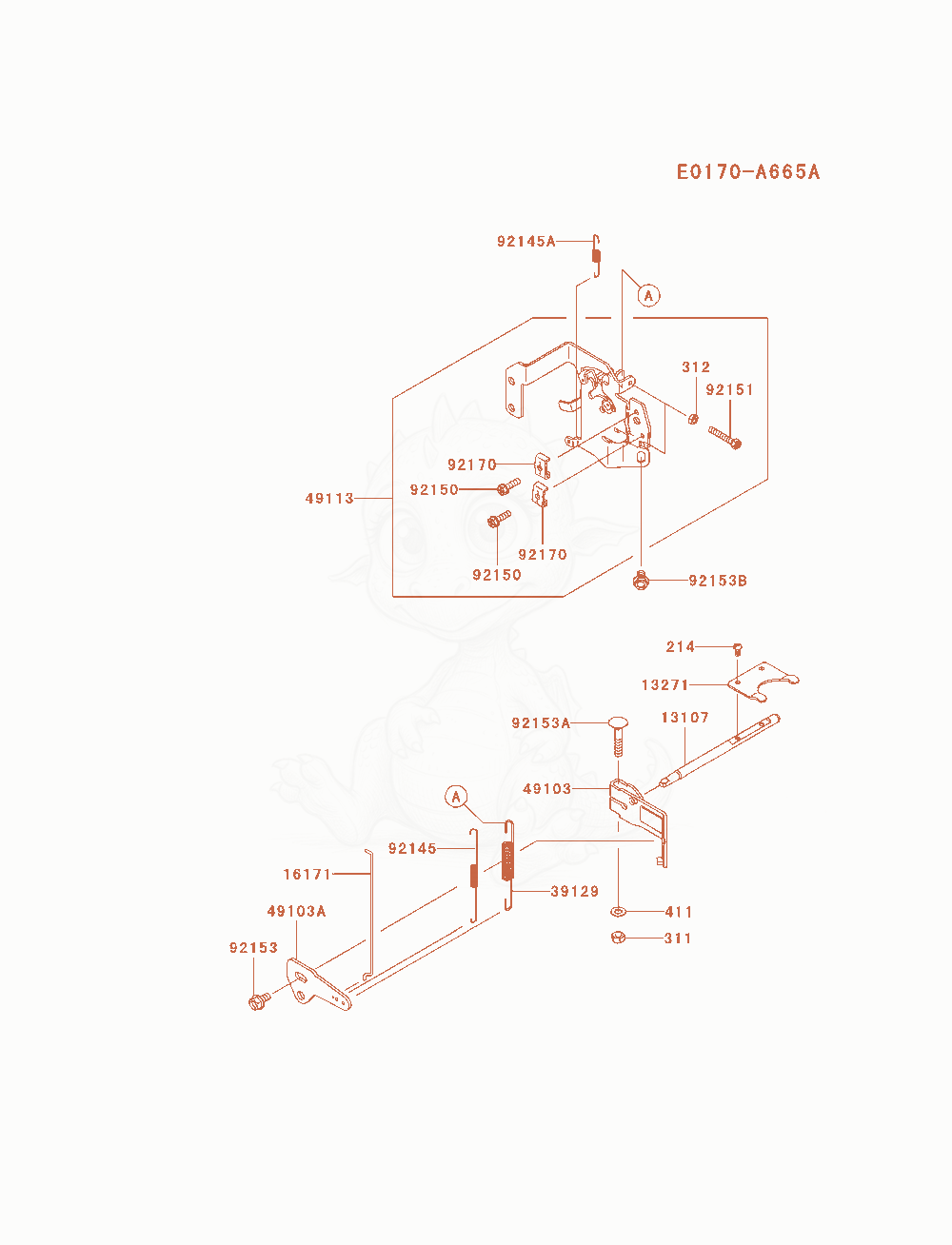

FX691V-AS08 Control-Equipment Diagram
- 1310713107-7047Not stockedSHAFT,GOVERNOR×1
- PLATE×1
- LINKReplaced by 16171-0043×1
- SPRING-GOVERNORReplaced by 39129-0044×1
- ARM-GOVERNORReplaced by 49103-0017×1
- ARM-GOVERNOR×1
- PANEL-COMP-CONTROL×1
- SPRINGReplaced by 92145-1811×1
- SPRINGReplaced by 92145-1812×1
- BOLT,5X18×2
- BOLT,5X30×2
- BOLT,6X12×1
- BOLT,6X35Replaced by 92154-2697×1
- 92153B92153-7043Not stockedBOLT,6X12×1
- CLAMP×2
- SCREW-PAN+-,4X8×2
- NUT-HEX,6MM×1
- NUT-HEX,5MM×2
- WASHER-PLAIN,6MM×1
