FX600V-AS20 4 Stroke Engine FX600V

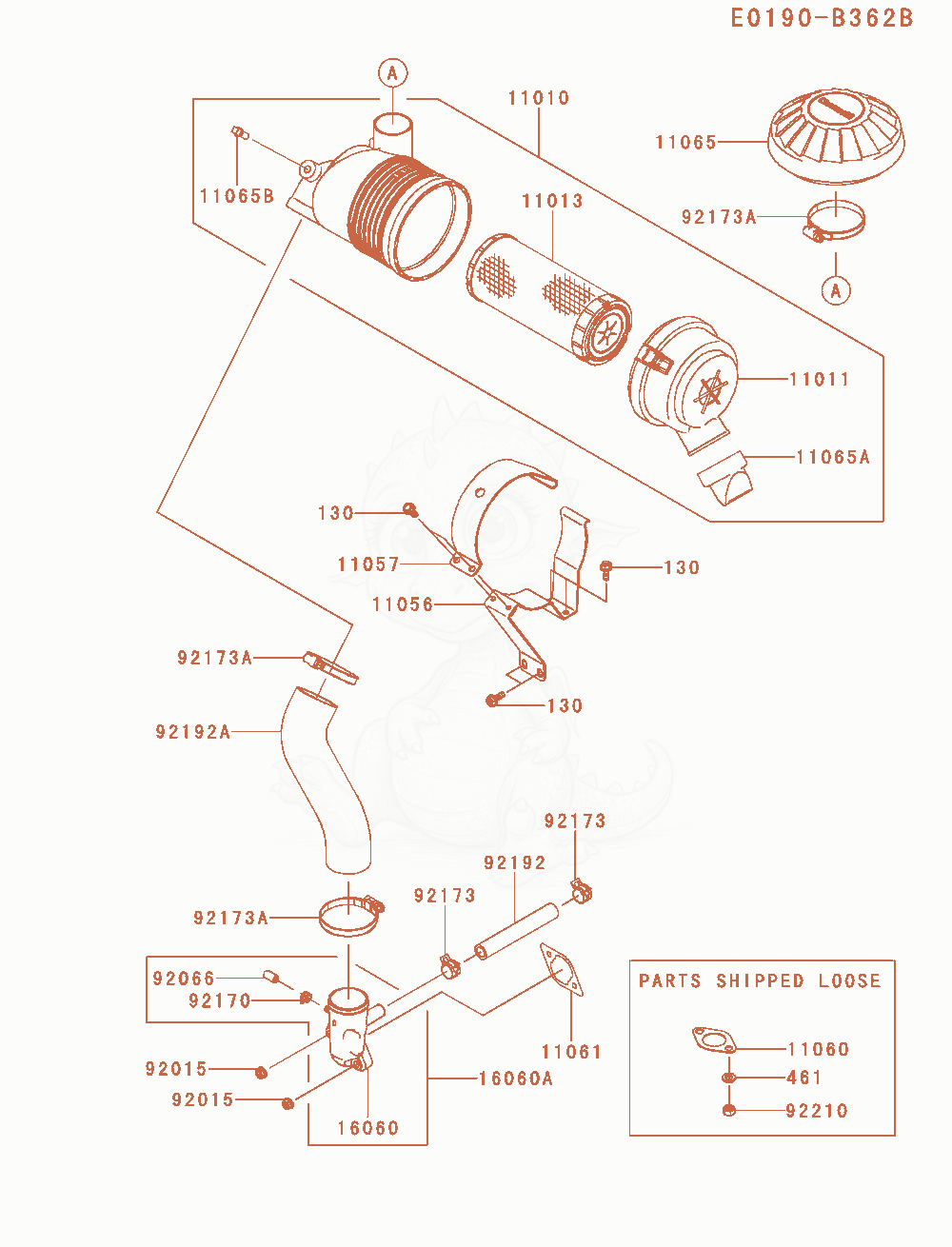

FX600V-AS20 Air-Filter / Muffler Diagram
- FILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKETReplaced by 11058-2136×1
- 1105711057-1260Not stockedBRACKET,AIR FILTER×1
- GASKET,MUFFLER×2
- GASKET-AIR FILTER×1
- CAP,RAIN×1
- CAP×1
- CAP×1
- 1606016060-0740Not stockedPIPE-INTAKE×1
- 16060A16060-0742Not stockedPIPE-INTAKE×1
- NUT,FLANGED,6MM×2
- PLUG×1
- CLAMP×1
- CLAMP×2
- CLAMP×3
- TUBE,12.6X18.6X118×1
- TUBE,A/CReplaced by 92192-2624×1
- NUT,M8×4
- 130130BA0616Not stockedBOLT-FLANGED,6X16×6
- WASHER-SPRING,8MM×4
