FX541V-CS07 4 Stroke Engine FX541V

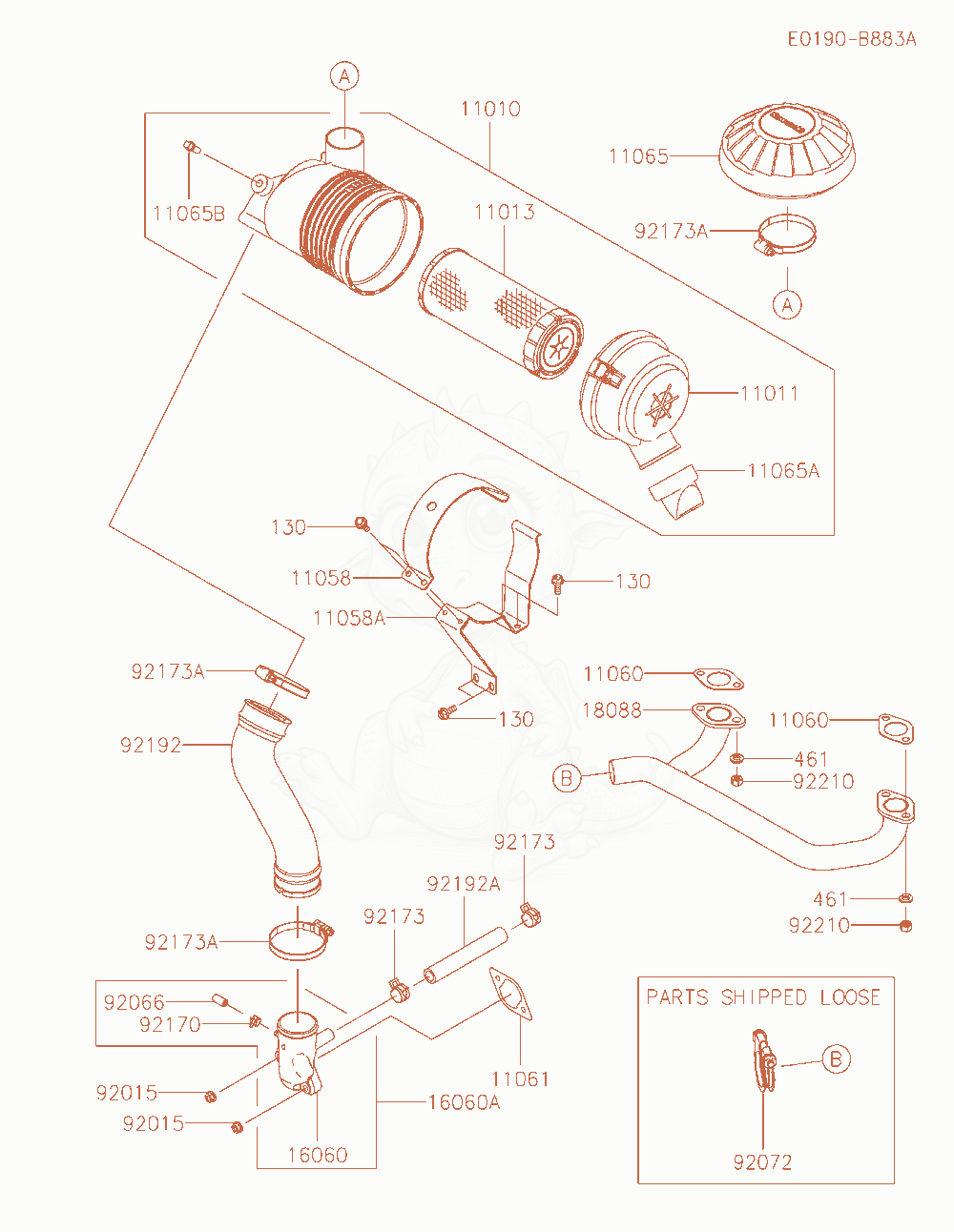

FX541V-CS07 Air-Filter / Muffler Diagram
- FILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKET,AIR FILTER×1
- BRACKET×1
- GASKET,MUFFLER×2
- GASKET-AIR FILTER×1
- CAP,RAIN×1
- CAP×1
- CAP×1
- PIPE-INTAKE×1
- PIPE-INTAKE×1
- PIPE-EXHAUST×1
- NUT,FLANGED,6MM×2
- PLUG×1
- BAND×1
- CLAMP×1
- CLAMP×2
- CLAMP×3
- TUBE,A/C×1
- TUBE,12.6X18.6X118×1
- NUT,M8×4
- 130130BA0616Not stockedBOLT-FLANGED,6X16×6
- WASHER-SPRING,8MM×4
