FX541V-CS07 4 Stroke Engine FX541V

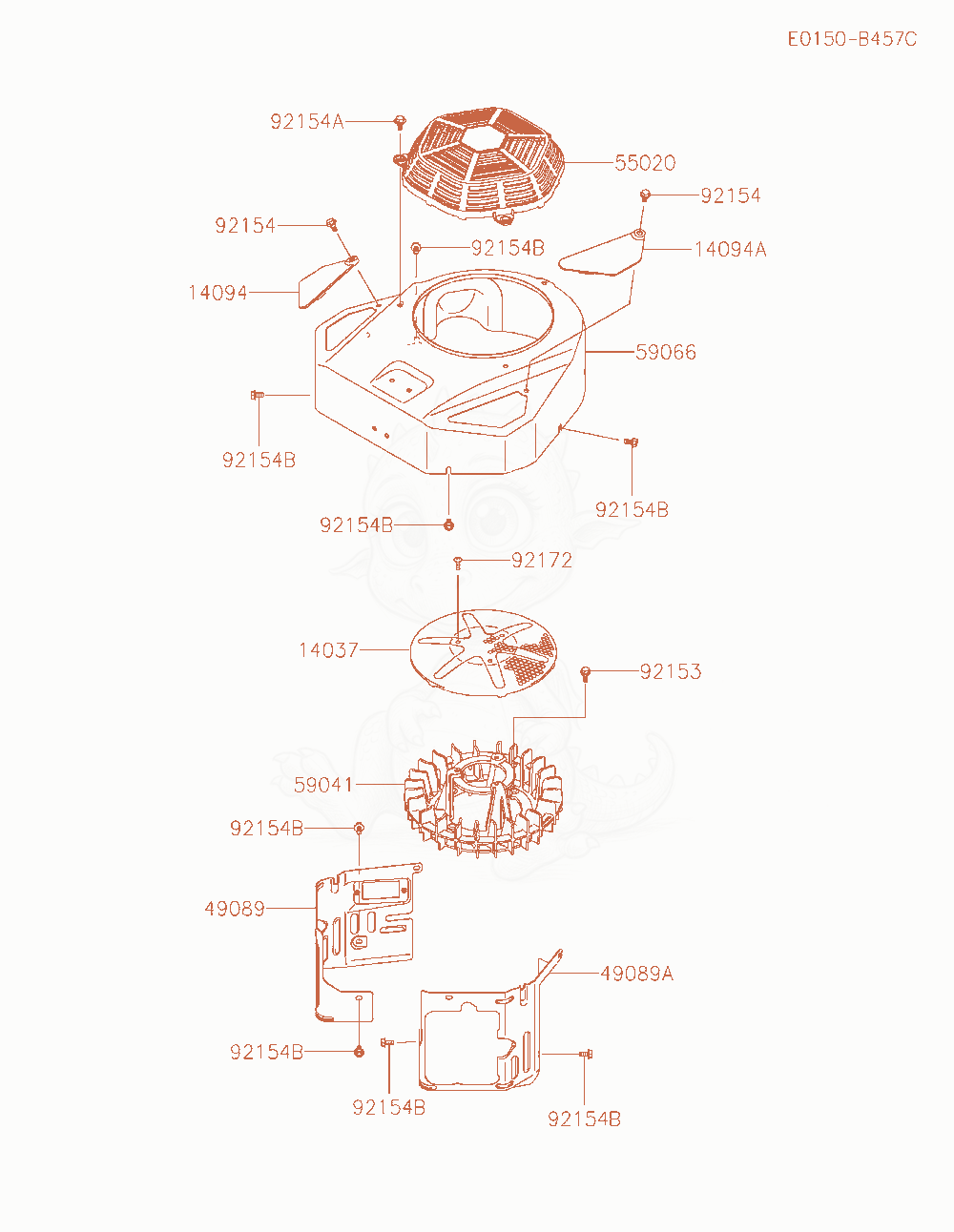

FX541V-CS07 Cooling-Equipment Diagram

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FX541V-CS07 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1403714037-7008-9H
$31.46
SCREEN×1
1409414094-0475
$1.72
COVER,CYL #1×1
14094A14094-0476
$1.72
COVER,CYL #2×1
4908949089-1197
$0.00
SHROUD-ENGINE×1
49089A49089-1198
$0.00
SHROUD-ENGINE×1
5502055020-2505
$40.94
GUARD×1
5904159041-7016
$17.49
FAN×1
5906659066-0855
$103.32
HOUSING-FAN×1
9215392153-7007
$3.78
BOLT,FLANGED,6X16×4
9215492154-1119
$2.06
BOLT×2
92154A92154-2815
$1.20
BOLT×3
92154B92154-2938
$2.74
BOLT,6X12×8
9217292172-1608
$2.23
SCREW,5X16×3
