FX541V-BS06 4 Stroke Engine FX541V

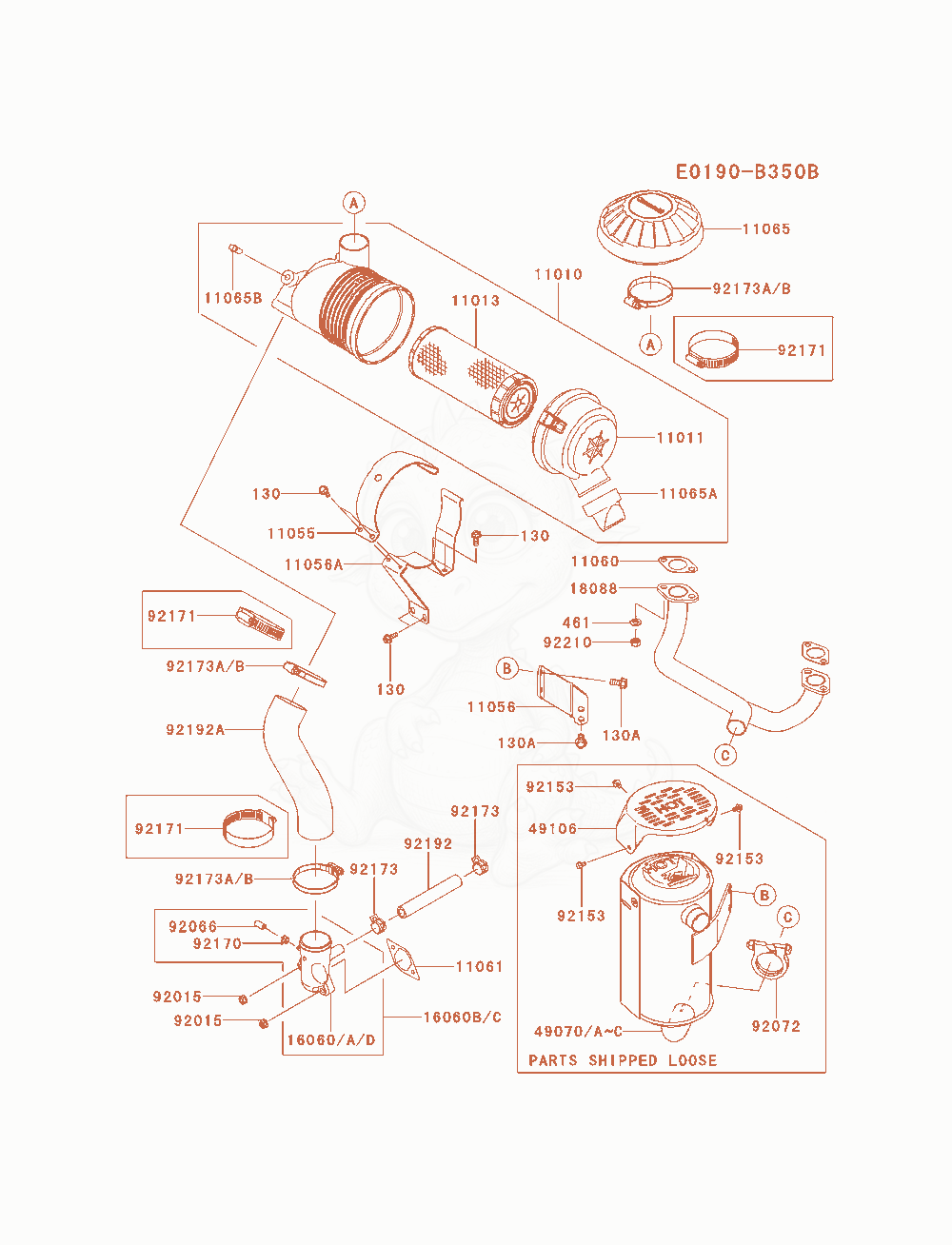

FX541V-BS06 Air-Filter / Muffler Diagram
- FILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKETReplaced by 11058-2118×1
- KIT.×1
- BRACKETReplaced by 11058-2136×1
- GASKET,MUFFLER×2
- GASKET-AIR FILTER×1
- CAPReplaced by 11065-1392×1
- CAP×1
- CAP×1
- 16060A16060-0740Not stockedPIPE-INTAKE×1
- 16060C16060-0742Not stockedPIPE-INTAKE×1
- PIPE-INTAKEReplaced by 16060-0792×0
- 1808818088-7009Not stockedPIPE-EXHAUST×1
- MUFFLER-COMP×1
- MUFFLER-COMP×0
- COVER-MUFFLER×1
- NUT,FLANGED,6MM×2
- PLUG×1
- BAND×1
- BOLT×3
- CLAMP×1
- CLAMP×2
- CLAMP×3
- TUBE,12.6X18.6X118×1
- TUBE,A/CReplaced by 92192-2624×1
- NUT,M8×4
- BOLT-FLANGED,6X16×6
- BOLT-FLANGED,8X16×4
- WASHER-SPRING,8MM×4
