FX541V-BS06 4 Stroke Engine FX541V

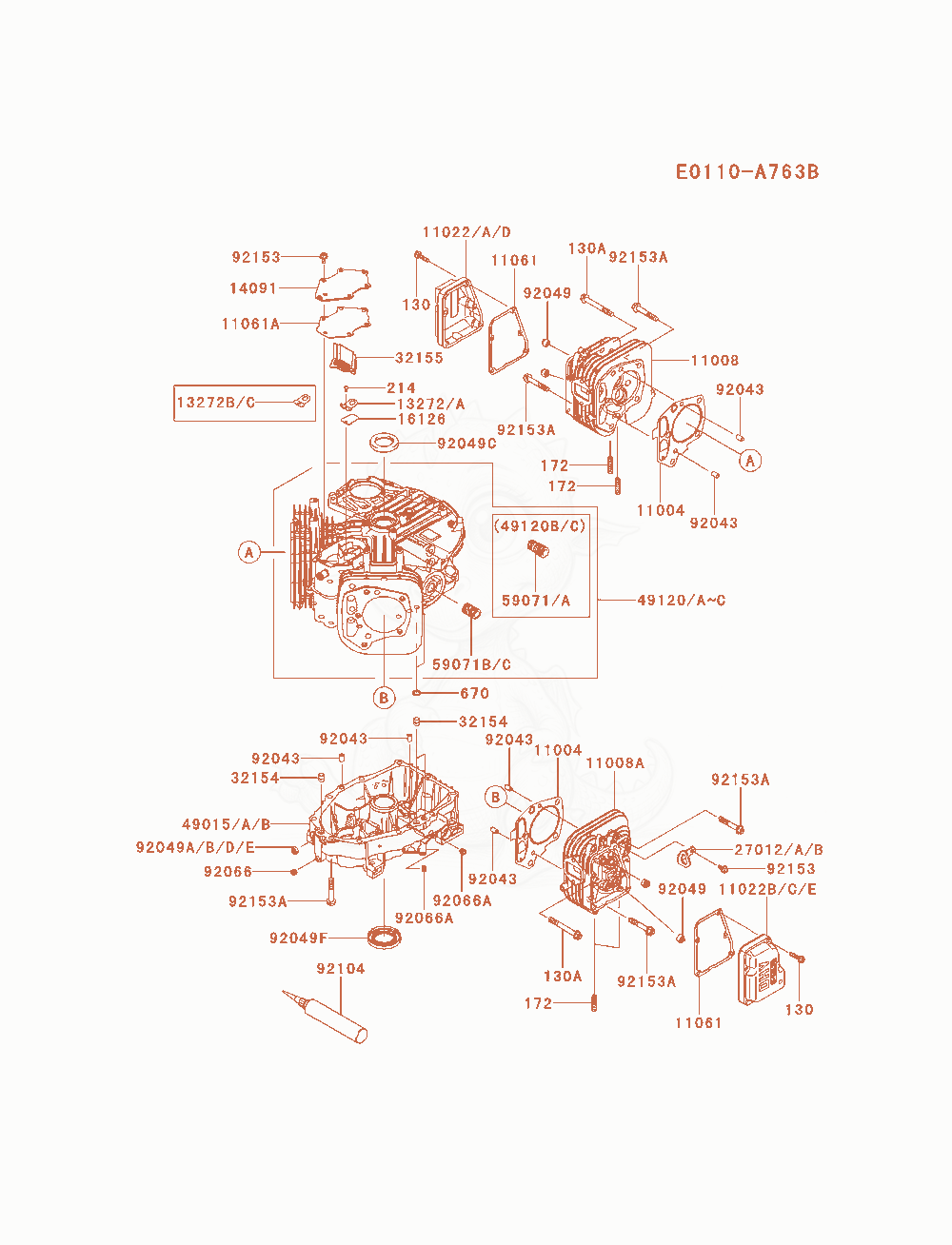

FX541V-BS06 Cylinder / Crankcase Diagram

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FX541V-BS06 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 92049F92049-7028
    $13.01
    SEAL-OIL,38X62X8MTCLV×1
  • 9206692066-7023Not stocked
    PLUG×1
  • 92066A92066-7026Not stocked
    PLUG×2
  • 9210492104-7001
    $45.03
    GASKET-LIQUID,TB1217HReplaced by 92104-0007×AR
  • 9215392153-7043Not stocked
    BOLT,6X12×7
  • 92153A92153-7054
    $2.37
    BOLT,8X50×14
  • 130130AA0625
    $0.50
    BOLT-FLANGED,6X25×10
  • 130A130CA0870
    $2.13
    BOLT-FLANGED,8X70×6
  • 172172BA0818
    $1.74
    BOLT-STUD,8X18×4
  • 214214AA0408
    $4.13
    SCREW-PAN+-,4X8×1
  • 670670B2011
    $5.21
    O RING,11MM×2
