FX481V-AS09 4 Stroke Engine FX481V

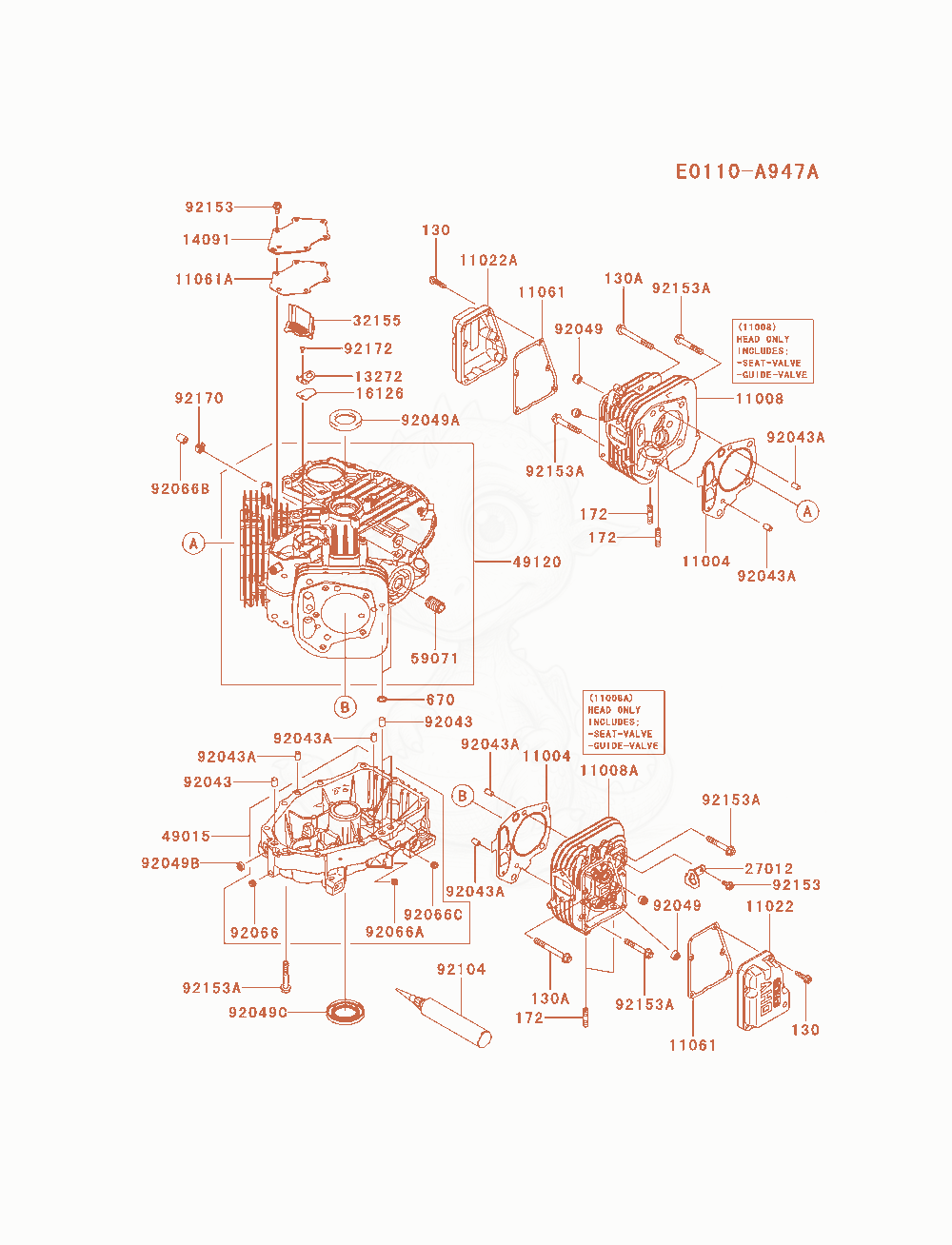

FX481V-AS09 Cylinder / Crankcase Diagram
- GASKET-HEAD×2
- HEAD-COMP-CYLINDER,#1Replaced by 11008-1579×1
- HEAD-COMP-CYLINDER,#2Replaced by 11008-1580×1
- CASE-ROCKER,#2Replaced by 11022-0047×1
- CASE-ROCKER,#1Replaced by 11022-0046×1
- GASKET,CASE-ROCKERReplaced by 11061-1285×2
- GASKET,BREATHER×1
- PLATE×1
- COVER,BREATHER×1
- VALVE,BREATHER×1
- HOOK,LIFT×1
- 3215532155-7003Not stockedPIPE,BREATHER×1
- COVER-CRANKCASEReplaced by 49015-0726×1
- 4912049120-0731Not stockedCRANKCASE-COMP×1
- 5907159071-0733Not stockedJOINT×1
- PIN×3
- PIN,6.2X8X14×6
- SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×4
- SEAL-OIL,SD 35X48X8 R HS×1
- SEAL-OIL,SO 8X14X5 HS×1
- SEAL-OIL,38X62X8MTCLV×1
- PLUGReplaced by 92066-0880×1
- 92066A92066-0762Not stockedPLUG×1
- PLUG×1
- PLUG×1
- GASKET-LIQUID,TB1217H×AR
- 9215392153-7043Not stockedBOLT,6X12×7
- BOLT,8X50×14
- 9217092170-2088Not stockedCLAMP×1
- 9217292172-0870Not stockedSCREW,4X8×1
- BOLT-FLANGED,6X25×10
- BOLT-FLANGED,8X70×6
- BOLT-STUD,8X22Replaced by 92004-0837×4
- O RING,11MM×2
