FX481V-AS09 4 Stroke Engine FX481V

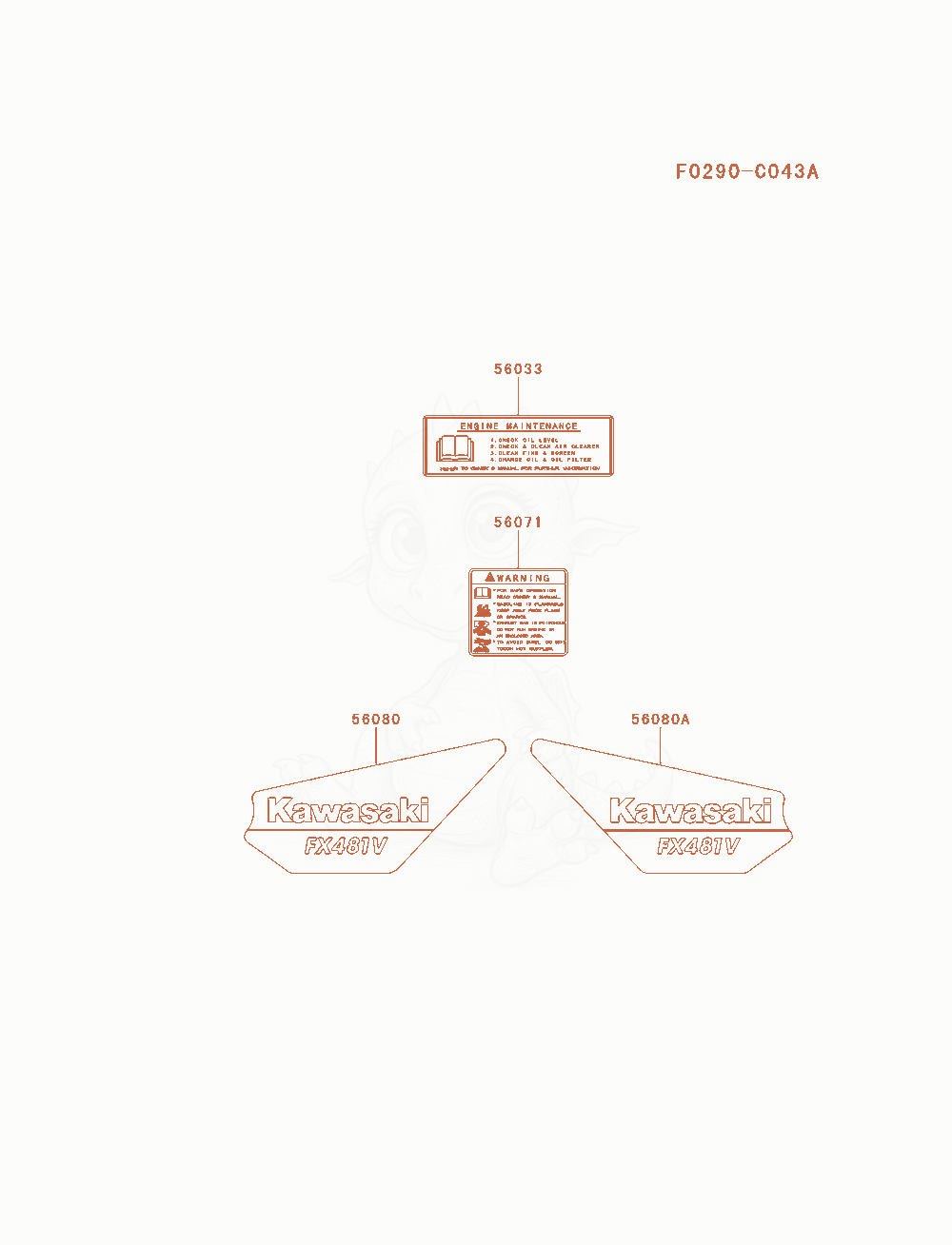

FX481V-AS09 Label Diagram

Exploded parts diagram of the Label of a Kawasaki FX481V-AS09 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5603356033-7001
    $1.20
    LABEL-MANUALReplaced by 56033-1502×1
  • 5607156071-0216
    $2.21
    LABEL-WARNINGReplaced by 56071-1170×1
