FS541V-FS21 4 Stroke Engine FS541V

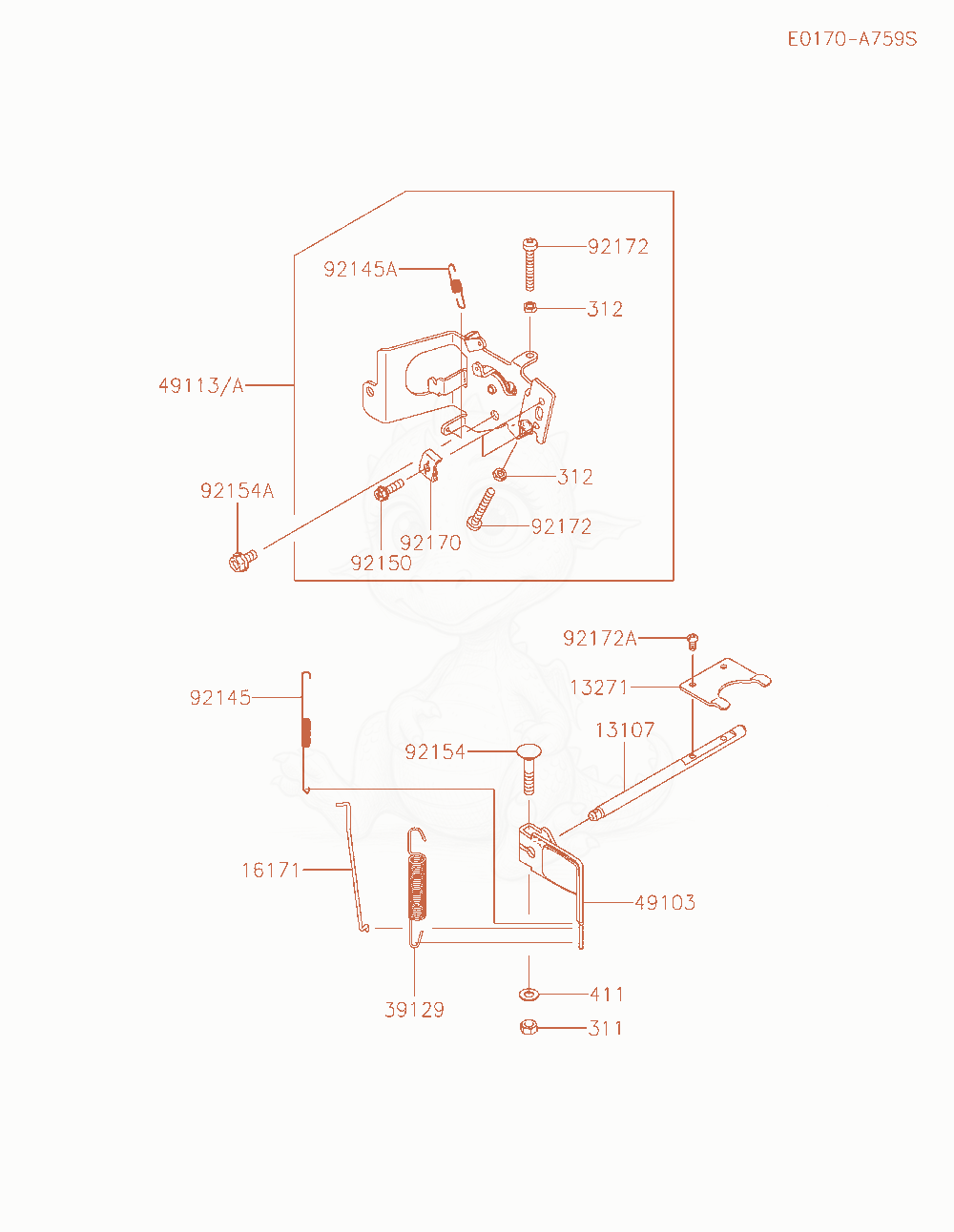

FS541V-FS21 Control-Equipment Diagram

Exploded parts diagram of the Control-Equipment of a Kawasaki FS541V-FS21 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1310713107-7049Not stocked
    SHAFT×1
  • 1327113271-7038
    $3.04
    PLATE×1
  • 1617116171-0044
    $0.69
    LINK×1
  • 3912939129-0725
    $4.16
    SPRING-GOVERNOR×1
  • 4910349103-7017Not stocked
    ARM-GOVERNOR×1
  • 4911349113-0047Not stocked
    PANEL-COMP-CONTROL×0
  • 49113A49113-0744
    $24.07
    PANEL-COMP-CONTROL×1
  • 9214592145-1811
    $3.21
    SPRING,LINK×1
  • 92145A92145-7004Not stocked
    SPRING×1
  • 9215092150-2182
    $0.32
    BOLT,5X18×2
  • 9215492154-2697
    $0.88
    BOLT,6X35×1
  • 92154A92154-2938
    $2.74
    BOLT,6X12×1
  • 9217092170-7001
    $2.31
    CLAMP×2
  • 9217292172-0792
    $1.77
    SCREW,5X35×2
  • 92172A92172-0870
    $0.26
    SCREW,4X8Replaced by 92172-1731×2
  • 311311BA0600Not stocked
    NUT-HEX,6MM×1
  • 312312AA0500
    $0.36
    NUT-HEX,5MM×2
  • 411411AA0600
    $3.69
    WASHER-PLAIN,6MM×1
