FS541V-FS21 4 Stroke Engine FS541V

FS541V-FS21 Cooling-Equipment Diagram

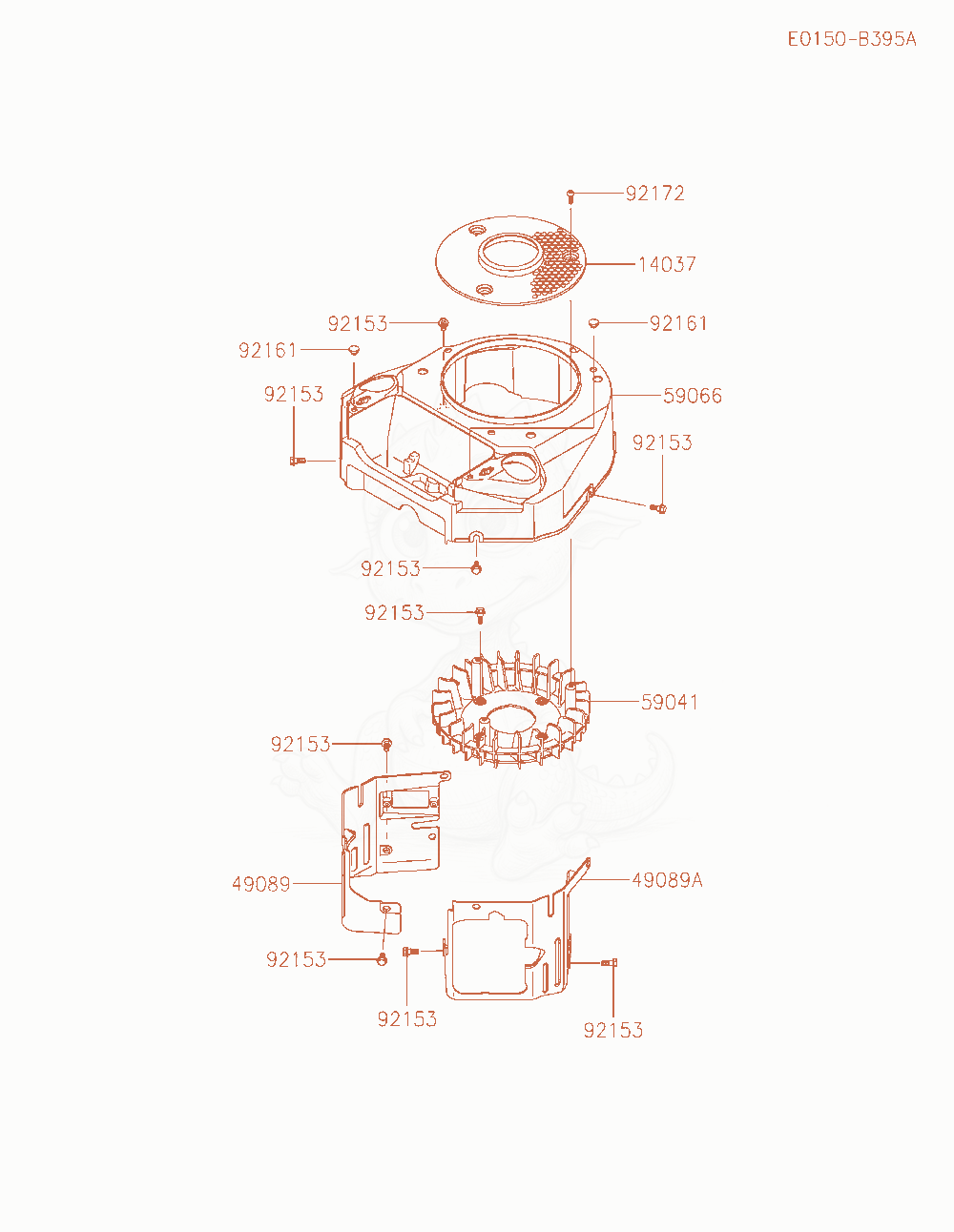

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FS541V-FS21 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1403714037-0754
$8.52
SCREENReplaced by 14037-0846×1
4908949089-0987
$19.31
SHROUD-ENGINE×1
49089A49089-0988
$19.76
SHROUD-ENGINE×1
5904159041-0012
$17.22
FAN×1
5906659066-0829Not stocked
HOUSING-FAN×1
9215392153-7007
$3.78
BOLT,FLANGED,6X16×12
9216192161-0586
$3.13
DAMPER×2
9217292172-0896
$3.18
SCREW,5X19.6×3
