FR600V-BS15 4 Stroke Engine FR600V

FR600V-BS15 Cylinder / Crankcase Diagram

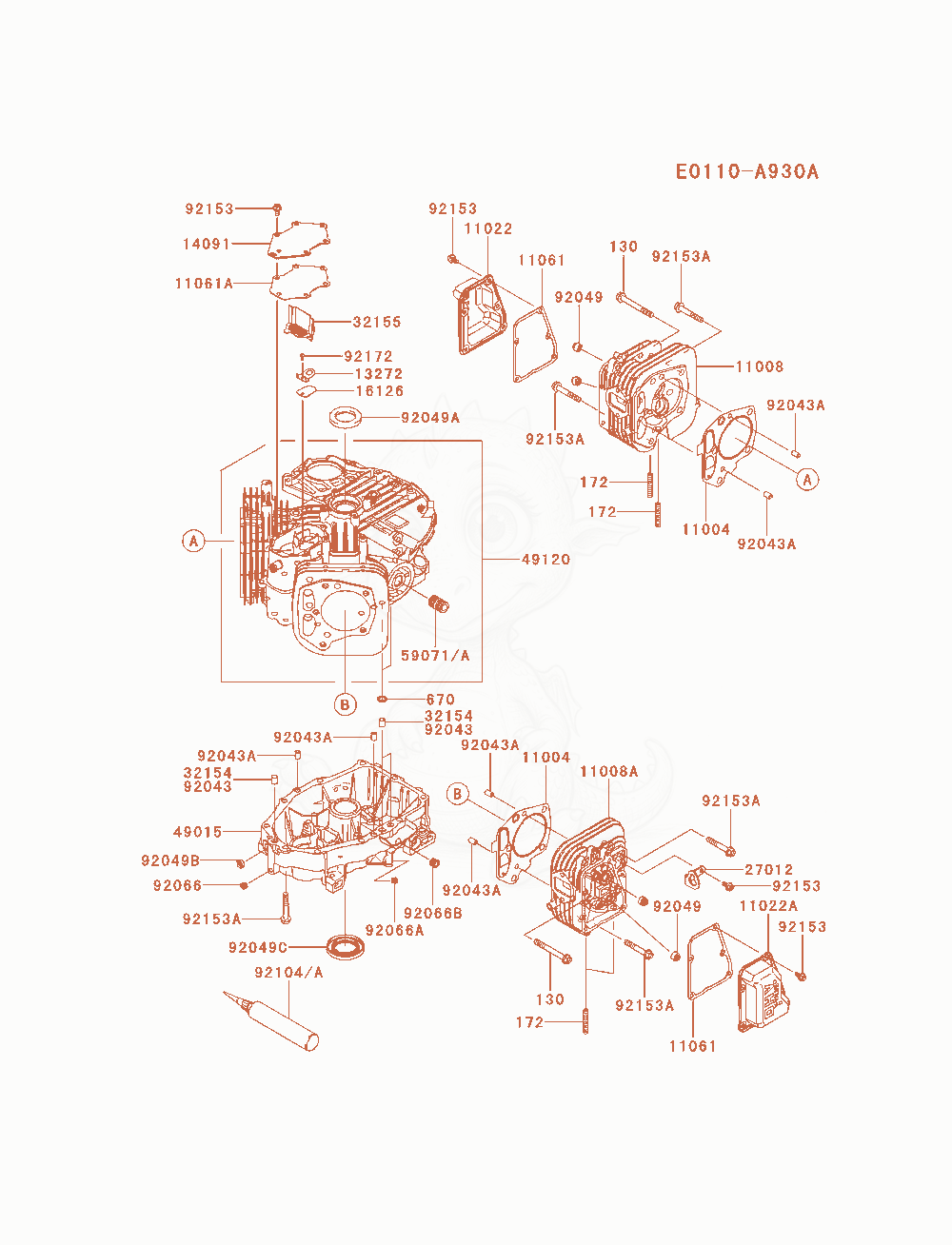

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FR600V-BS15 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1100411004-7027
$24.39
GASKET-HEAD×2
1100811008-7050
$195.94
HEAD-COMP-CYLINDER,#1Replaced by 11008-1579×1
11008A11008-7051
$205.93
HEAD-COMP-CYLINDER,#2Replaced by 11008-1580×1
1102211022-7034
$10.33
CASE-ROCKER,#1×1
11022A11022-7035
$10.29
CASE-ROCKER,#2×1
1106111061-7083
$4.15
GASKET,CASE-ROCKERReplaced by 11061-1285×2
11061A11061-7094
$7.73
GASKET,BREATHER×1
1327213272-1374Not stocked
PLATE×1
1409114091-7064
$1.92
COVER,BREATHER×1
1612616126-7020
$4.26
VALVE,BREATHER×1
2701227012-0721
$4.39
HOOK,LIFT×1
3215432154-7019
$1.78
PIPEReplaced by 92043-0858×0
3215532155-7003
$1.26
PIPE,BREATHERReplaced by 32155-7455×1
4901549015-0019
$181.72
COVER-CRANKCASEReplaced by 49015-0726×1
4912049120-0731Not stocked
CRANKCASE-COMP×1
5907159071-0733Not stocked
JOINT×1
59071A59071-0733Not stocked
JOINT×0
9204392043-0858
$1.78
PIN×3
92043A92043-1263
$0.30
PIN,6.2X8X14×6
9204992049-7001
$7.19
SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×4
92049A92049-7010
$5.54
SEAL-OIL,SD 35X48X8 R HS×1
92049B92049-7019
$6.87
SEAL-OIL,SO 8X14X5 HS×1
92049C92049-7028
$13.01
SEAL-OIL,38X62X8MTCLV×1
9206692066-0761
$3.22
PLUGReplaced by 92066-0880×1
92066A92066-0762Not stocked
PLUG×1
92066B92066-2223
$1.70
PLUG×1
9210492104-0007
$45.07
GASKET-LIQUID,TB1217H×AR
92104A92104-7001
$45.03
GASKET-LIQUID,TB1217HReplaced by 92104-0007×0
9215392153-7043Not stocked
BOLT,6X12×17
92153A92153-7054
$2.37
BOLT,8X50×14
9217292172-0870
$0.26
SCREW,4X8Replaced by 92172-1731×1
130130CA0870
$2.13
BOLT-FLANGED,8X70×6
172172BA0822
$2.12
BOLT-STUD,8X22Replaced by 92004-0837×4
670670B2011
$5.21
O RING,11MM×2
