FR600V-BS15 4 Stroke Engine FR600V

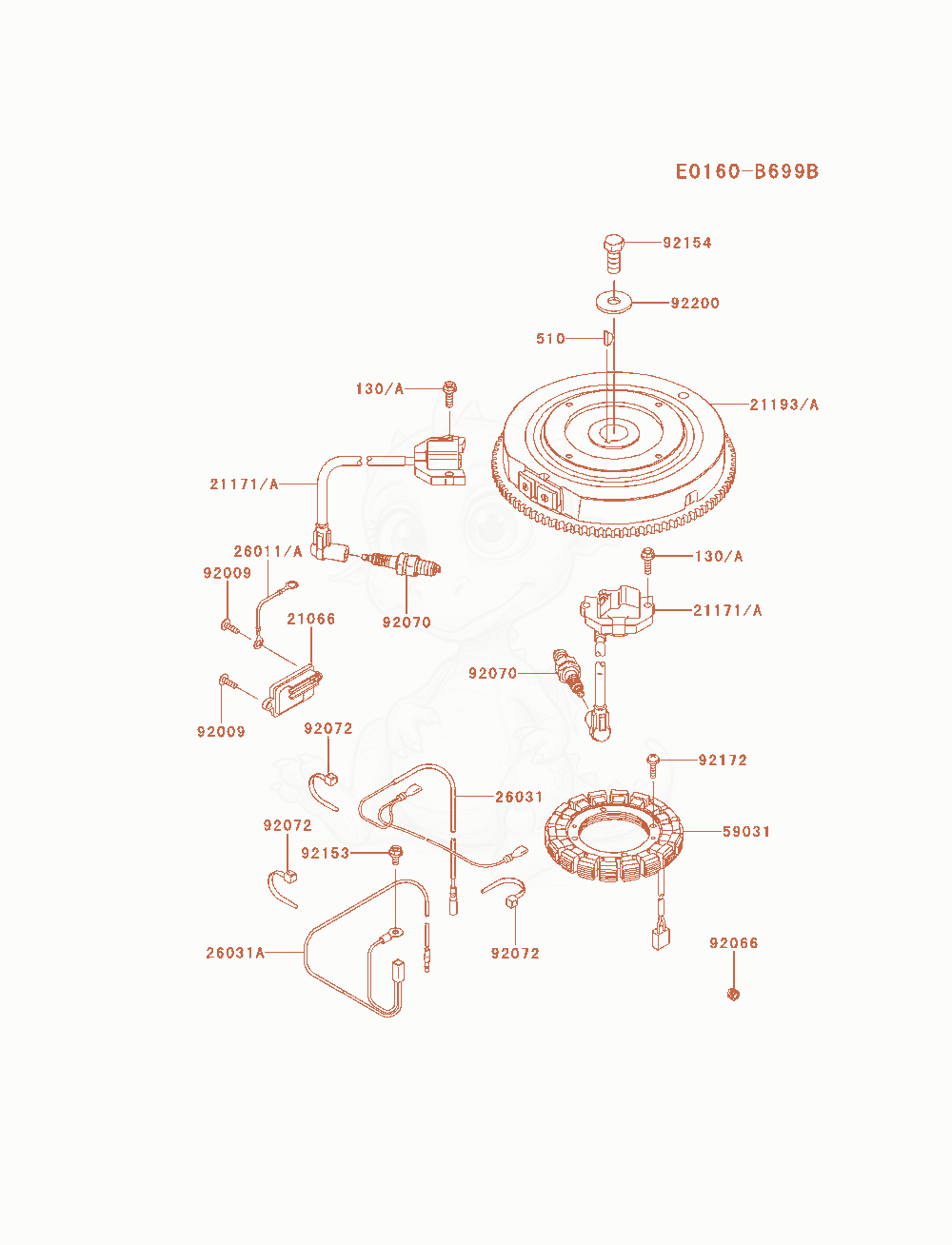

FR600V-BS15 Electric-Equipment Diagram

Exploded parts diagram of the Electric-Equipment of a Kawasaki FR600V-BS15 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2106621066-7017
    $45.85
    REGULATOR-VOLTAGE×1
  • 2117121171-0711
    $72.25
    COIL-ASSY-IGNITIONReplaced by 21171-0743×0
  • 21171A21171-0738
    $72.25
    COIL-ASSY-IGNITION,#1 CYLReplaced by 21171-0743×2
  • 2119321193-0035Not stocked
    FLYWHEEL-ASSY×1
  • 21193A21193-0035Not stocked
    FLYWHEEL-ASSY×0
  • 2601126011-2234
    $2.31
    WIRE-LEAD×1
  • 26011A26011-7025
    $2.53
    WIRE-LEAD,L=95×0
  • 2603126031-7040
    $5.20
    HARNESS×1
  • 26031A26031-7047
    $8.17
    HARNESS×1
  • 5903159031-7017
    $112.81
    COIL-CHARGING×1
  • 9200992009-2303
    $2.61
    SCREWReplaced by 92172-1608×2
  • 9206692066-0762Not stocked
    PLUG×1
  • 92070BPR4ES
    $4.98
    PLUG-SPARK,BPR4ES(NGK×2
  • 9207292072-7003
    $1.12
    BAND×3
  • 9215392153-7043Not stocked
    BOLT,6X12×1
  • 9215492154-7003
    $4.36
    BOLT,12X30×1
  • 9217292172-7018
    $0.30
    SCREW,5X20×4
  • 9220092200-7002
    $2.81
    WASHERReplaced by 92200-2535×1
  • 130130AA0620
    $3.09
    BOLT-FLANGED,6X20×0
  • 130A130BA0620
    $1.59
    BOLT-FLANGED,6X20×4
  • 510510A5100
    $2.96
    KEY-WOODRUFF×1
