FR600V-AS23 4 Stroke Engine FR600V

FR600V-AS23 Fuel-Tank / Fuel-Valve Diagram

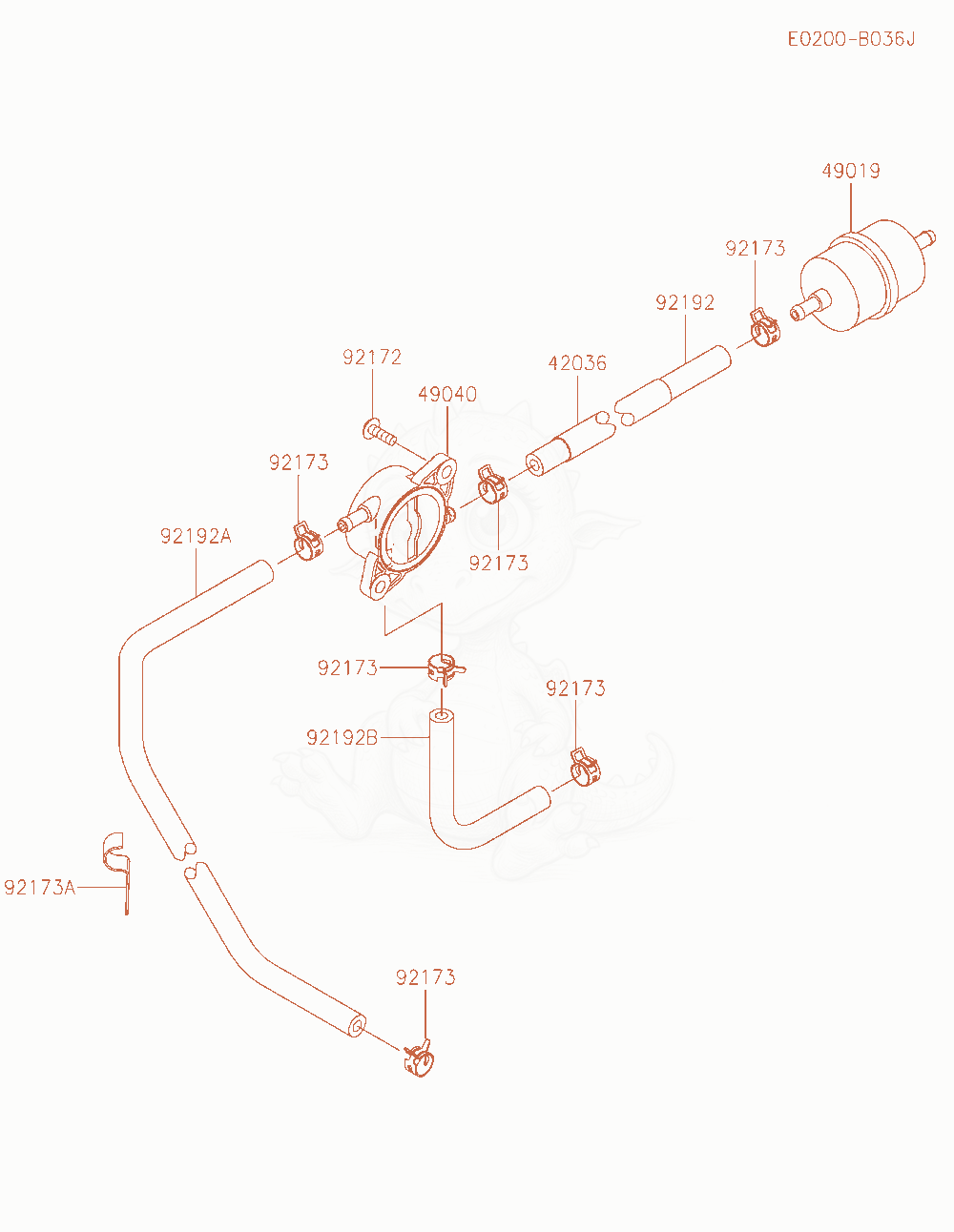

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FR600V-AS23 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

4203642036-7015
$3.45
SLEEVE×1
4901949019-0031
$7.74
FILTER-FUEL×1
4904049040-0802
$34.13
PUMP-FUEL×1
9217292172-1608
$2.23
SCREW,5X16×2
9217392173-1582
$3.00
CLAMP,11.8MM×6
92173A92173-2856
$1.62
CLAMP×1
9219292192-2388
$2.39
TUBE,6.35X12.7X185×1
92192A92192-2397
$5.38
TUBE,6.35X12.7X375×1
92192B92192-7148
$6.37
TUBE,6.4X12.7X150×1
