FR600V-AS23 4 Stroke Engine FR600V

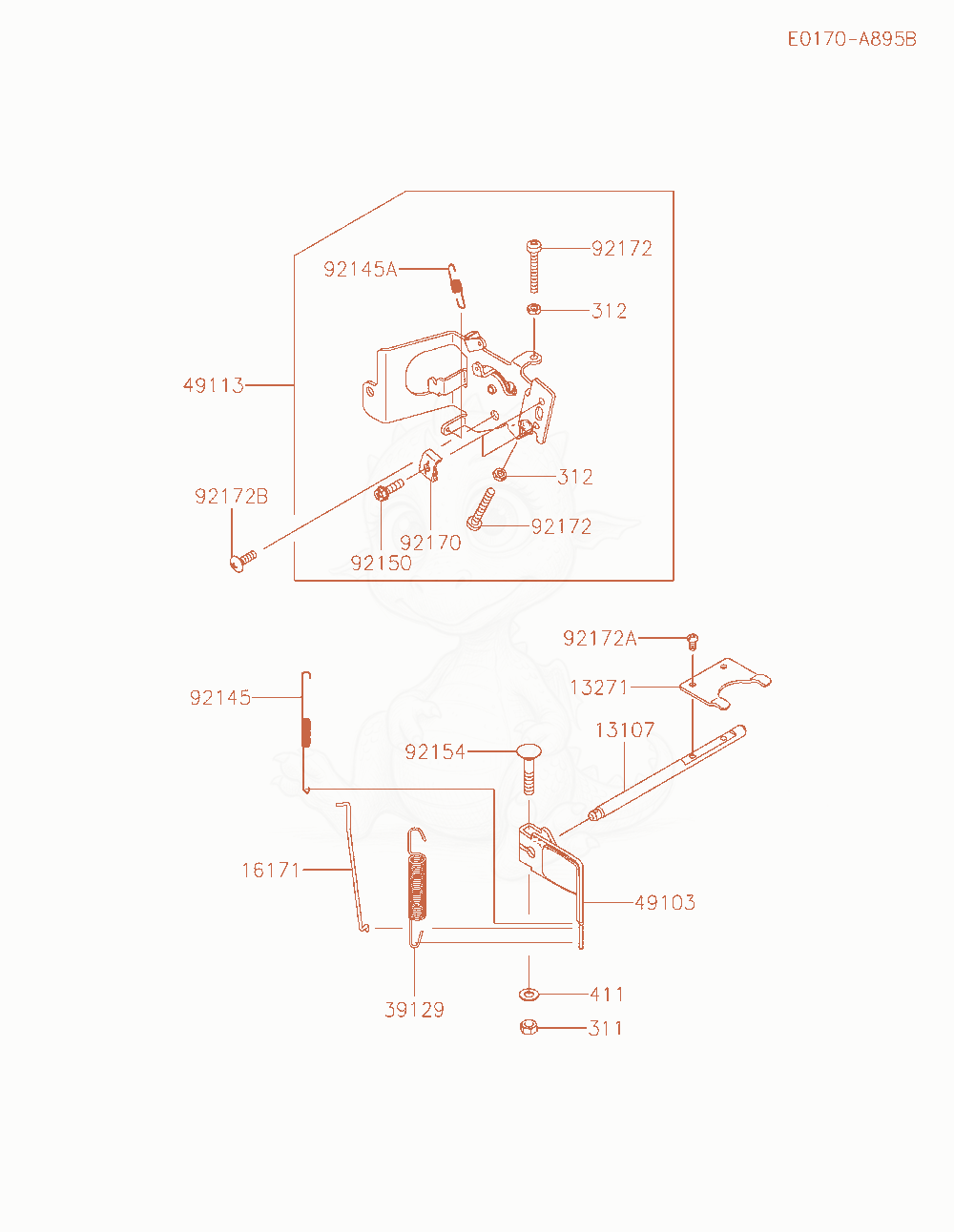

FR600V-AS23 Control-Equipment Diagram
- SHAFT×1
- PLATE×1
- LINK×1
- SPRING-GOVERNOR×1
- ARM-GOVERNOR×1
- PANEL-COMP-CONTROL×1
- SPRING,LINK×1
- 92145A92145-7004Not stockedSPRING×1
- BOLT,5X18×2
- BOLT,6X35×1
- CLAMP×2
- SCREW,5X35×2
- SCREW,4X8Replaced by 92172-1731×2
- SCREW,5X16×1
- 311311BA0600Not stockedNUT-HEX,6MM×1
- NUT-HEX,5MM×2
- WASHER-PLAIN,6MM×1
