FR600V-AS18 4 Stroke Engine FR600V

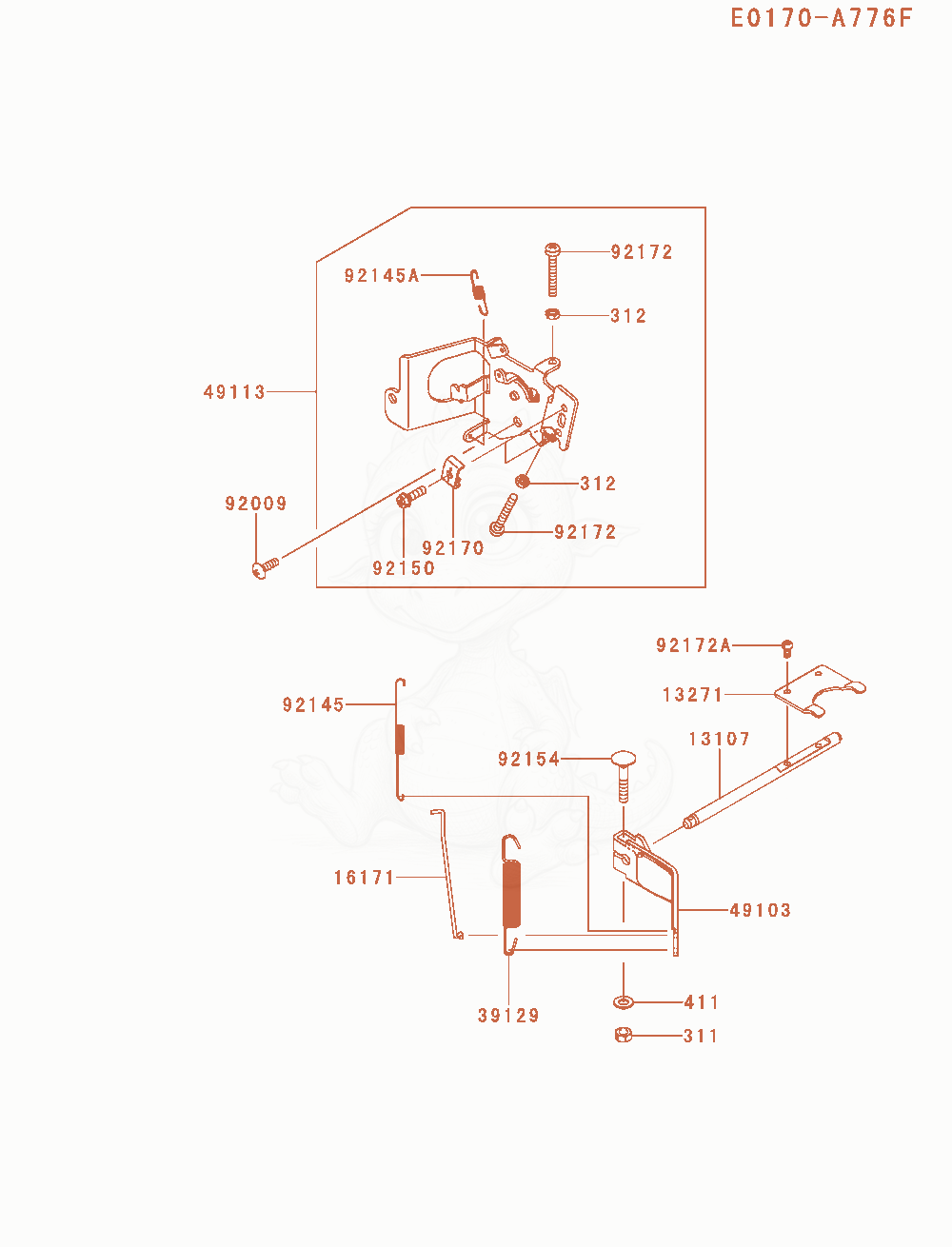

FR600V-AS18 Control-Equipment Diagram
- SHAFTReplaced by 13107-1555×1
- PLATE×1
- LINKReplaced by 16171-0044×1
- SPRING-GOVERNOR×1
- 4910349103-7017Not stockedARM-GOVERNOR×1
- 4911349113-0047Not stockedPANEL-COMP-CONTROL×1
- SCREWReplaced by 92172-1608×1
- SPRING,LINK×1
- 92145A92145-7004Not stockedSPRING×1
- BOLT,5X18×2
- BOLT,6X35×1
- CLAMP×2
- SCREW,5X35×2
- 92172A92172-0870Not stockedSCREW,4X8×2
- 311311BA0600Not stockedNUT-HEX,6MM×1
- NUT-HEX,5MM×2
- WASHER-PLAIN,6MM×1
