FR600V-AS18 4 Stroke Engine FR600V

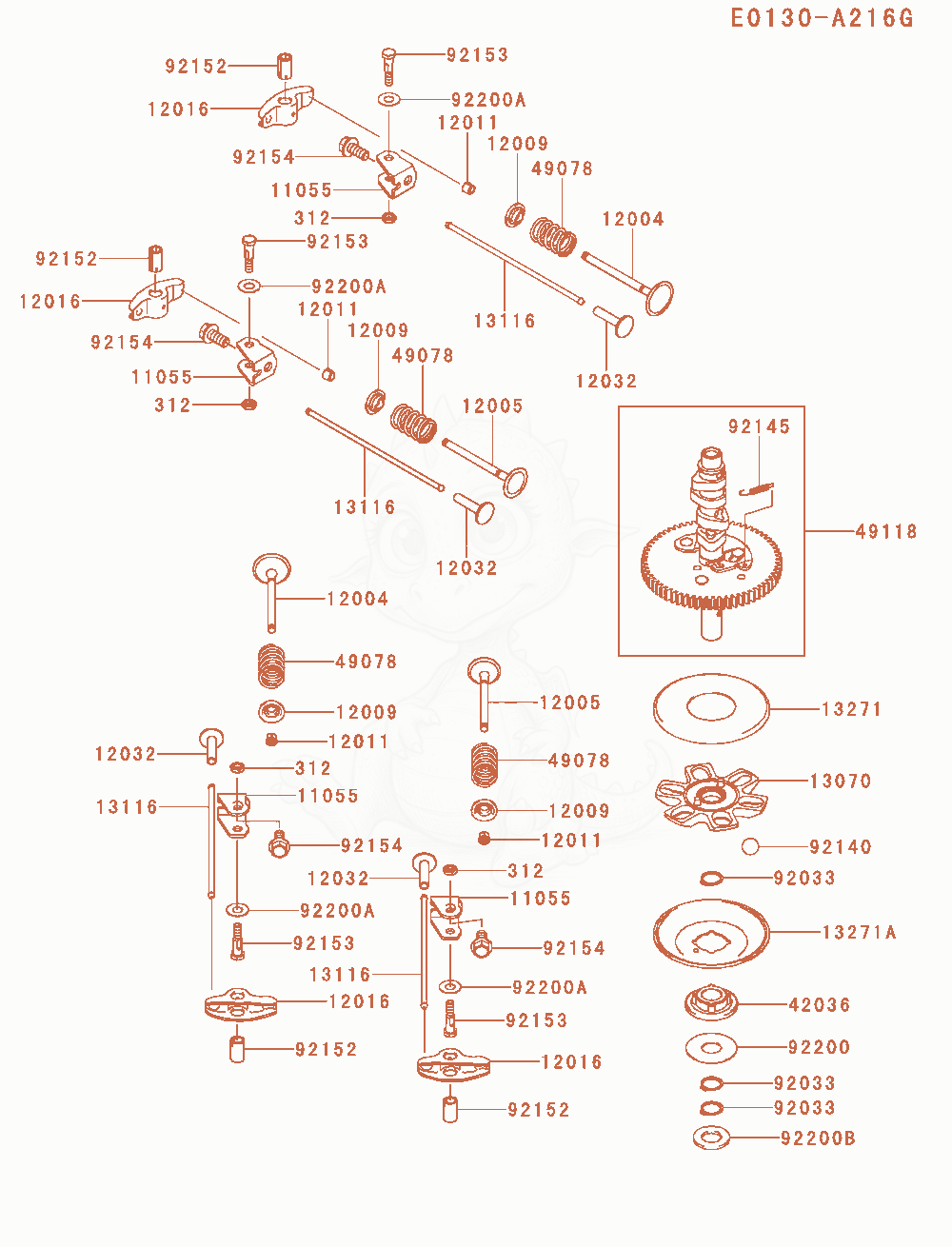

FR600V-AS18 Valve / Camshaft Diagram
- 1105511055-7009Not stockedBRACKET×4
- VALVE-INTAKE×2
- VALVE-EXHAUST×2
- RETAINER-VALVE SPRING×4
- COLLET×8
- ARM-ROCKER×4
- TAPPET×4
- GUIDE,GOVERNORReplaced by 13070-0997×1
- ROD-PUSH×4
- 1327113271-7007Not stockedPLATE×1
- 13271A13271-7021Not stockedPLATE,GOVERNOR×1
- SLEEVE×1
- SPRING-ENGINE VALVE,IN×4
- CAMSHAFT-COMP×1
- RING-SNAP×3
- BALLReplaced by 92140-0035×6
- SPRING×1
- COLLAR×4
- BOLT,6X29.5×4
- BOLT,8X18.2×4
- WASHER,16X42X0.91Replaced by 92200-2606×1
- WASHER,8.1X18X0.5Replaced by 92200-2707×4
- WASHER,16.3X30X2.28×1
- NUT-HEX,6MM×4
