FH770D-AS01 4 Stroke Engine FH770D

FH770D-AS01 Piston / Crankshaft Diagram

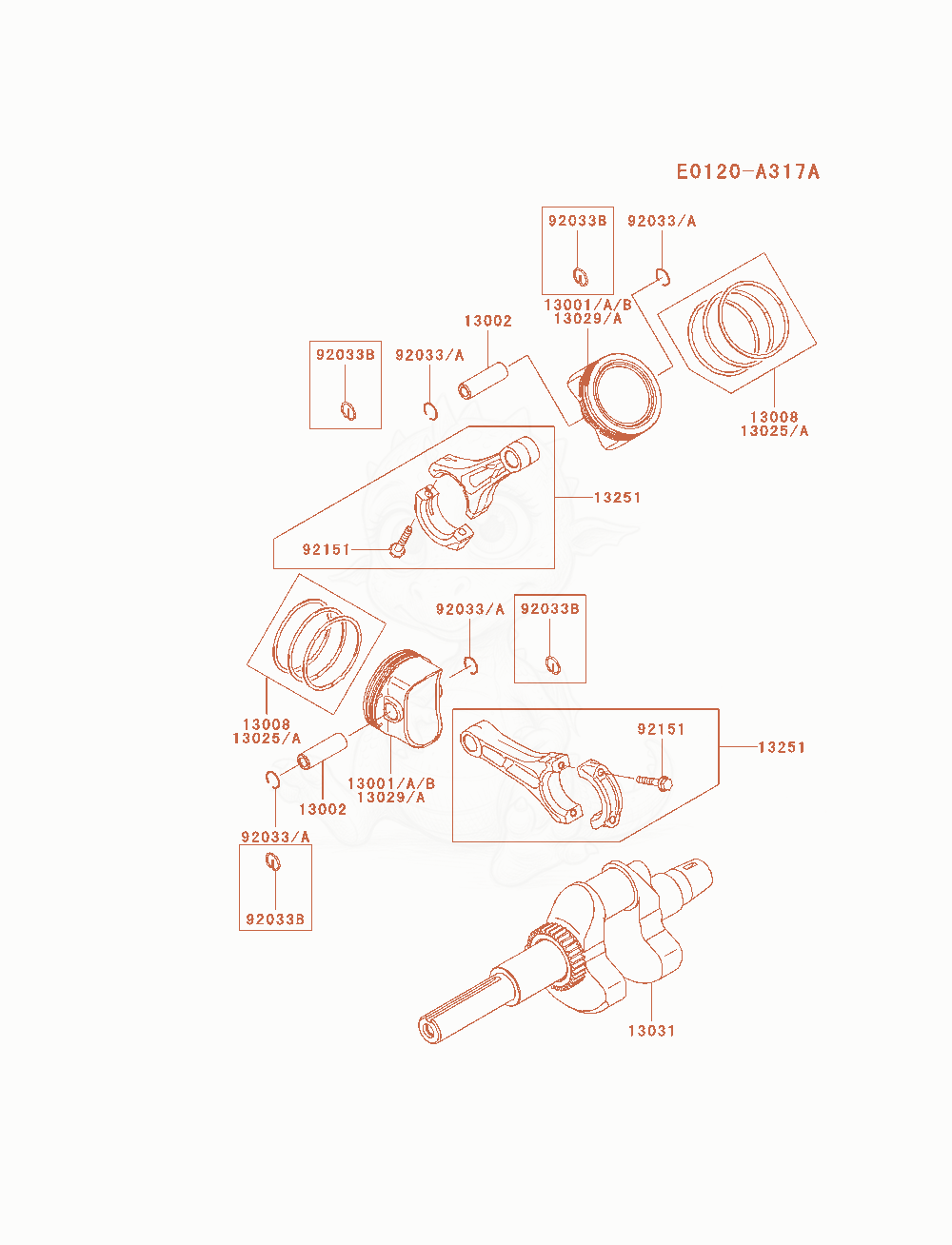

Exploded parts diagram of the Piston / Crankshaft of a Kawasaki FH770D-AS01 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1300113001-7018Not stocked
    PISTON-ENGINE×0
  • 13001B13001-7020
    $85.12
    PISTON-ENGINE×2
  • 1300213002-2085
    $8.44
    PIN-PISTON×2
  • 1300813008-6064
    $45.06
    RING-SET-PISTON×2
  • 13025A13025-7005
    $47.91
    RING-SET-PISTON L,0.5×AR
  • 13029A13029-7008
    $43.40
    PISTON-ENGINE L,0.50×AR
  • 1303113031-0795
    $332.67
    CRANKSHAFT-COMP×1
  • 1325113251-0048Not stocked
    ROD-ASSY-CONNECTING×2
  • 92033A92033-7002Not stocked
    RING-SNAP×4
  • 92033B92033-7005
    $0.39
    RING-SNAP×0
  • 9215192151-7017Not stocked
    BOLT,6X35×4
