FH770D-AS01 4 Stroke Engine FH770D

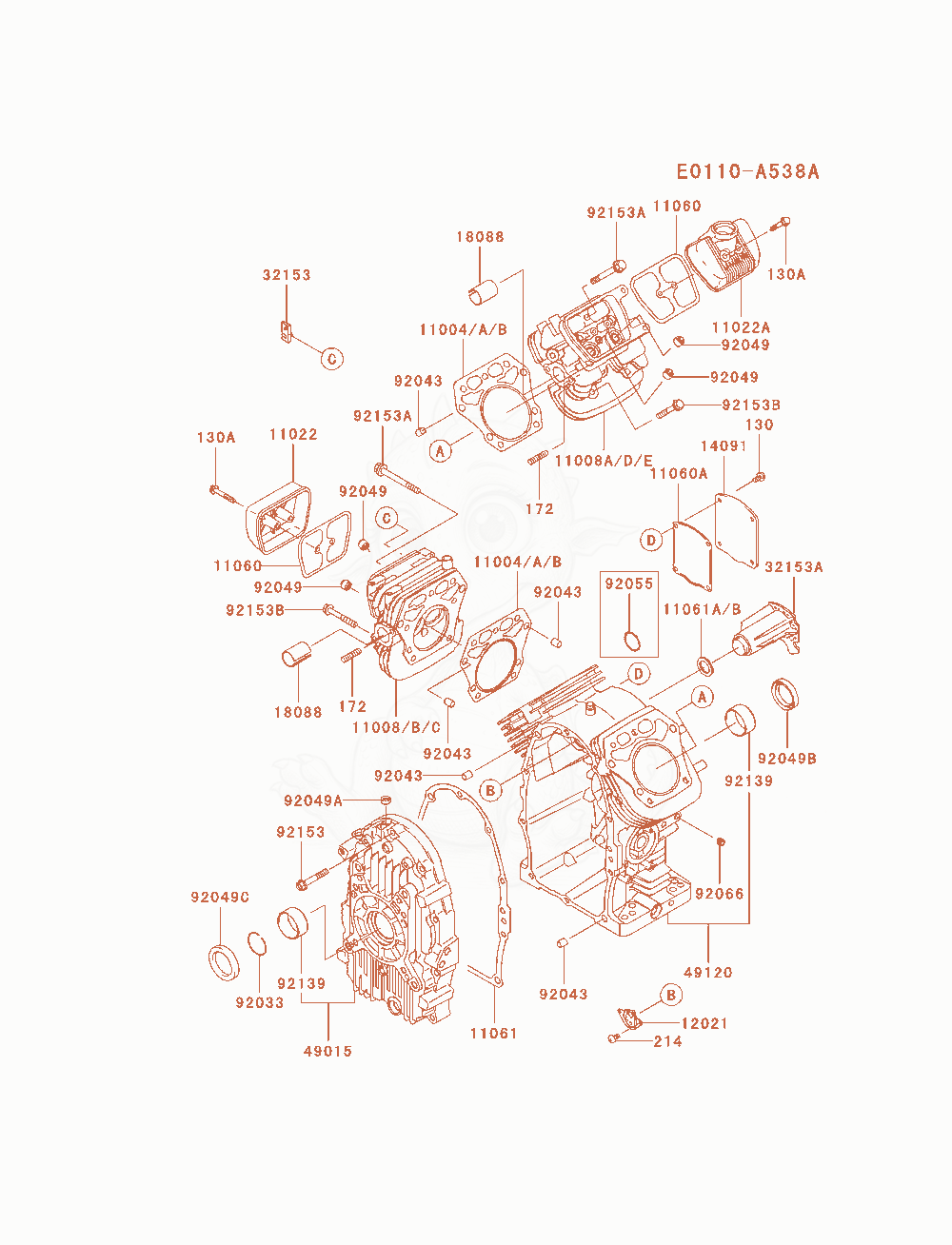

FH770D-AS01 Cylinder / Crankcase Diagram
- GASKET-HEAD×0
- GASKET-HEAD×2
- HEAD-COMP-CYLINDER,#1×0
- HEAD-COMP-CYLINDER,#2×0
- HEAD-COMP-CYLINDER,#1×1
- HEAD-COMP-CYLINDER,#2×1
- CASE-ROCKER×1
- 11022A11022-7004Not stockedCASE-ROCKER×1
- GASKET,ROCKER CASE×2
- GASKET,BREATHER×1
- 1106111061-7047Not stockedGASKET,CRANKCASE×1
- 11061B11061-7049Not stockedGASKET,20X30X2.7×1
- VALVE-ASSY-REED×1
- COVER×1
- PIPE-EXHAUST×2
- PIPE×1
- 32153A32153-7004Not stockedPIPE×1
- COVER-CRANKCASEReplaced by 49015-0733×1
- CRANKCASE-COMP×1
- RING-SNAP×1
- PIN×6
- SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×4
- 92049A92049-7005Not stockedSEAL-OIL,SO 8X14X5 HS×1
- SEAL-OIL,SD 35X48X8 R HS×1
- SEAL-OIL,SD-40-55-8-L-HS×1
- 9205592055-7020Not stockedRING-O,D=28×0
- PLUG×1
- 9213992139-7009Not stockedBUSHING×2
- BOLT,8X50×10
- BOLT,8X75×2
- BOLT,8X55×8
- BOLT-FLANGED,6X12Replaced by 130AA0612×4
- BOLT-FLANGED,6X40Replaced by 130AA0640×4
- BOLT-STUD,8X18×4
- SCREW-PAN,4X8Replaced by 214AA0408×2
