FH721V-AS26 4 Stroke Engine FH721V

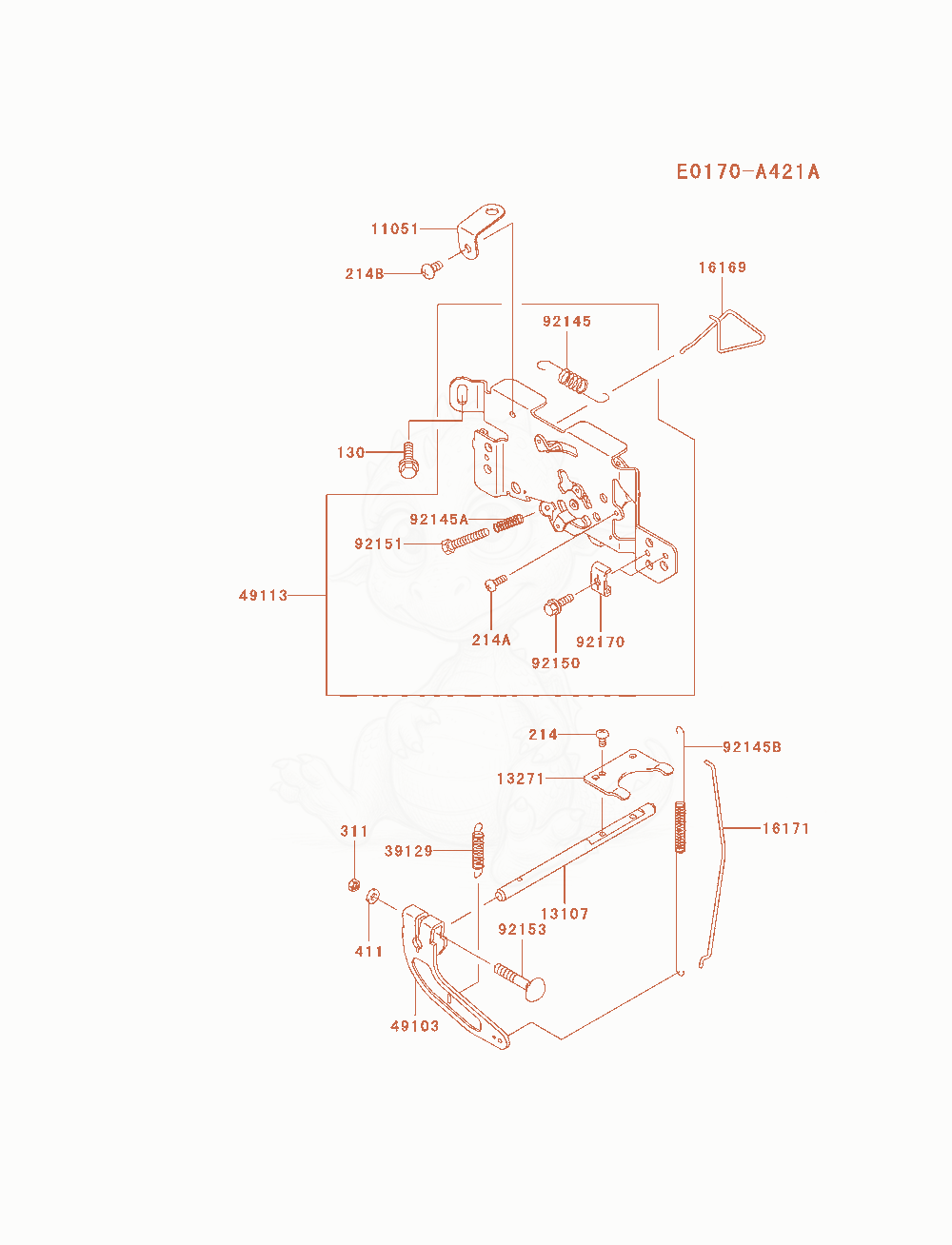

FH721V-AS26 Control-Equipment Diagram
- BRACKET×1
- 1310713107-0751Not stockedSHAFT×1
- PLATE×1
- LINK-CHOKEReplaced by 16169-0009×1
- LINKReplaced by 16171-0040×1
- SPRING-GOVERNOR×1
- ARM-GOVERNOR×1
- PANEL-COMP-CONTROL×1
- 9214592145-7004Not stockedSPRING×1
- SPRING×1
- SPRING×1
- BOLT,5X18×2
- BOLT,5X30×1
- BOLT,6X35Replaced by 92154-2697×1
- CLAMP×2
- BOLT-FLANGED,6X12Replaced by 130AA0612×2
- SCREW-PAN,4X8Replaced by 214AA0408×2
- SCREW-PAN,4X12Replaced by 214AA0412×1
- SCREW-PAN,5X10Replaced by 214AA0510×1
- NUT-HEX,6MM×1
- WASHER-PLAIN,6MMReplaced by 411AA0600×1
