FH721V-AS07 4 Stroke Engine FH721V

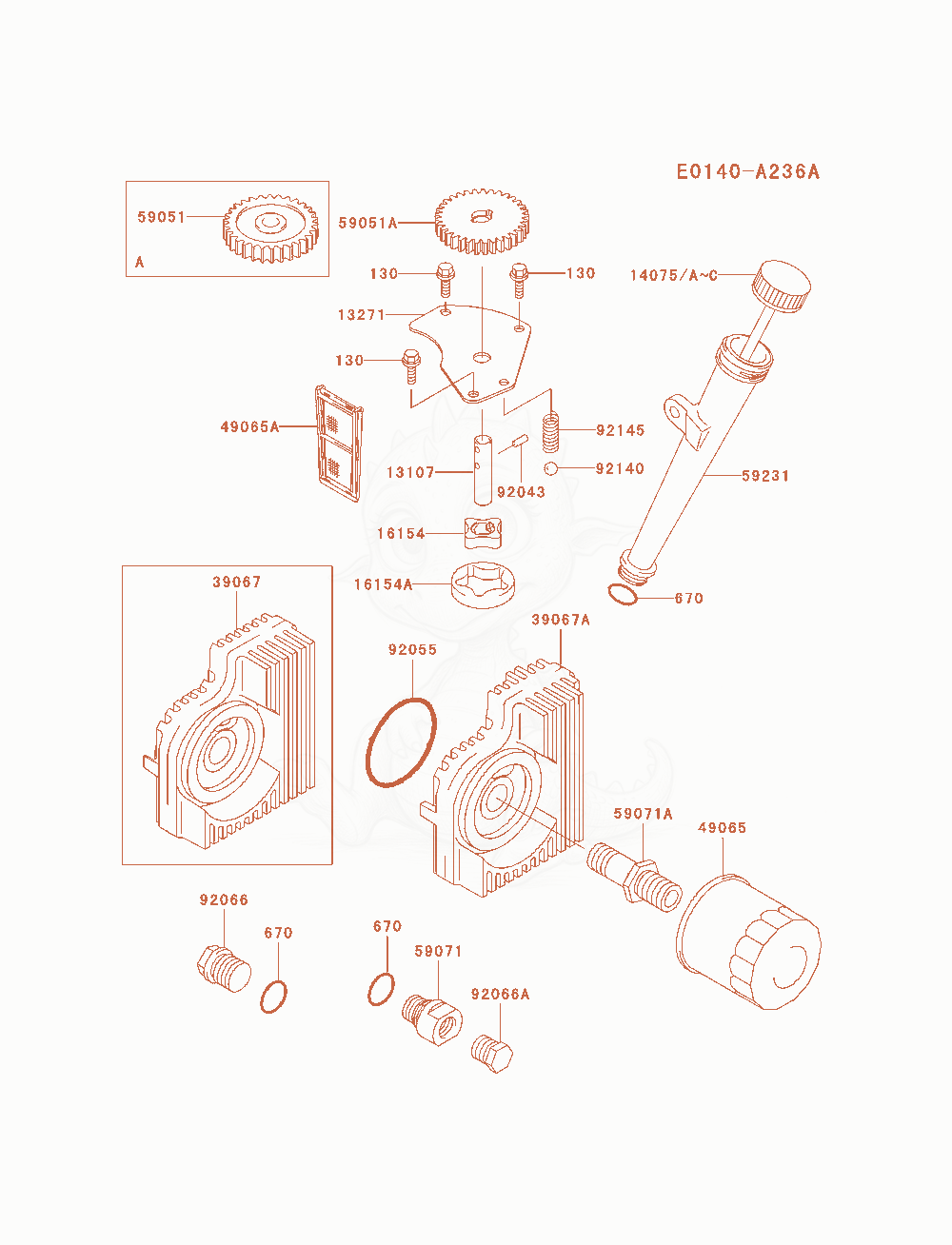

FH721V-AS07 Lubrication-Equipment Diagram
- 1310713107-0749Not stockedSHAFT×1
- PLATEReplaced by 13272-7071×1
- 1407514075-7008Not stockedCAP-ASSY×0
- 14075B14075-7008Not stockedCAP-ASSY×0
- 14075C14075-7008Not stockedCAP-ASSY×1
- ROTOR-PUMP,IN×1
- ROTOR-PUMP,OUT×1
- COOLER-OIL×0
- COOLER-OIL×1
- FILTER-OILReplaced by 49065-0734×1
- OIL FILTER SCREEN×1
- 5905159051-6001Not stockedGEAR-SPUR×1
- JOINT×1
- JOINTReplaced by 59071-0811×1
- FILLER×1
- 9204392043-7003Not stockedPIN×2
- RING-O×1
- 9206692066-7003Not stockedPLUG×1
- 92066A92066-0827Not stockedPLUG×1
- BALL,STEEL,13/32Replaced by 92140-0029×1
- 9214592145-7002Not stockedSPRING×1
- BOLT-FLANGED,6X12Replaced by 130AA0612×3
- O RING,16MM×3
