FH721V-AS07 4 Stroke Engine FH721V

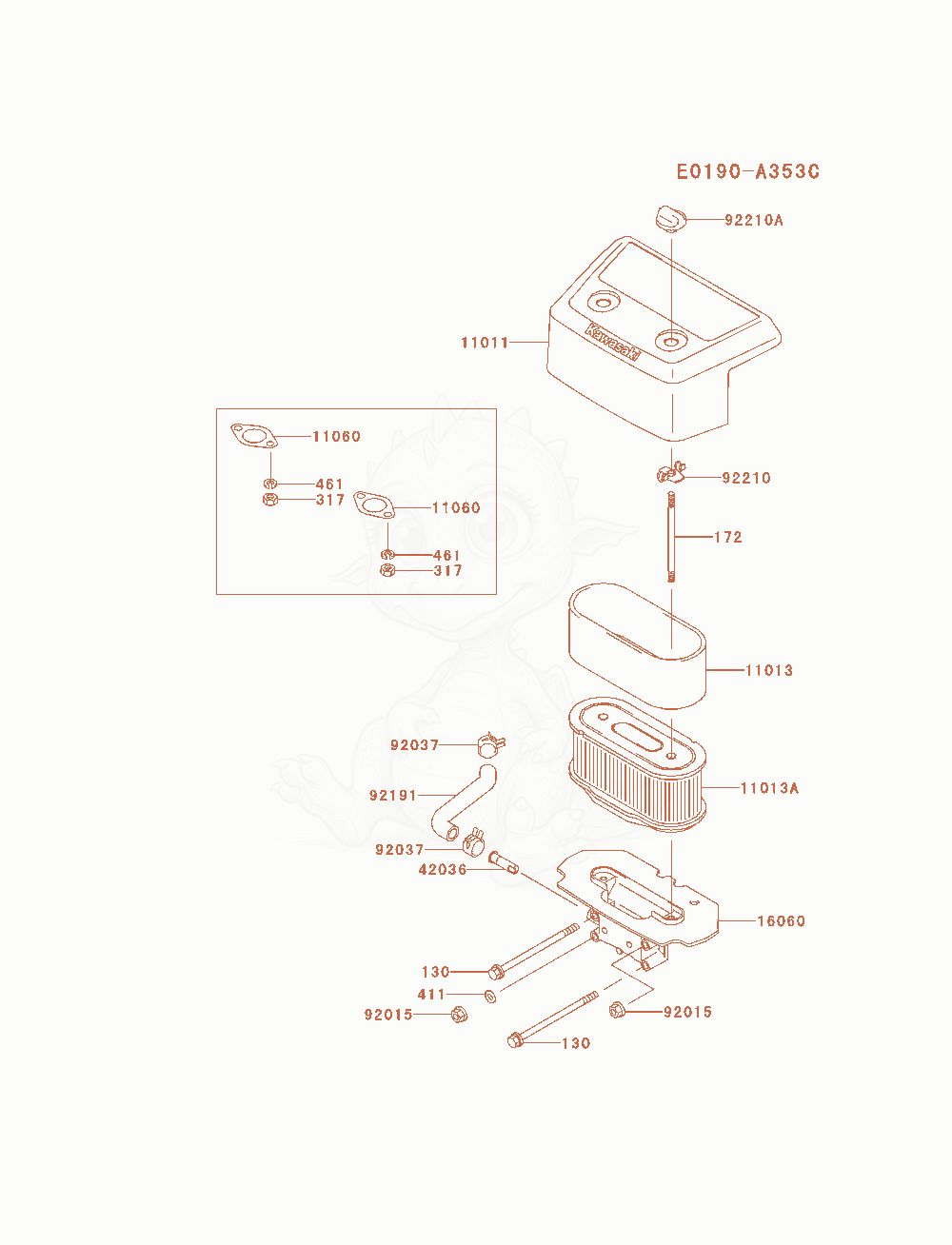

FH721V-AS07 Air-Filter / Muffler Diagram
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- GASKET,MUFFLER×2
- PIPE-INTAKE×1
- 4203642036-7002Not stockedSLEEVE×1
- NUT,FLANGED,6MM×2
- CLAMP×2
- 9219192191-7006Not stockedTUBE×1
- NUT×2
- CASE-AIR FILTER×2
- BOLT-FLANGED,6X105Replaced by 130AA06105×2
- BOLT-STUD,6X90Replaced by 172BA0690×2
- NUT-HEX-SMALL,8MM×4
- WASHER-PLAIN,6MMReplaced by 411AA0600×1
- WASHER-SPRING,8MM×4
