FH721D-ES01 4 Stroke Engine FH721D

FH721D-ES01 Lubrication-Equipment Diagram

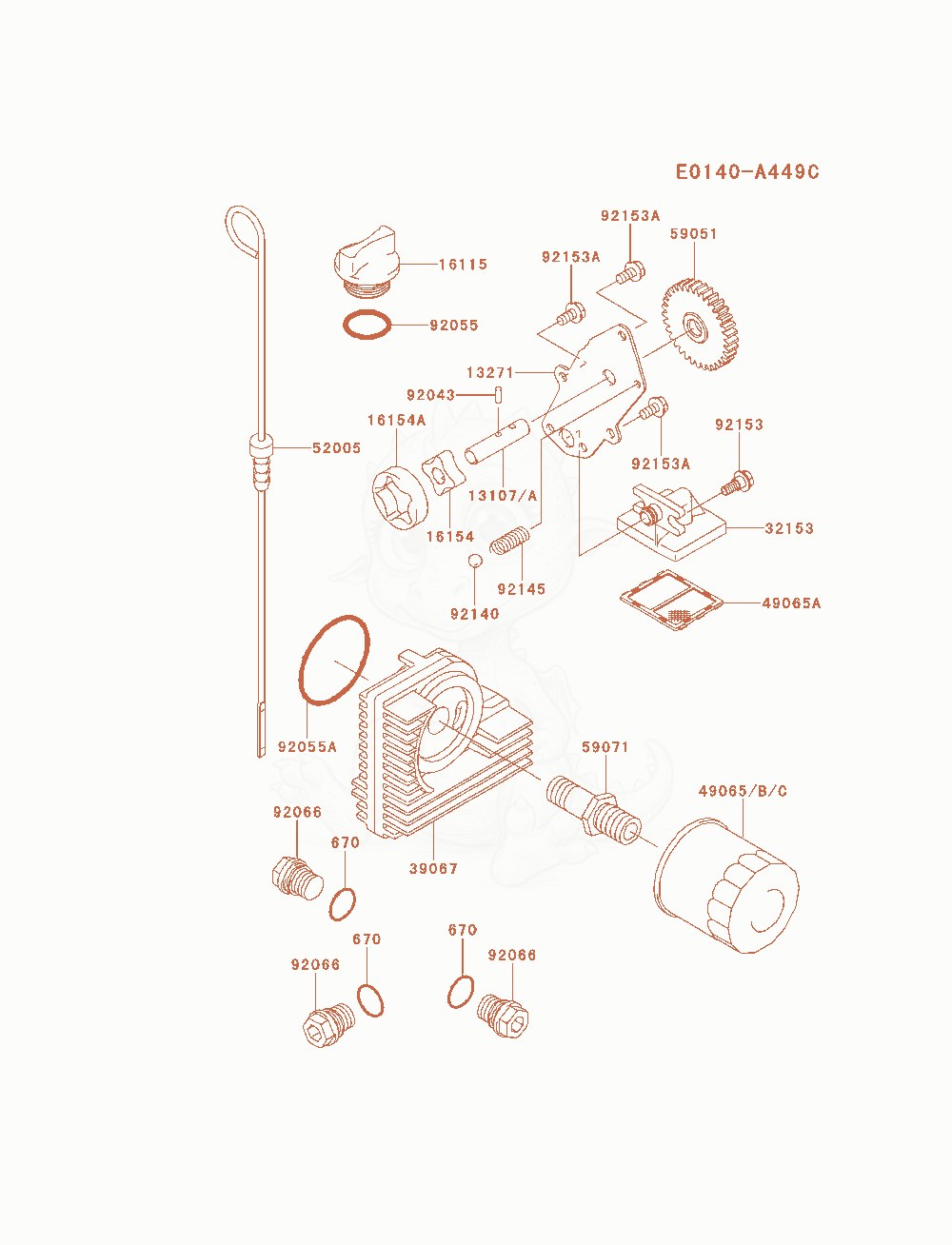

Exploded parts diagram of the Lubrication-Equipment of a Kawasaki FH721D-ES01 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1310713107-0749
    $1.50
    SHAFTReplaced by 13107-1554×1
  • 13107A13107-0749
    $1.50
    SHAFTReplaced by 13107-1554×0
  • 1327113271-7014
    $3.88
    PLATE×1
  • 1611516115-7001Not stocked
    CAP-OIL FILLER×1
  • 1615416154-2053
    $11.42
    ROTOR-PUMP,IN×1
  • 16154A16154-2054
    $8.35
    ROTOR-PUMP,OUT×1
  • 3215332153-7002
    $4.14
    PIPEReplaced by 32156-0518×1
  • 3906739067-7008
    $77.47
    COOLER-OIL×1
  • 49065A49065-0717
    $3.25
    FILTER-OIL×1
  • 49065B49065-0724Not stocked
    FILTER-OIL×1
  • 5200552005-7003
    $21.26
    GAUGE×1
  • 5905159051-7011
    $57.87
    GEAR-SPUR×1
  • 5907159071-0742
    $9.62
    JOINTReplaced by 59071-0811×1
  • 9204392043-7003Not stocked
    PIN×2
  • 9205592055-7004
    $0.67
    RING-O×1
  • 92055A92055-7006
    $1.90
    RING-O×1
  • 9206692066-7003Not stocked
    PLUG×3
  • 9214092140-7003
    $1.10
    BALL,STEEL,13/32Replaced by 92140-0029×1
  • 9214592145-7002Not stocked
    SPRING×1
  • 9215392153-7007
    $3.78
    BOLT,FLANGED,6X16×2
  • 92153A92153-7043Not stocked
    BOLT,6X12×3
  • 670670D2016
    $5.83
    O RING,16MM×3
