FH721D-ES01 4 Stroke Engine FH721D

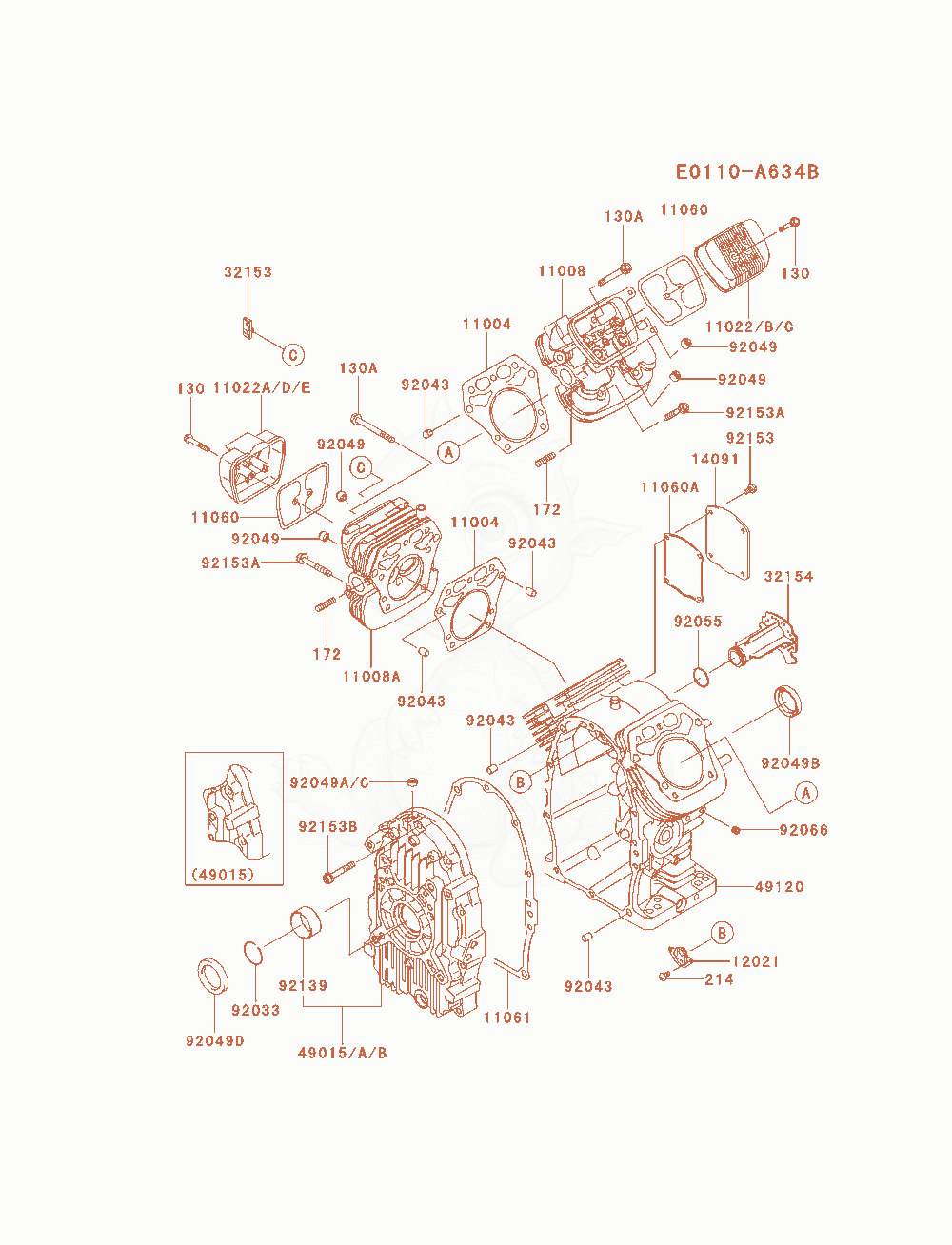

FH721D-ES01 Cylinder / Crankcase Diagram
- GASKET-HEAD×2
- HEAD-COMP-CYLINDER,#2×1
- HEAD-COMP-CYLINDER,#1×1
- CASE-ROCKER×1
- CASE-ROCKERReplaced by 11022-0049×1
- GASKET,ROCKER CASE×2
- GASKET,BREATHER×1
- 1106111061-7047Not stockedGASKET,CRANKCASE×1
- VALVE-ASSY-REED×1
- COVER×1
- PIPE×1
- PIPEReplaced by 32155-4082×1
- COVER-CRANKCASEReplaced by 49015-0733×1
- CRANKCASE-COMP×1
- RING-SNAP×1
- PIN×6
- SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×4
- 92049A92049-7005Not stockedSEAL-OIL,SO 8X14X5 HS×0
- SEAL-OIL,SD 35X48X8 R HS×1
- SEAL-OIL,SO 8X14X5 HS×1
- SEAL-OIL,SD-40-55-8-L-HS×1
- RING-O,25X30.2X2.62×1
- 9206692066-7026Not stockedPLUG×1
- 9213992139-7009Not stockedBUSHING×1
- 9215392153-7043Not stockedBOLT,6X12×4
- BOLT,8X50×8
- BOLT,8X50×10
- BOLT-FLANGED,6X40×4
- BOLT-FLANGED,8X75×2
- BOLT-STUD,8X18×4
- SCREW-PAN+-,4X8×2
