FH680D-ES08 4 Stroke Engine FH680D

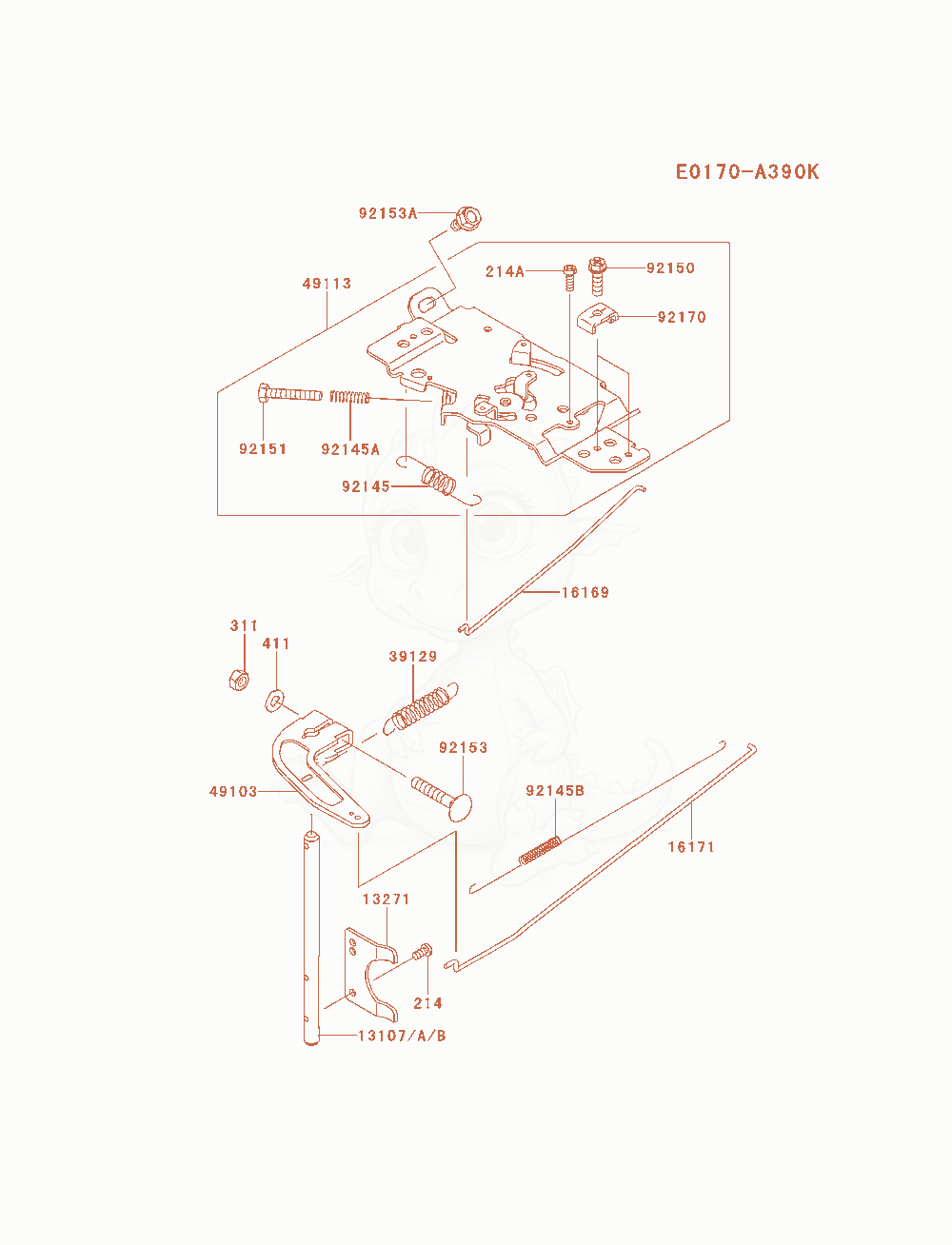

FH680D-ES08 Control-Equipment Diagram
- 13107A13107-7055Not stockedSHAFT×1
- PLATE×1
- 1616916169-7008Not stockedLINK-CHOKE×1
- LINK×1
- SPRING-GOVERNOR×1
- ARM-GOVERNOR×1
- PANEL-COMP-CONTROL×1
- 9214592145-7004Not stockedSPRING×1
- SPRING×1
- SPRING×1
- BOLT,5X18×2
- BOLT,5X30×1
- BOLT,6X35Replaced by 92154-2697×1
- 92153A92153-7043Not stockedBOLT,6X12×2
- CLAMP×2
- SCREW-PAN+-,4X8×2
- SCREW-PAN,4X12Replaced by 214AA0412×1
- NUT-HEX,6MM×1
- WASHER-PLAIN,6MM×1
