FH680D-ES08 4 Stroke Engine FH680D

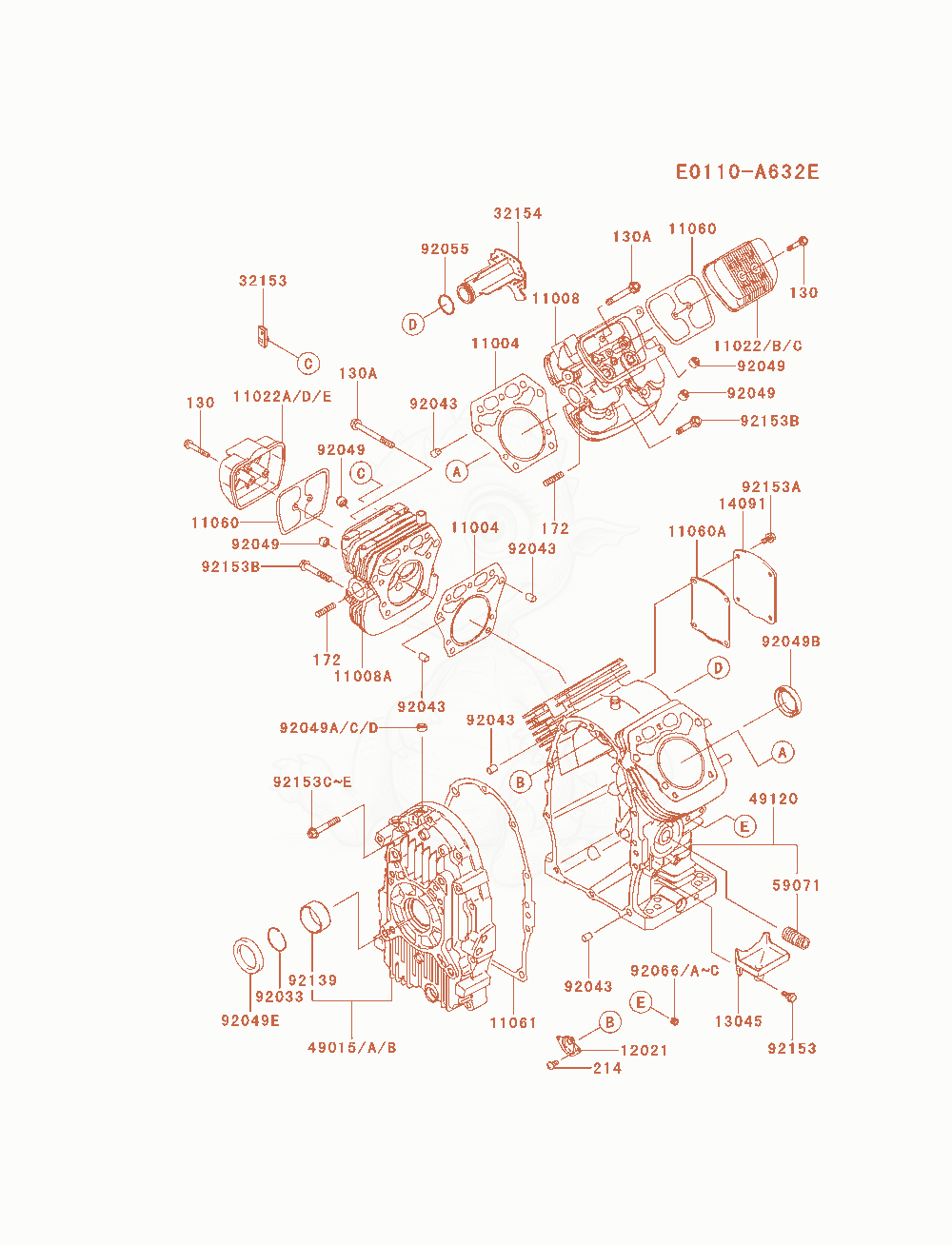

FH680D-ES08 Cylinder / Crankcase Diagram

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FH680D-ES08 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1100411004-7006
    $24.14
    GASKET-HEAD×2
  • 1100811008-7023
    $246.17
    HEAD-COMP-CYLINDER,#2×1
  • 11008A11008-7024
    $245.57
    HEAD-COMP-CYLINDER,#1×1
  • 11022B11022-0728
    $13.42
    CASE-ROCKER×1
  • 11022D11022-7030
    $36.70
    CASE-ROCKERReplaced by 11022-0049×1
  • 1106011060-7013
    $10.26
    GASKET,ROCKER CASE×2
  • 11060A11060-7014
    $5.50
    GASKET,BREATHER×1
  • 1106111061-7047Not stocked
    GASKET,CRANKCASE×1
  • 1202112021-7002
    $4.28
    VALVE-ASSY-REED×1
  • 1304513045-7001
    $3.57
    RECEIVER-OIL×1
  • 1409114091-7004
    $3.21
    COVER×1
  • 3215332153-7003
    $1.79
    PIPE×1
  • 3215432154-7021
    $14.72
    PIPEReplaced by 32155-4082×1
  • 49015A49015-7086
    $161.89
    COVER-CRANKCASEReplaced by 49015-0733×1
  • 4912049120-7084Not stocked
    CRANKCASE-COMP×1
  • 5907159071-2079
    $5.31
    JOINT×1
  • 9203392033-7004
    $0.85
    RING-SNAP×1
  • 9204392043-7001
    $0.51
    PIN×6
  • 9204992049-7001
    $7.19
    SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×4
  • 92049A92049-7005Not stocked
    SEAL-OIL,SO 8X14X5 HS×0
  • 92049B92049-7010
    $5.54
    SEAL-OIL,SD 35X48X8 R HS×1
  • 92049D92049-7019
    $6.87
    SEAL-OIL,SO 8X14X5 HS×1
  • 92049E92049-7022
    $4.65
    SEAL-OIL,SD-40-55-8-L-HS×1
  • 9205592055-7022
    $0.92
    RING-O,25X30.2X2.62×1
  • 92066A92066-7026Not stocked
    PLUG×1
  • 9213992139-7009Not stocked
    BUSHING×1
  • 9215392153-7007
    $3.78
    BOLT,FLANGED,6X16×2
  • 92153A92153-7043Not stocked
    BOLT,6X12×4
  • 92153B92153-7054
    $2.37
    BOLT,8X50×8
