FH680D-ES01 4 Stroke Engine FH680D

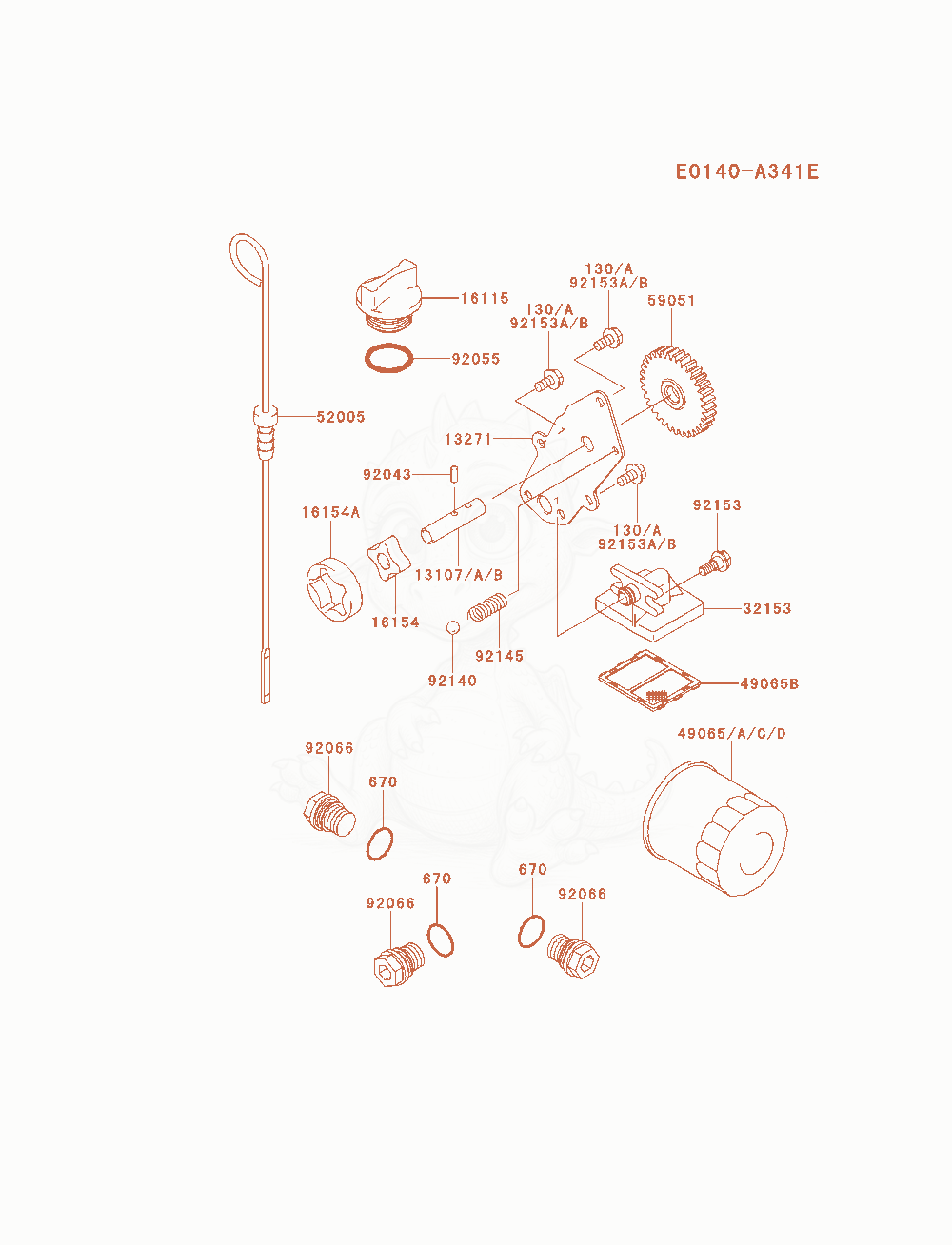

FH680D-ES01 Lubrication-Equipment Diagram
- O RING,16MM×3
- SHAFTReplaced by 13107-1554×1
- PLATE×1
- 1611516115-7001Not stockedCAP-OIL FILLER×1
- ROTOR-PUMP,IN×1
- ROTOR-PUMP,OUT×1
- PIPEReplaced by 32156-0518×1
- FILTER-OIL×1
- 49065C49065-0724Not stockedFILTER-OIL×1
- GAUGE×1
- GEAR-SPUR×1
- 9204392043-7003Not stockedPIN×2
- RING-O×1
- 9206692066-7003Not stockedPLUG×3
- BALL,STEEL,13/32Replaced by 92140-0029×1
- 9214592145-7002Not stockedSPRING×1
- BOLT,FLANGED,6X16×2
- 92153A92153-7043Not stockedBOLT,6X12×3
