FH680D-ES01 4 Stroke Engine FH680D

FH680D-ES01 Valve / Camshaft Diagram

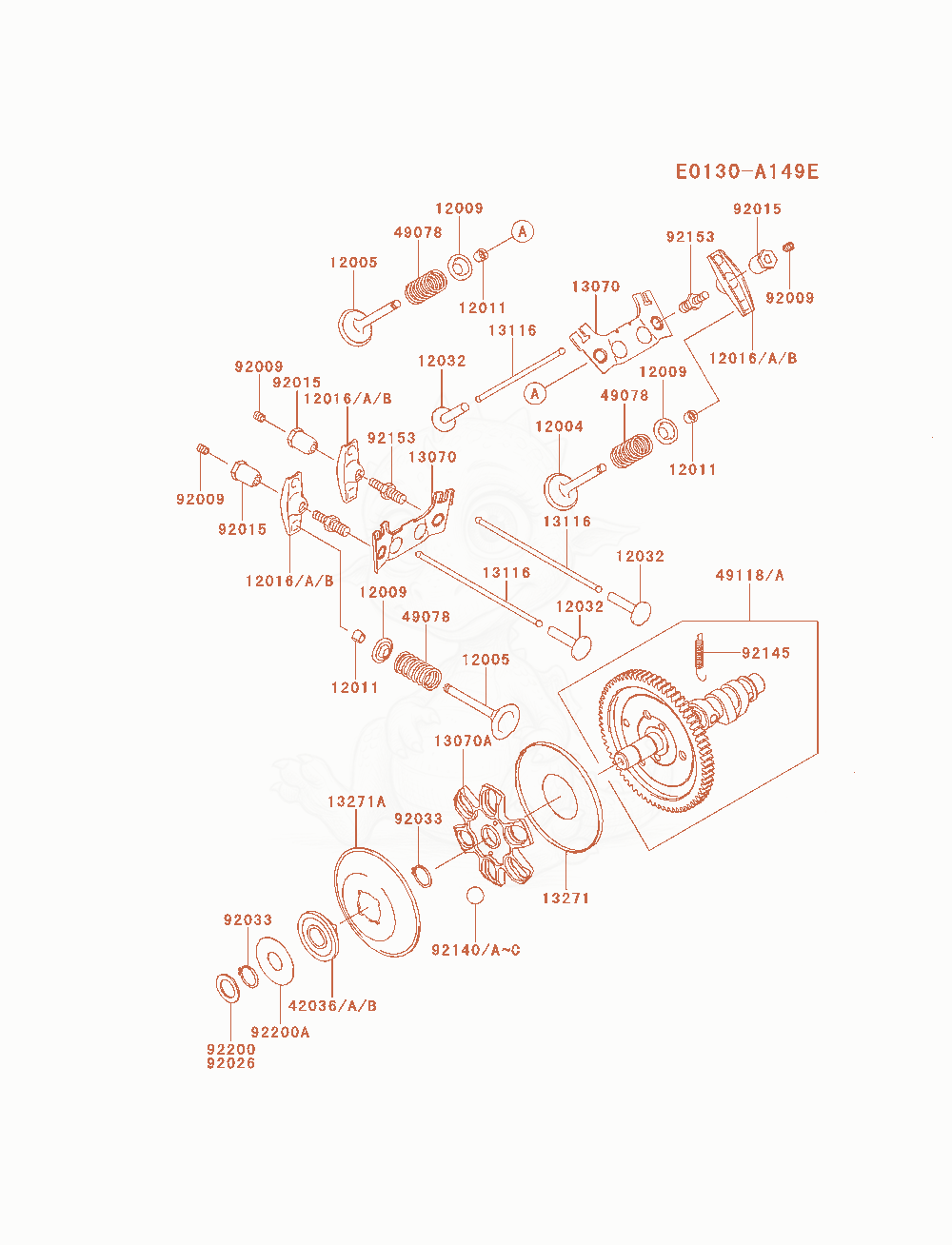

Exploded parts diagram of the Valve / Camshaft of a Kawasaki FH680D-ES01 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1200412004-7002
    $16.55
    VALVE-INTAKE×2
  • 1200512005-7004
    $38.04
    VALVE-EXHAUST×2
  • 1200912009-7001
    $2.17
    RETAINER-VALVE SPRING×4
  • 1201112011-2056
    $6.85
    COLLET×8
  • 12016A12016-7007
    $7.02
    ARM-ROCKER×4
  • 1203212032-7001
    $7.78
    TAPPET×4
  • 1307013070-7007
    $4.19
    GUIDE×2
  • 13070A13070-7008
    $5.79
    GUIDEReplaced by 13070-1578×1
  • 1311613116-7002
    $7.38
    ROD-PUSH×4
  • 1327113271-7007Not stocked
    PLATE×1
  • 13271A13271-7021Not stocked
    PLATE,GOVERNOR×1
  • 42036A42036-7010
    $4.92
    SLEEVEReplaced by 42036-0907×1
  • 4907849078-7002
    $5.83
    SPRING-ENGINE VALVE,IN×4
  • 49118A49118-7020
    $80.02
    CAMSHAFT-COMP×1
  • 9200992009-2341
    $2.12
    SCREW×4
  • 9201592015-2253
    $3.65
    NUT×4
  • 9202692026-7015
    $1.56
    SPACER,16.3X25X1.37×1
  • 9203392033-7001Not stocked
    RING-SNAP×2
  • 92140B92140-7005
    $0.92
    BALLReplaced by 92140-0035×6
  • 9214592145-7001Not stocked
    SPRING×1
  • 9215392153-7019Not stocked
    BOLT×4
  • 92200A92200-7009Not stocked
    WASHER,16X42X0.91×1
