FH601D-AS01 4 Stroke Engine FH601D

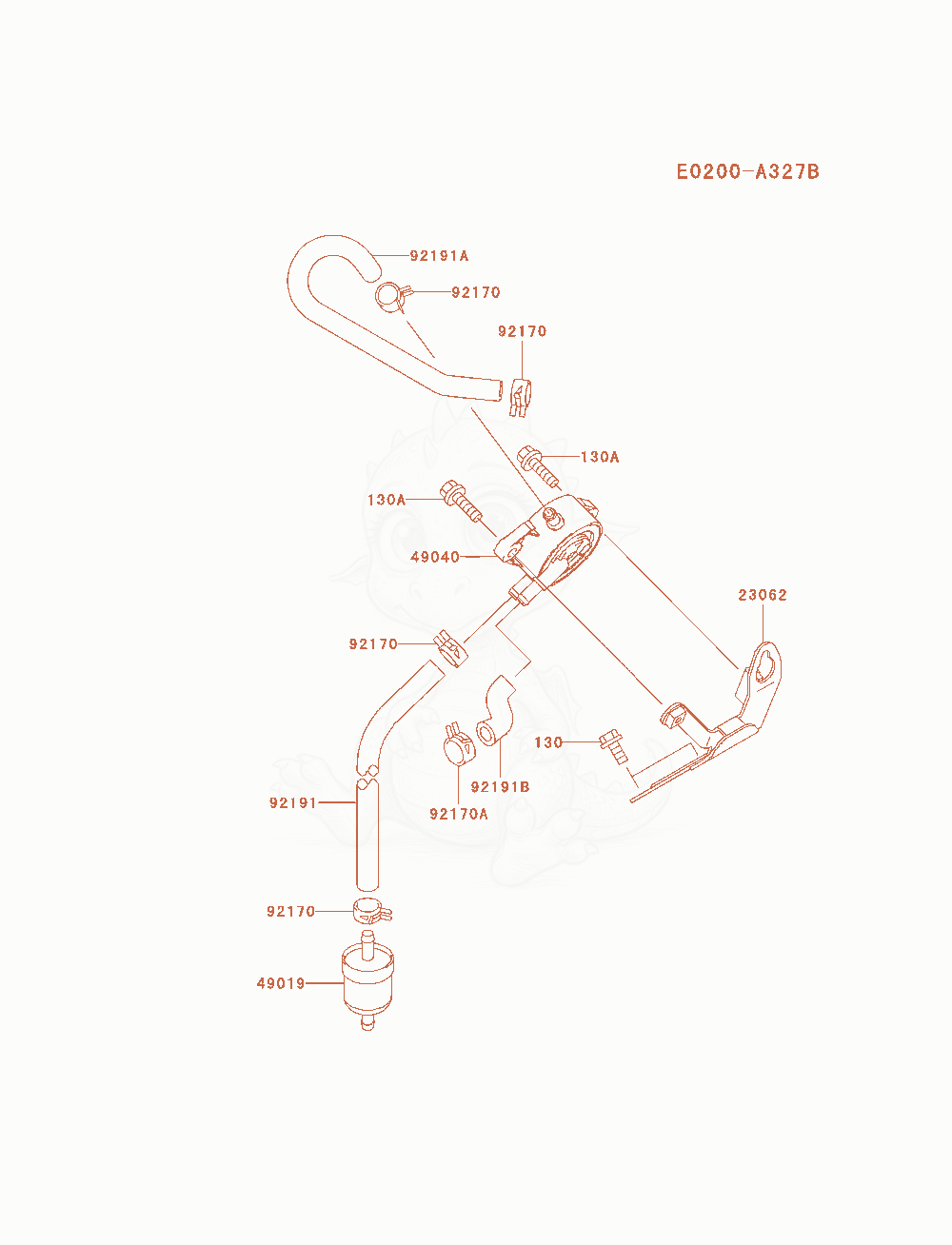

FH601D-AS01 Fuel-Tank / Fuel-Valve Diagram

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FH601D-AS01 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2306223062-7019-9HPrice
    BRACKET-COMPReplaced by 23062-1560×1
  • 4901949019-0027Price
    FILTER-FUELReplaced by 49019-0031×1
  • 4904049040-7001Not stocked
    PUMP-FUEL×1
  • 9217092170-2088Not stocked
    CLAMP×4
  • 92170A92170-7003Price
    CLAMP×1
  • 9219192191-7003Not stocked
    TUBE,6.35X12.7X160×1
  • 92191A92191-7012Price
    TUBE×1
  • 92191B92191-7027Price
    TUBE×1
  • 130130B0616Price
    BOLT-FLANGED,6X16Replaced by 130AA0616×2
  • 130A130B0620Price
    BOLT-FLANGED,6X20Replaced by 130AA0620×2
