FH601D-AS01 4 Stroke Engine FH601D

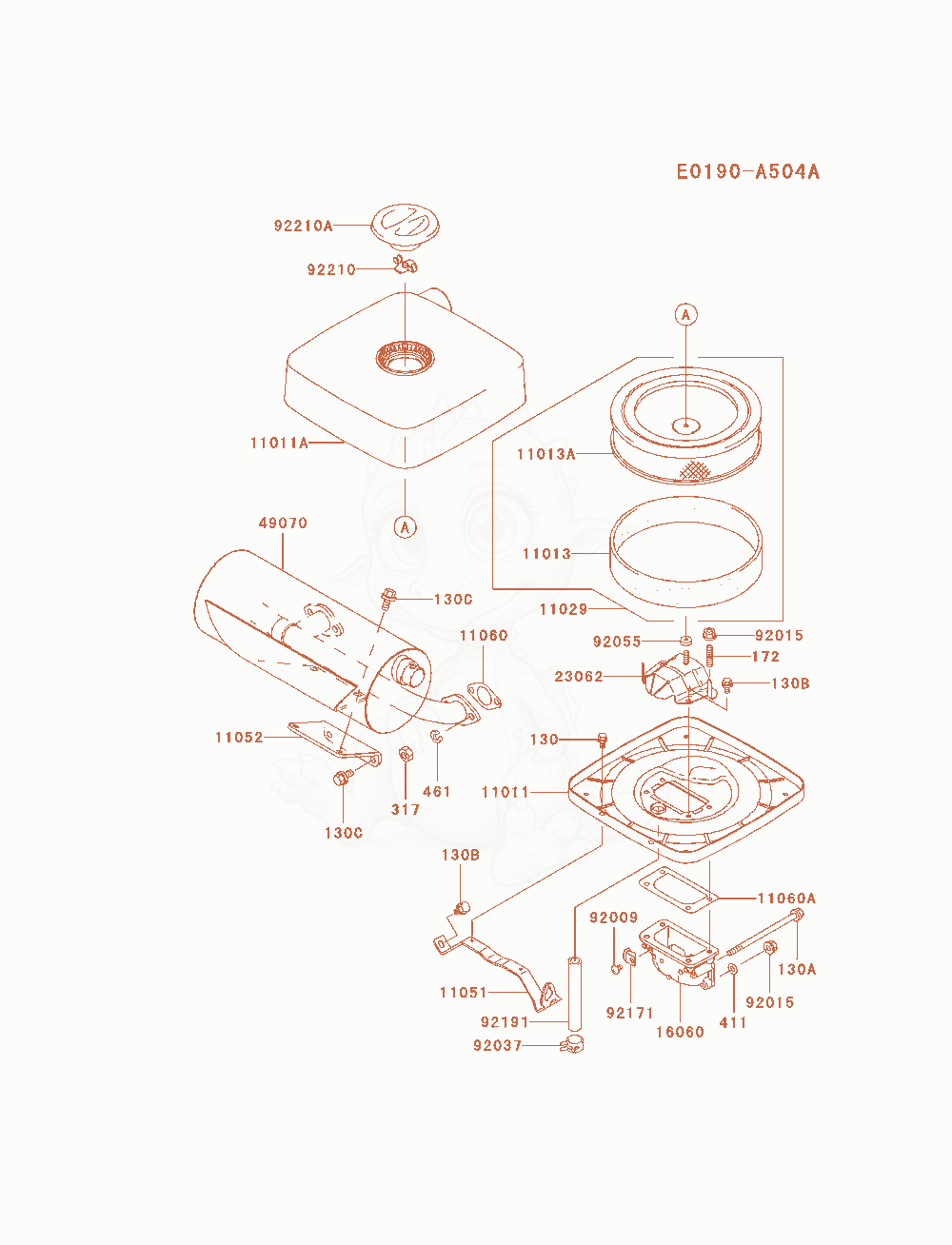

FH601D-AS01 Air-Filter / Muffler Diagram
- NUT,FLANGED,6MM×4
- CASE-AIR FILTER×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTERReplaced by 11029-0022×1
- BRACKET×1
- 1105211052-7001Not stockedBRACKET×1
- GASKET,MUFFLER×2
- GASKET×1
- 1606016060-7002Not stockedPIPE-INTAKE×1
- BRACKET-COMP×1
- 4907049070-7009Not stockedMUFFLER-COMP×1
- SCREW,5X8×1
- CLAMP×1
- RING-O×1
- CLAMP×1
- TUBE,12X18X115×1
- NUT×1
- 92210A92210-7010Not stockedNUT×1
- BOLT-FLANGED,5X10Replaced by 130AA0510×2
- BOLT-FLANGED,6X105Replaced by 130AA06105×2
- BOLT-FLANGED,6X12Replaced by 130AA0612×4
- BOLT-FLANGED,8X16Replaced by 130AA0816×4
- BOLT-STUD,6X12×2
- NUT-HEX-SMALL,8MM×4
- WASHER-PLAIN,6MMReplaced by 411AA0600×1
- WASHER-SPRING,8MM×4
