FXT00V-HS00 4 Stroke Engine FXT00V

FXT00V-HS00 Lubrication-Equipment Diagram

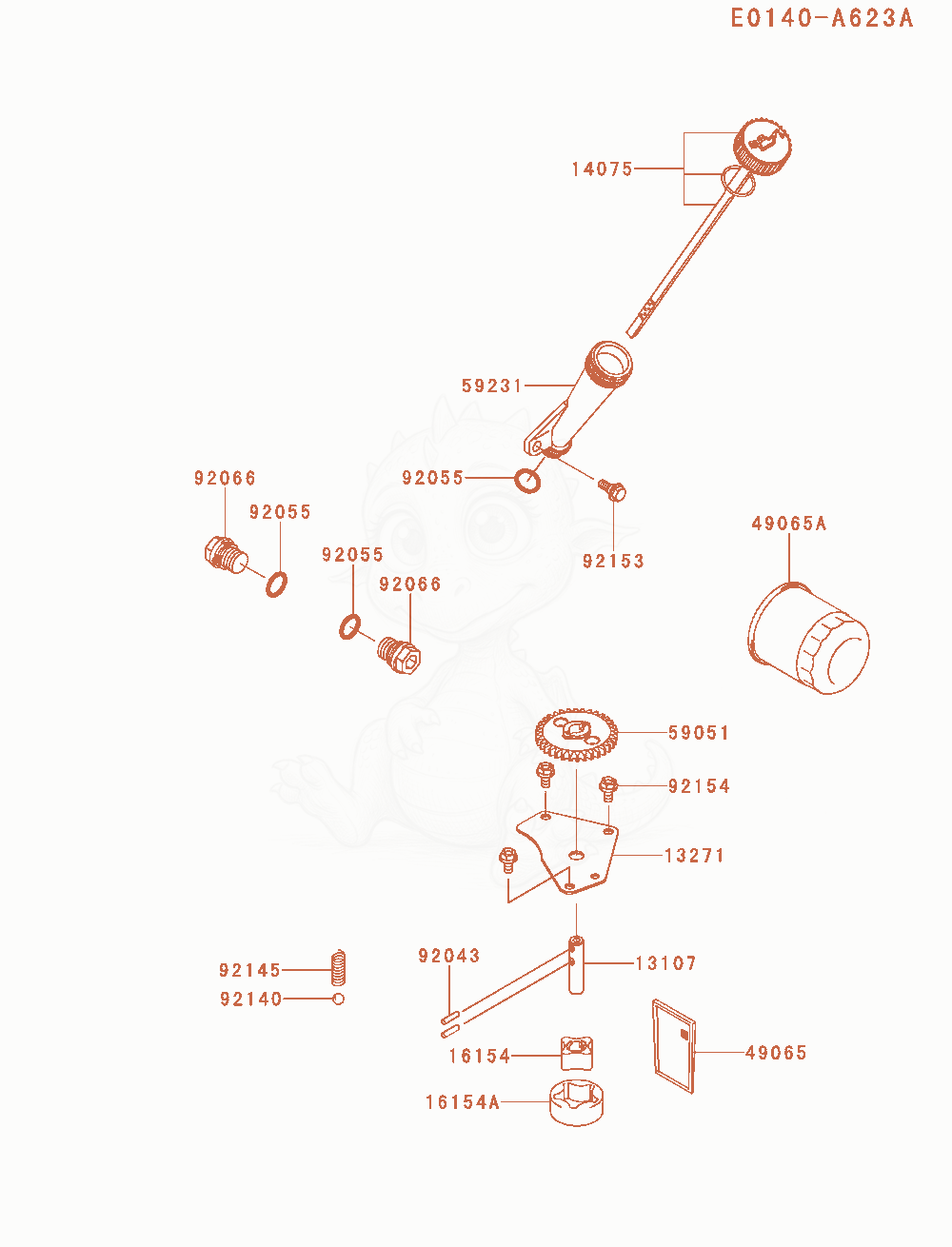

Exploded parts diagram of the Lubrication-Equipment of a Kawasaki FXT00V-HS00 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1310713107-0858Not stocked
    SHAFT,OIL PUMP×1
  • 1327113271-7034
    $3.37
    PLATE,ROTOR-PUMP×1
  • 1407514075-0050Not stocked
    CAP-ASSY×1
  • 1615416154-7007
    $8.11
    ROTOR-PUMP,IN×1
  • 16154A16154-7008
    $18.53
    ROTOR-PUMP,OUT×1
  • 4906549065-7004Not stocked
    FILTER-OIL×1
  • 49065A49065-0724Not stocked
    FILTER-OIL×1
  • 5905159051-7026
    $53.07
    GEAR-SPUR,OIL-PUMP×1
  • 5923159231-0748Not stocked
    FILLER×1
  • 9204392043-7003Not stocked
    PIN×2
  • 9205592055-0892
    $0.79
    RING-O,15.8X2.4×3
  • 9206692066-0774
    $4.56
    PLUG×2
  • 9214092140-7003
    $1.10
    BALL,STEEL,13/32Replaced by 92140-0029×1
  • 9214592145-7046
    $0.86
    SPRING×1
  • 9215392153-7007
    $3.78
    BOLT,FLANGED,6X16×1
  • 9215492154-2938
    $2.74
    BOLT,6X12×3
