FXT00V-AS21 4 Stroke Engine FXT00V

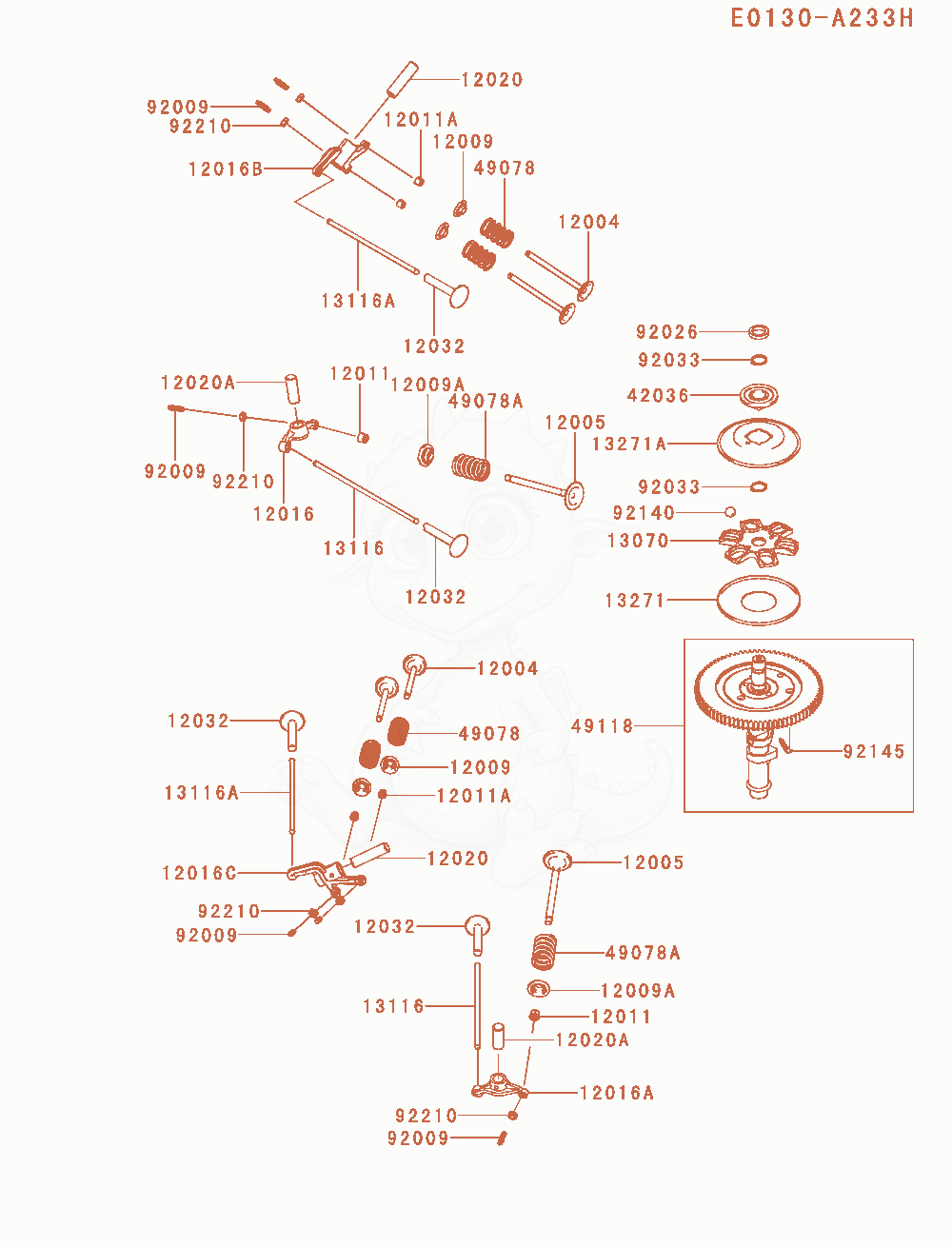

FXT00V-AS21 Valve / Camshaft(As21) Diagram
- VALVE-INTAKE×4
- VALVE-EXHAUST×2
- RETAINER-VALVE SPRING×4
- RETAINER-VALVE SPRING×2
- COLLET×4
- COLLET×8
- ARM-ROCKER,#1,EX×1
- ARM-ROCKER,#2,EX×1
- ARM-ROCKER,#1,IN×1
- ARM-ROCKER,#2,IN×1
- SHAFT-ROCKER,INReplaced by 12020-0020×2
- SHAFT-ROCKER,EXReplaced by 12020-0022×2
- TAPPET×4
- GUIDEReplaced by 13070-1577×1
- ROD-PUSH×2
- ROD-PUSH×2
- 1327113271-7007Not stockedPLATE×1
- 13271A13271-7021Not stockedPLATE,GOVERNOR×1
- SLEEVEReplaced by 42036-0907×1
- SPRING-ENGINE VALVE,INReplaced by 49078-0838×4
- SPRING-ENGINE VALVE,EX×2
- CAMSHAFT-COMPReplaced by 49118-0999×1
- SCREW,VALVE ADJUST×6
- SPACER×1
- RING-SNAP×2
- BALLReplaced by 92140-0035×6
- SPRING×1
- NUT,VALVE ADJUST LOCK×6
