FXT00V-AS18 4 Stroke Engine FXT00V

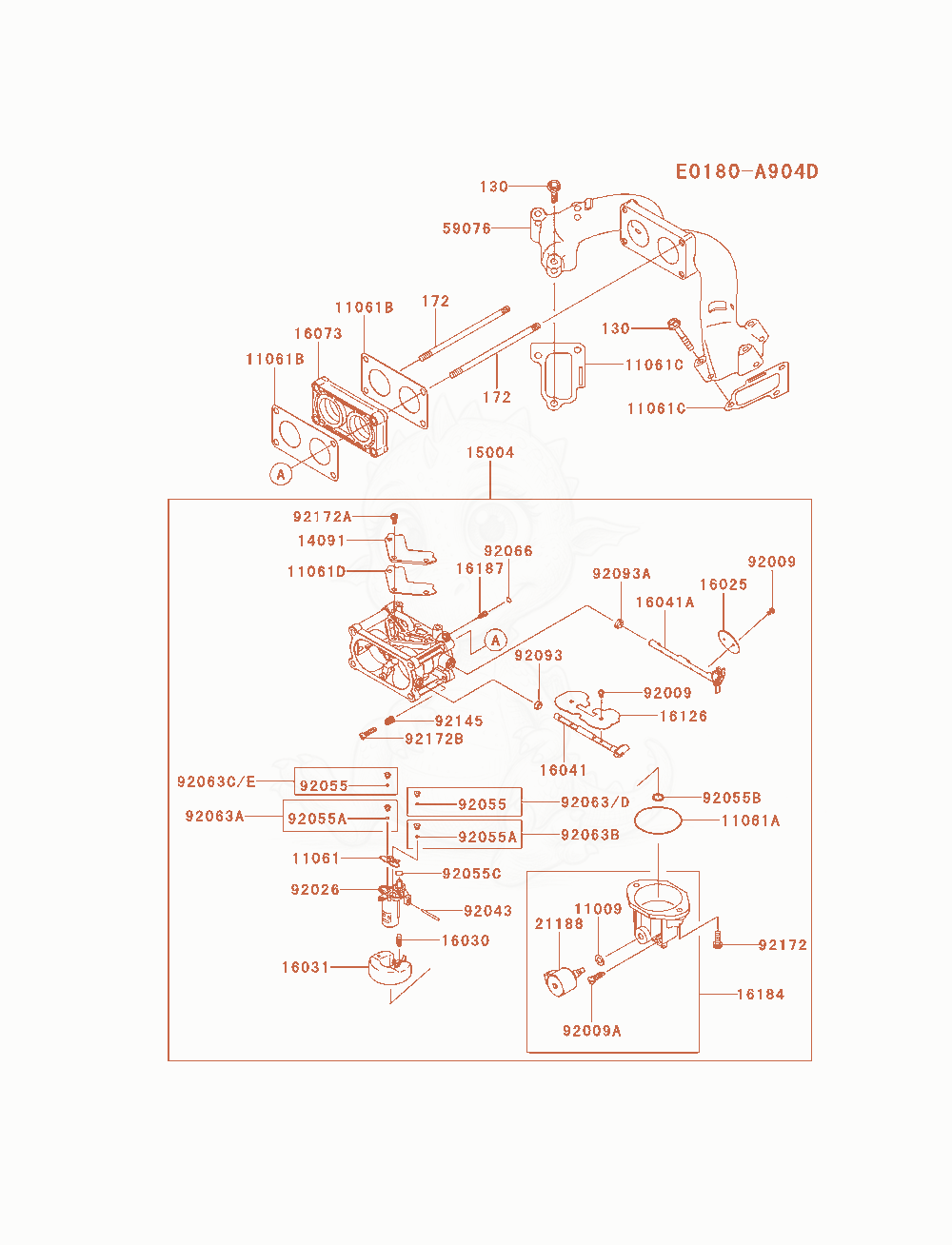

FXT00V-AS18 Carburetor(1 / 2) Diagram
- GASKET,SCREW-CARBURETOR×1
- GASKET,CARB SPACER×1
- GASKET,CARBURETOR×1
- GASKET,INSULATOR×2
- GASKET,MANIFOLD×2
- GASKET×1
- COVER×1
- CARBURETOR-ASSY×1
- VALVE-THROTTLE×2
- VALVE-FLOAT×1
- 1603116031-7003Not stockedFLOAT×1
- SHAFT-CARBURETOR,CHOCK×1
- SHAFT-CARBURETOR,THRO×1
- INSULATORReplaced by 16073-1129×1
- VALVE,CHOCK×1
- CHAMBER-ASSY-FLOAT×1
- NEEDLE-JET×2
- SOLENOID×1
- MANIFOLD-INTAKE×1
- SCREW×6
- SCREW,DRAIN×1
- SPACER×1
- PIN×1
- RING-O×AR
- RING-O×2
- RING-O×1
- RING-O×1
- JET-MAIN,#134,6560FT×1
- JET-MAIN,#134,6560FT×1
- JET-MAIN,#140×1
- JET-MAIN,#131,3280FT×1
- JET-MAIN,#137,3280FT×1
- JET-MAIN,#128,6560FT×1
- PLUG,EXPANSION×2
- SEAL,D=5.9×1
- SEAL,D=6.9×1
- SPRING×1
- SCREW,M5×2
- SCREW,M4×3
- SCREW,THROTTLE ADJUST×1
- BOLT-FLANGED,6X35×6
- BOLT-STUD,6X120×2
