FXT00V-AS17 4 Stroke Engine FXT00V

FXT00V-AS17 Electric-Equipment Diagram

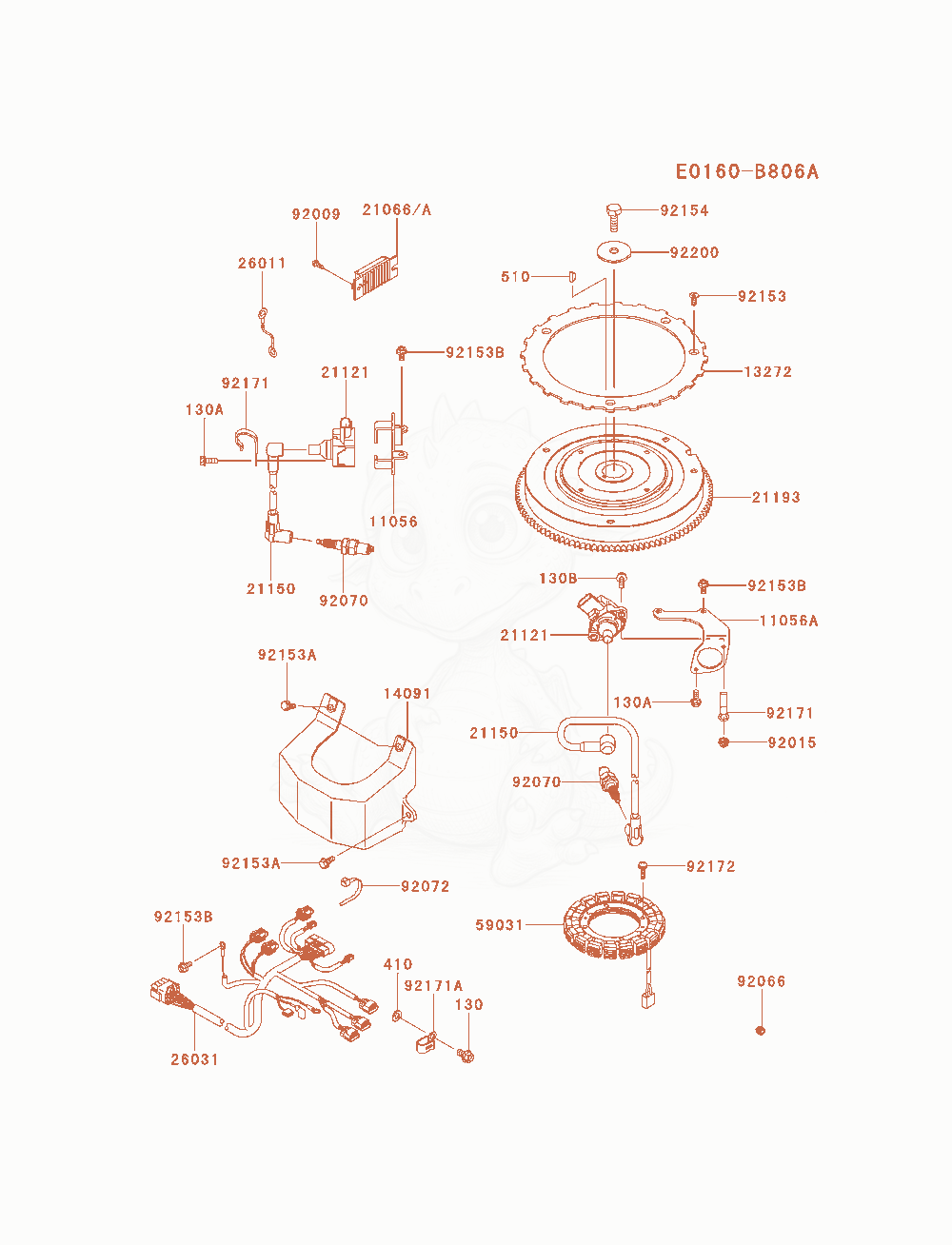

Exploded parts diagram of the Electric-Equipment of a Kawasaki FXT00V-AS17 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1105611056-3916
    $17.00
    BRACKET,#1 IGNITION×1
  • 11056A11056-4114
    $10.88
    BRACKET,#2 IGNITION×1
  • 1327213272-1731
    $31.17
    PLATE×1
  • 1409114091-7065Not stocked
    COVER,CONNECTOR×1
  • 2106621066-0740
    $62.48
    REGULATOR-VOLTAGEReplaced by 21066-0810×1
  • 21066A21066-7011
    $70.15
    REGULATOR-VOLTAGEReplaced by 21066-0816×0
  • 2112121121-0719Not stocked
    COIL-IGNITION×2
  • 2115021150-0005
    $83.00
    CORD-ASSY×2
  • 2119321193-7057Not stocked
    FLYWHEEL-ASSY×1
  • 2601126011-2234
    $2.31
    WIRE-LEAD×1
  • 2603126031-1643
    $584.33
    HARNESS×1
  • 5903159031-7017
    $112.81
    COIL-CHARGING×1
  • 9200992009-2308
    $0.32
    SCREW×2
  • 9201592015-1367
    $3.67
    NUT,FLANGED,6MM×1
  • 9206692066-0762Not stocked
    PLUG×1
  • 920704006
    $3.04
    SPK PLG BPR5ES SOLIDReplaced by BPR5ES×2
  • 9207292072-7003
    $1.12
    BAND×4
  • 9215392153-0848
    $3.06
    BOLT,6X15×4
  • 92153A92153-7007
    $3.78
    BOLT,FLANGED,6X16×3
  • 92153B92153-7043Not stocked
    BOLT,6X12×5
  • 9215492154-7003
    $4.36
    BOLT,12X30×1
  • 9217192171-7005
    $9.02
    CLAMP×2
  • 92171A92171-7008Not stocked
    CLAMP×1
  • 9217292172-7018
    $0.30
    SCREW,5X20×4
  • 9220092200-7040Not stocked
    WASHER,12.2X46X3×1
  • 130130AA0814Not stocked
    BOLT-FLANGED,8X14×1
  • 130A130BA0616Not stocked
    BOLT-FLANGED,6X16×3
  • 130B130BA0620
    $1.59
    BOLT-FLANGED,6X20×1
  • 410410AA0800
    $0.80
    WASHER-PLAIN-SMALL,8MM×1
  • 510510A5100
    $2.96
    KEY-WOODRUFF×1
