FXT00V-AS15 4 Stroke Engine FXT00V

FXT00V-AS15 Cylinder / Crankcase Diagram

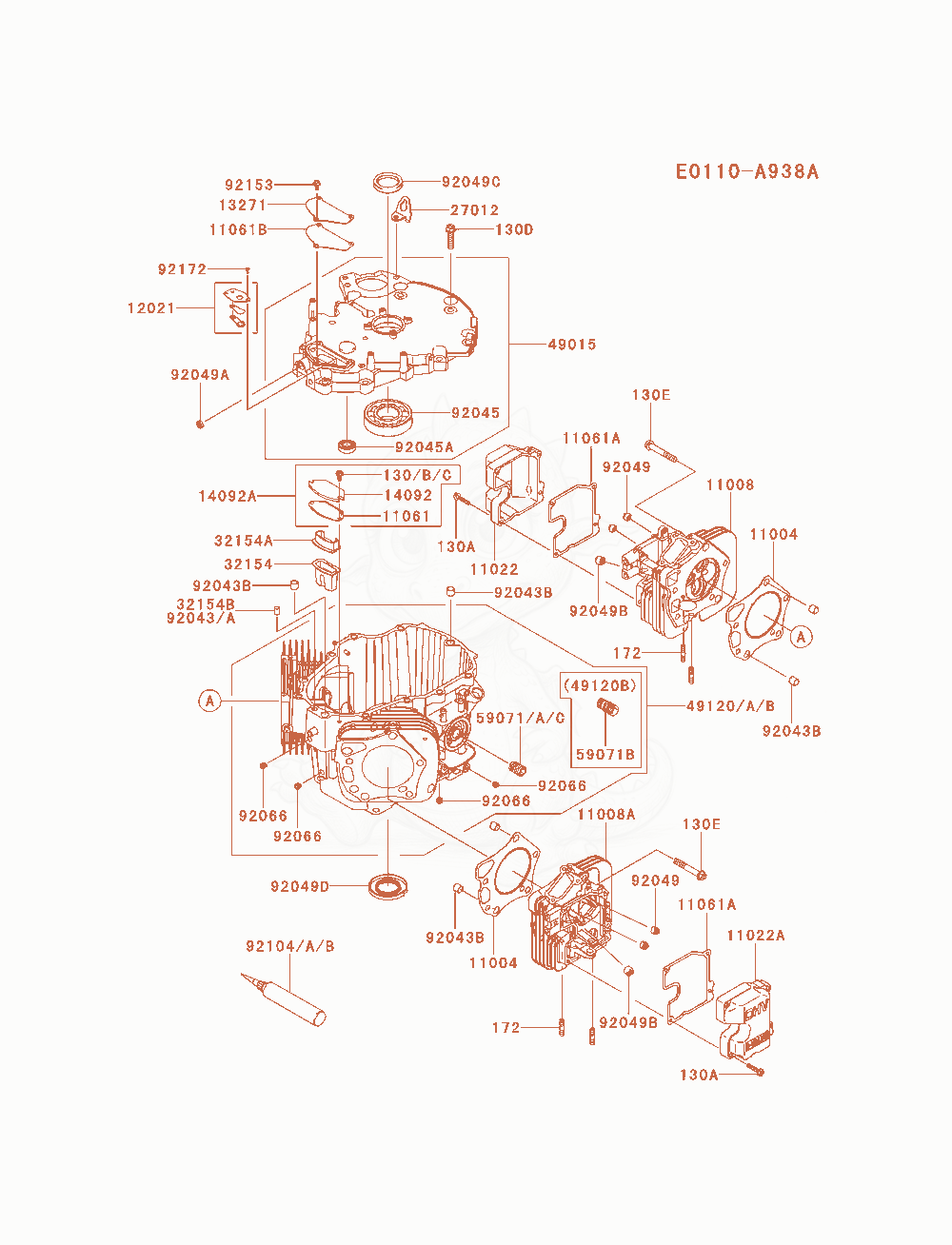

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FXT00V-AS15 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 130130AA0616
    $0.45
    BOLT-FLANGED,6X16×0
  • 130A130AA0630
    $1.45
    BOLT-FLANGED,6X30×8
  • 130C130BA0616Not stocked
    BOLT-FLANGED,6X16×2
  • 130D130CA1040
    $2.94
    BOLT-FLANGED,10X40×11
  • 130E130CA1065
    $2.65
    BOLT-FLANGED,10X65×10
  • 172172BA0822
    $2.12
    BOLT-STUD,8X22Replaced by 92004-0837×4
