FXT00V-AS14 4 Stroke Engine FXT00V

FXT00V-AS14 Electric-Equipment Diagram

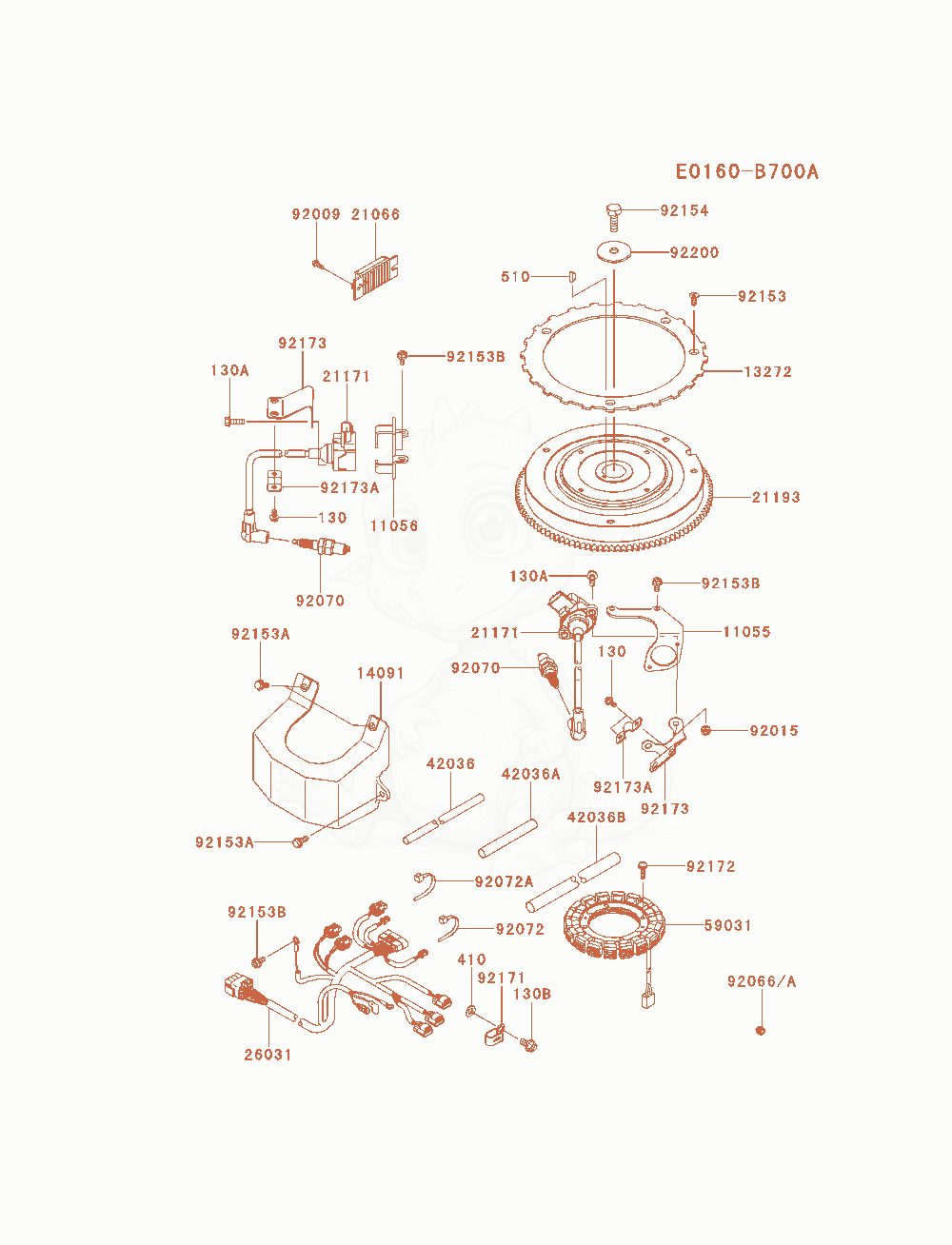

Exploded parts diagram of the Electric-Equipment of a Kawasaki FXT00V-AS14 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1105511055-7019-9H
    $7.89
    BRACKET,#2 IGNITION×1
  • 1105611056-7005Not stocked
    "BRACKET,#1 IGNITION"×1
  • 1327213272-7016Not stocked
    PLATE×1
  • 1409114091-7065Not stocked
    COVER,CONNECTOR×1
  • 2106621066-7011
    $70.15
    REGULATOR-VOLTAGEReplaced by 21066-0816×1
  • 2117199999-0476Not stocked
    KIT,COIL-IGNITION×2
  • 2119321193-7057Not stocked
    FLYWHEEL-ASSY×1
  • 2603126031-1643
    $584.33
    HARNESS×1
  • 4203642036-0731Not stocked
    SLEEVE×1
  • 42036A42036-0732Not stocked
    SLEEVE×1
  • 42036B42036-0733Not stocked
    SLEEVE×1
  • 5903159031-7017
    $112.81
    COIL-CHARGING×1
  • 9200992009-2308
    $0.32
    SCREW×2
  • 9201592015-1367
    $3.67
    NUT,FLANGED,6MM×2
  • 9206692066-0762Not stocked
    PLUG×1
  • 92066A92066-7026Not stocked
    PLUG×0
  • 920704006
    $3.04
    SPK PLG BPR5ES SOLIDReplaced by BPR5ES×2
  • 9207292072-0715
    $0.69
    BAND,3.5X205×4
  • 92072A92072-7003
    $1.12
    BAND×4
  • 9215392153-0848
    $3.06
    BOLT,6X15×4
  • 92153A92153-7007
    $3.78
    BOLT,FLANGED,6X16×3
  • 92153B92153-7043Not stocked
    BOLT,6X12×5
  • 9215492154-7003
    $4.36
    BOLT,12X30×1
  • 9217192171-7008Not stocked
    CLAMP×1
  • 9217292172-7018
    $0.30
    SCREW,5X20×4
  • 9217392173-1050Not stocked
    CLAMP×2
  • 92173A92173-1051Not stocked
    CLAMP×2
  • 9220092200-7040Not stocked
    WASHER,12.2X46X3×1
  • 130130B0510
    $0.95
    BOLT-FLANGED,5X10Replaced by 130AA0510×4
  • 130A130AA0620
    $3.09
    BOLT-FLANGED,6X20×4
  • 130B130AA0814Not stocked
    BOLT-FLANGED,8X14×1
  • 410410AA0800
    $0.80
    WASHER-PLAIN-SMALL,8MM×1
  • 510510A5100
    $2.96
    KEY-WOODRUFF×1
