FXT00V-AS10 4 Stroke Engine FXT00V

FXT00V-AS10 Fuel-Tank / Fuel-Valve Diagram

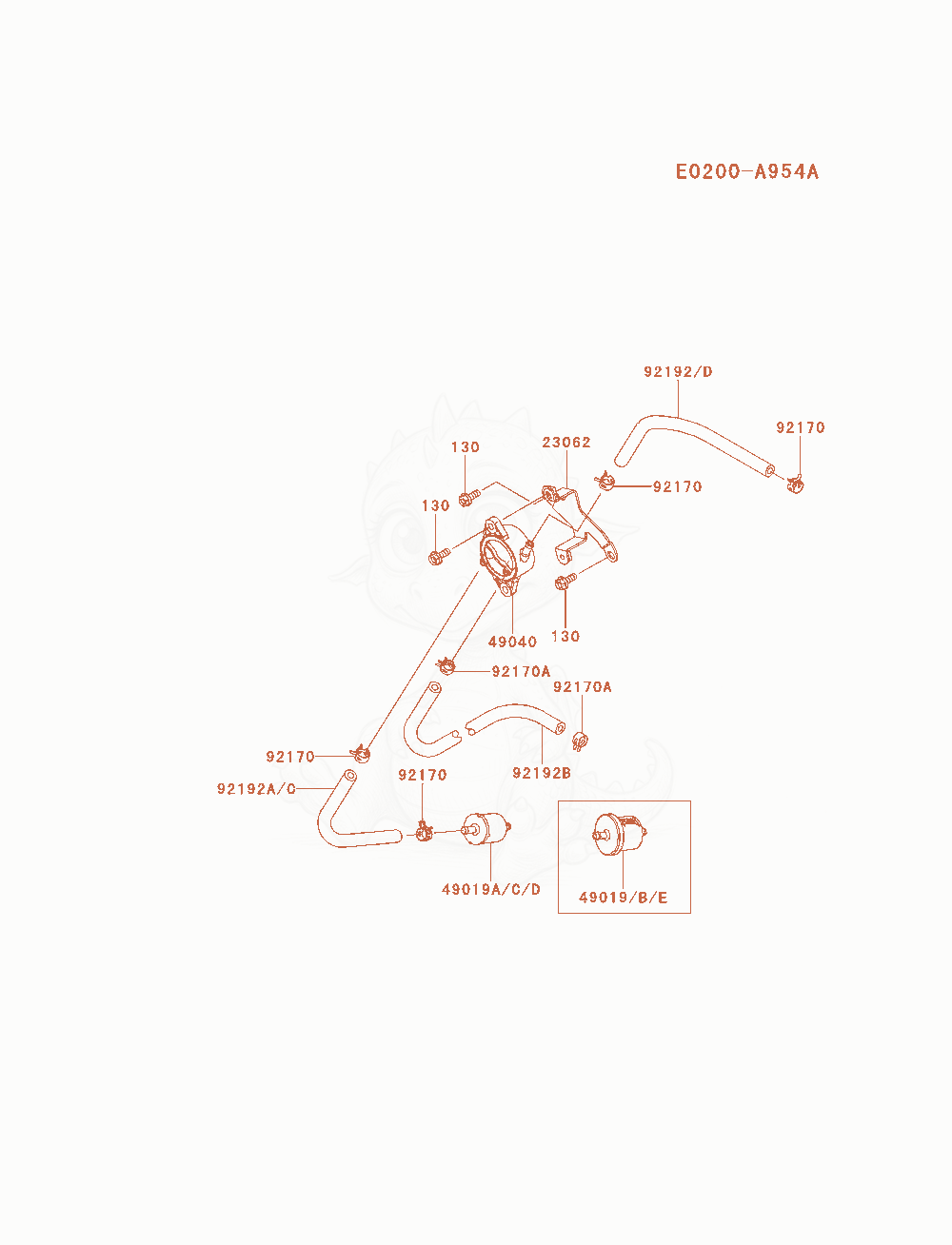

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FXT00V-AS10 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2306223062-7020
    $5.45
    BRACKET-COMP×1
  • 4901949019-0027
    $8.39
    FILTER-FUELReplaced by 49019-0031×0
  • 49019A49019-0027
    $8.39
    FILTER-FUELReplaced by 49019-0031×1
  • 49019B49019-0707
    $5.00
    FILTER-FUELReplaced by 49019-0031×0
  • 49019D49019-0027
    $8.39
    FILTER-FUELReplaced by 49019-0031×0
  • 49019E49019-7005
    $5.29
    FILTER-FUELReplaced by 49019-0031×0
  • 4904049040-7009
    $26.82
    PUMP-FUELReplaced by 49040-0803×1
  • 9217092170-2009
    $2.03
    CLAMPReplaced by 92173-1582×4
  • 92170A92170-2088
    $0.47
    CLAMPReplaced by 92173-1582×2
  • 9219292192-1537Not stocked
    TUBE,6.35X12.7X230×1
  • 92192A92192-1551
    $2.39
    TUBE,6.35X12.7X185Replaced by 92192-2388×1
  • 92192B92192-7077
    $5.68
    TUBE,6.4X12.7X318×1
  • 92192C92192-7172Not stocked
    TUBE,6.35X12.7X185×0
  • 92192D92192-1537Not stocked
    TUBE,6.35X12.7X230×0
  • 130130BA0616Not stocked
    BOLT-FLANGED,6X16×4
