FXT00V-AS05 4 Stroke Engine FXT00V

FXT00V-AS05 Fuel-Tank / Fuel-Valve Diagram

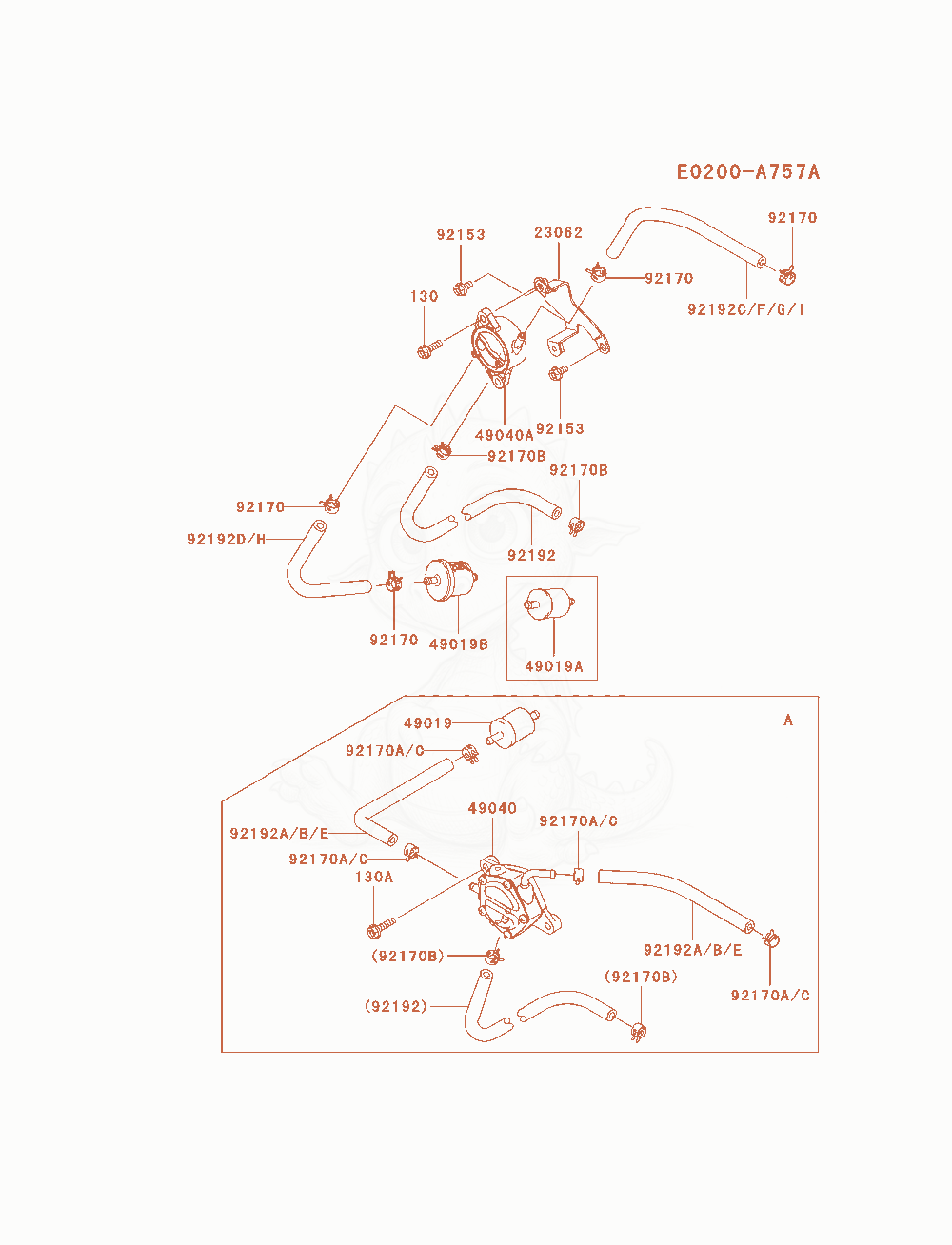

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FXT00V-AS05 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 4901949019-0027
    $8.39
    FILTER-FUELReplaced by 49019-0031×1
  • 4904099999-7073
    $122.23
    KIT.,PUMP-FUEL×1
  • 92170A92170-2009
    $2.03
    CLAMPReplaced by 92173-1582×4
  • 92170B92170-2088
    $0.47
    CLAMPReplaced by 92173-1582×2
  • 92170C92170-2088
    $0.47
    CLAMPReplaced by 92173-1582×0
  • 9219292192-7077
    $5.68
    TUBE,6.4X12.7X318×1
  • 92192A92192-7172Not stocked
    TUBE,6.35X12.7X185×0
  • 92192B92192-7172Not stocked
    TUBE,6.35X12.7X185×0
  • 92192E92192-7145Not stocked
    TUBE,6.35X12.7X185×2
  • 130A130AA0625
    $0.50
    BOLT-FLANGED,6X25×2
