FXT00V-AS00 4 Stroke Engine FXT00V

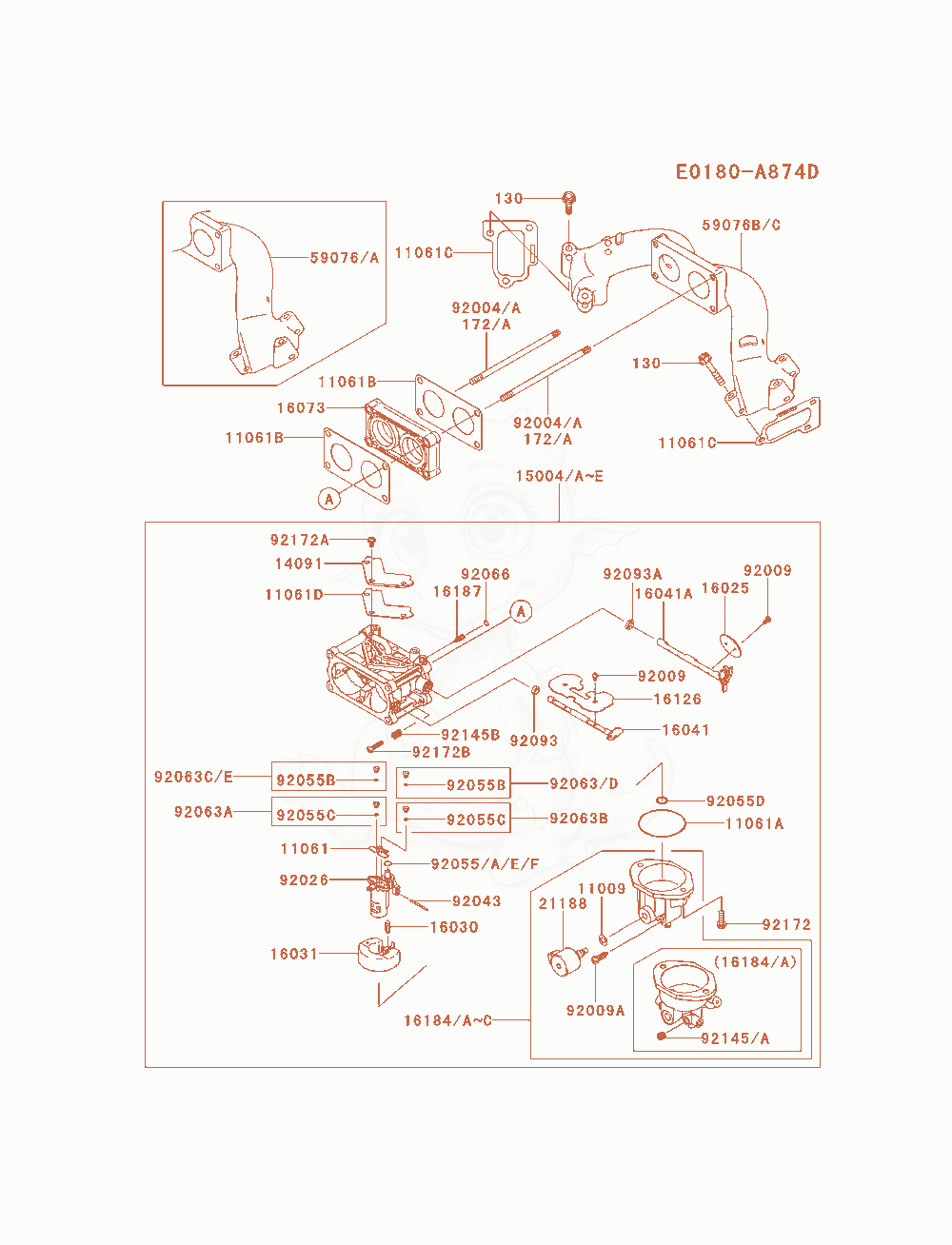

FXT00V-AS00 Carburetor Diagram
- RING-O×1
- JET-MAIN,#134,6560FT×AR
- JET-MAIN,#134,6560FT×1
- JET-MAIN,#140×1
- JET-MAIN,#131,3280FT×AR
- JET-MAIN,#137,3280FT×AR
- JET-MAIN,#128,6560FT×AR
- PLUG,EXPANSION×2
- SEAL,D=5.9×1
- SEAL,D=6.9×1
- SPRING×1
- SPRING×1
- SCREW,M5×2
- SCREW,M4×3
- SCREW,THROTTLE ADJUST×1
- BOLT-FLANGED,6X35×6
- BOLT-STUD,6X120×2
