FX921V-BS16 4 Stroke Engine FX921V

FX921V-BS16 Lubrication-Equipment Diagram

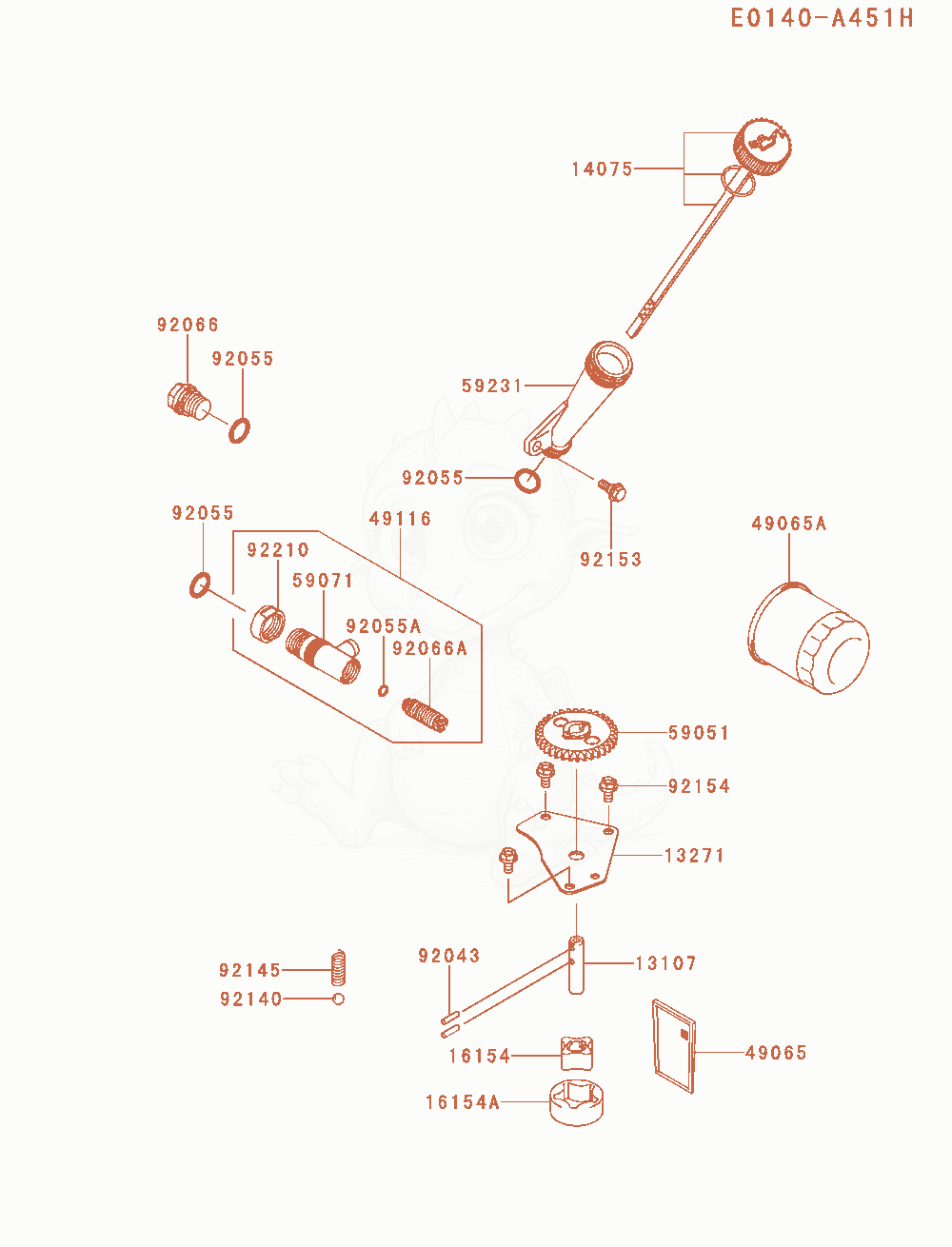

Exploded parts diagram of the Lubrication-Equipment of a Kawasaki FX921V-BS16 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1310713107-0858Not stocked
    SHAFT,OIL PUMP×1
  • 1327113271-7034
    $3.37
    PLATE,ROTOR-PUMP×1
  • 1407514075-0036
    $8.08
    CAP-ASSYReplaced by 14075-0726×1
  • 1615416154-7007
    $8.11
    ROTOR-PUMP,IN×1
  • 16154A16154-7008
    $18.53
    ROTOR-PUMP,OUT×1
  • 4906549065-7004Not stocked
    FILTER-OIL×1
  • 49065A49065-0724Not stocked
    FILTER-OIL×1
  • 4911649116-7001Not stocked
    VALVE-ASSY×1
  • 5905159051-7026
    $53.07
    GEAR-SPUR,OIL-PUMP×1
  • 5907159071-7008
    $9.56
    JOINTReplaced by 59071-0763×1
  • 5923159231-7011Not stocked
    FILLER×1
  • 9204392043-7003Not stocked
    PIN×2
  • 9205592055-0892
    $0.79
    RING-O,15.8X2.4×3
  • 92055A92055-7002
    $3.98
    RING-O,6MM×1
  • 9206692066-0774
    $4.56
    PLUG×1
  • 92066A92066-7007Not stocked
    PLUG×1
  • 9214092140-7003
    $1.10
    BALL,STEEL,13/32Replaced by 92140-0029×1
  • 9214592145-7046
    $0.86
    SPRING×1
  • 9215392153-7007
    $3.78
    BOLT,FLANGED,6X16×1
  • 9215492154-2938
    $2.74
    BOLT,6X12×3
  • 9221092210-7012Not stocked
    NUT,M22×1
