FX921V-BS09 4 Stroke Engine FX921V

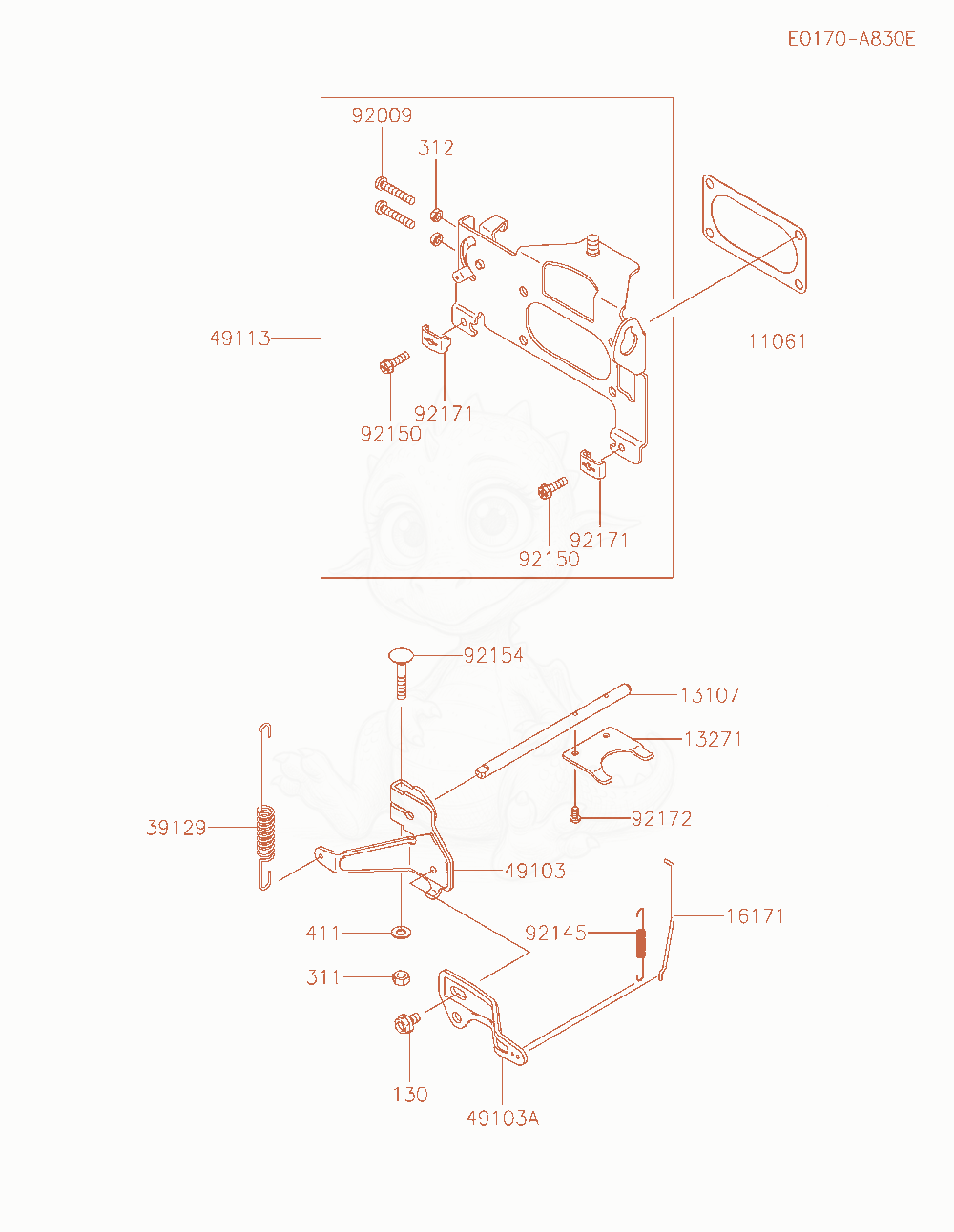

FX921V-BS09 Control-Equipment Diagram
- GASKET,PIPE-INTAKE×1
- SHAFT×1
- PLATE×1
- LINK×1
- SPRING-GOVERNOR×1
- ARM-GOVERNOR×1
- ARM-GOVERNOR×1
- PANEL-COMP-CONTROL×1
- SCREW,5X30×2
- SPRING×1
- BOLT,5X18×2
- BOLT,6X35×1
- CLAMP×2
- SCREW,4X8Replaced by 92172-1731×2
- BOLT-FLANGED,6X10×1
- NUT-HEX,6MM×1
- NUT-HEX,5MM×2
- WASHER-PLAIN,6MM×1
