FX921V-BS08 4 Stroke Engine FX921V

FX921V-BS08 Fuel-Tank / Fuel-Valve Diagram

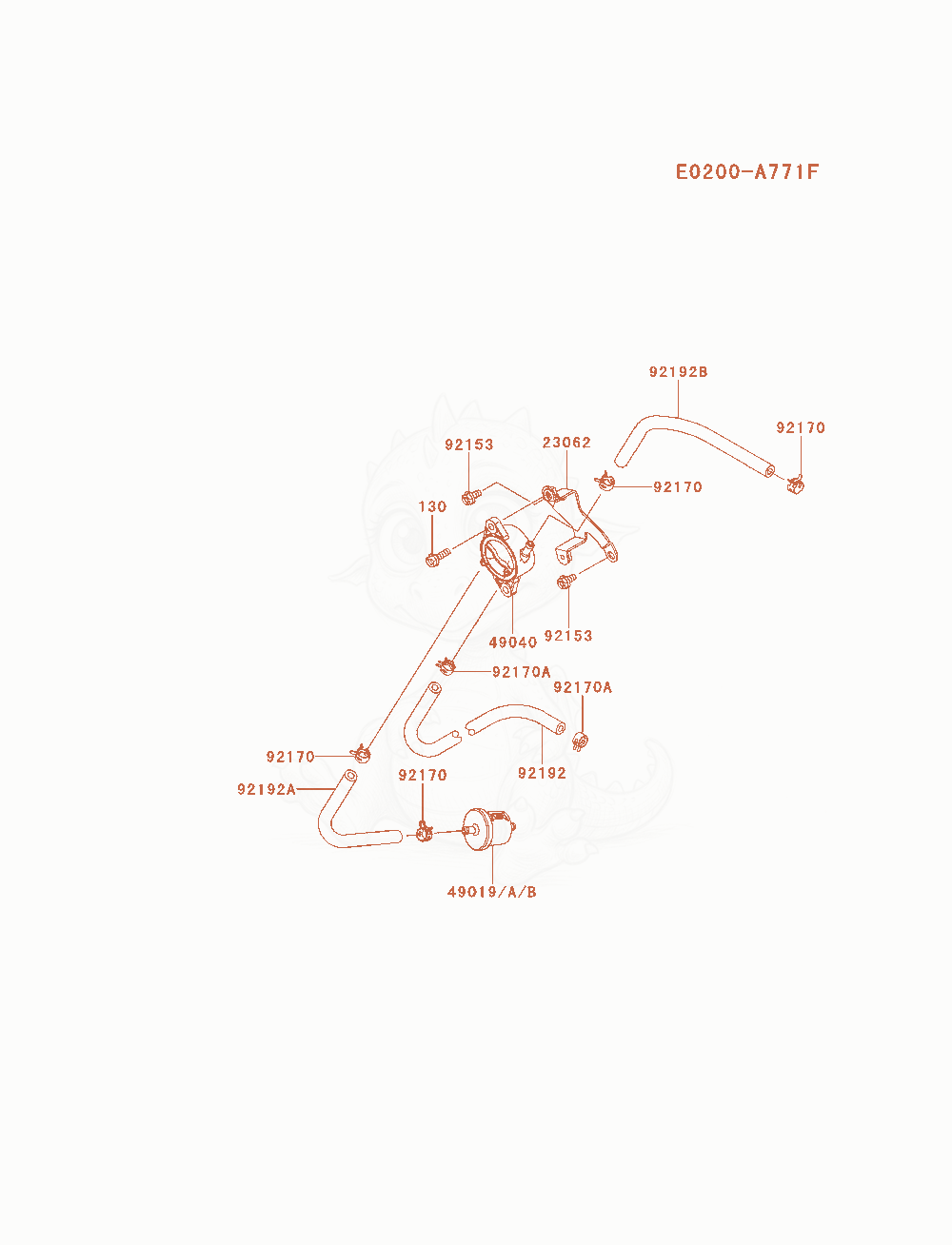

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FX921V-BS08 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2306223062-7020
    $5.45
    BRACKET-COMP×1
  • 4901949019-0707
    $5.00
    FILTER-FUELReplaced by 49019-0031×1
  • 4904049040-7009
    $26.82
    PUMP-FUELReplaced by 49040-0803×1
  • 9215392153-7043Not stocked
    BOLT,6X12×2
  • 9217092170-2009
    $2.03
    CLAMPReplaced by 92173-1582×4
  • 92170A92170-2088
    $0.47
    CLAMPReplaced by 92173-1582×2
  • 9219292192-7077
    $5.68
    TUBE,6.4X12.7X318×1
  • 92192A92192-7172Not stocked
    TUBE,6.35X12.7X185×1
  • 92192B92192-1537Not stocked
    TUBE,6.35X12.7X230×1
  • 130130AA0620
    $3.09
    BOLT-FLANGED,6X20×2
