FX921V-BS00 4 Stroke Engine FX921V

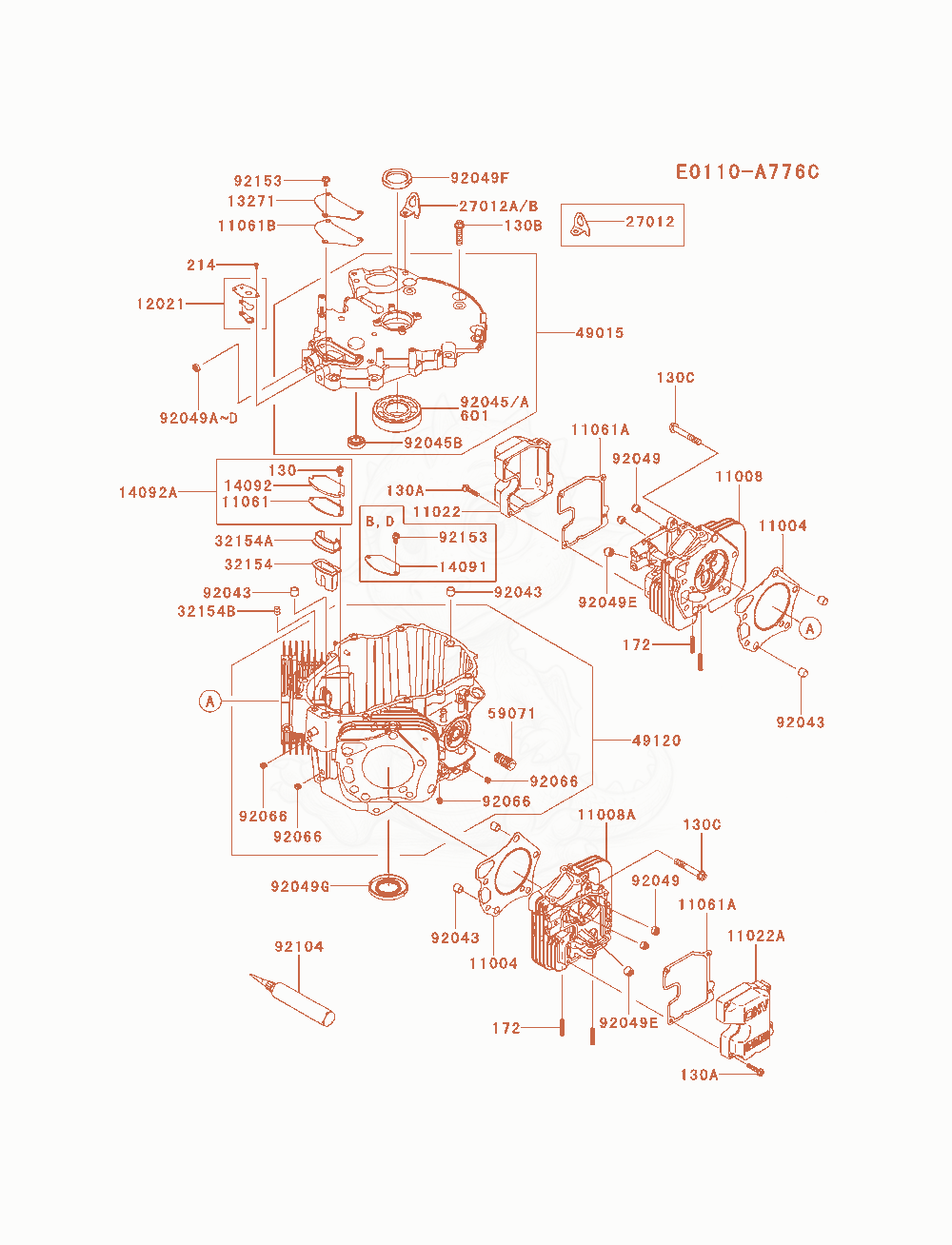

FX921V-BS00 Cylinder / Crankcase Diagram

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FX921V-BS00 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 92049E92049-7020
    $3.71
    SEAL-OIL,7X15X13×2
  • 92049F92049-7024
    $5.76
    SEAL-OIL,SD 40X54X9 R HS×1
  • 92049G92049-7025
    $14.99
    SEAL-OIL,SD 40X72X8 L VS×1
  • 9206692066-7026Not stocked
    PLUG×4
  • 9210492104-7001
    $45.03
    GASKET-LIQUID,TB1217HReplaced by 92104-0007×AR
  • 9215392153-7043Not stocked
    BOLT,6X12×5
  • 130A130AA0630
    $1.45
    BOLT-FLANGED,6X30×8
  • 130B130CA1040
    $2.94
    BOLT-FLANGED,10X40×11
  • 130C130CA1065
    $2.65
    BOLT-FLANGED,10X65×10
  • 172172BA0818
    $1.74
    BOLT-STUD,8X18×4
  • 214214AA0408
    $4.13
    SCREW-PAN+-,4X8×2
  • 60192045-0712
    $37.83
    BEARING-BALL,6308Replaced by 601A6308×0
