FX921V-AS15 4 Stroke Engine FX921V

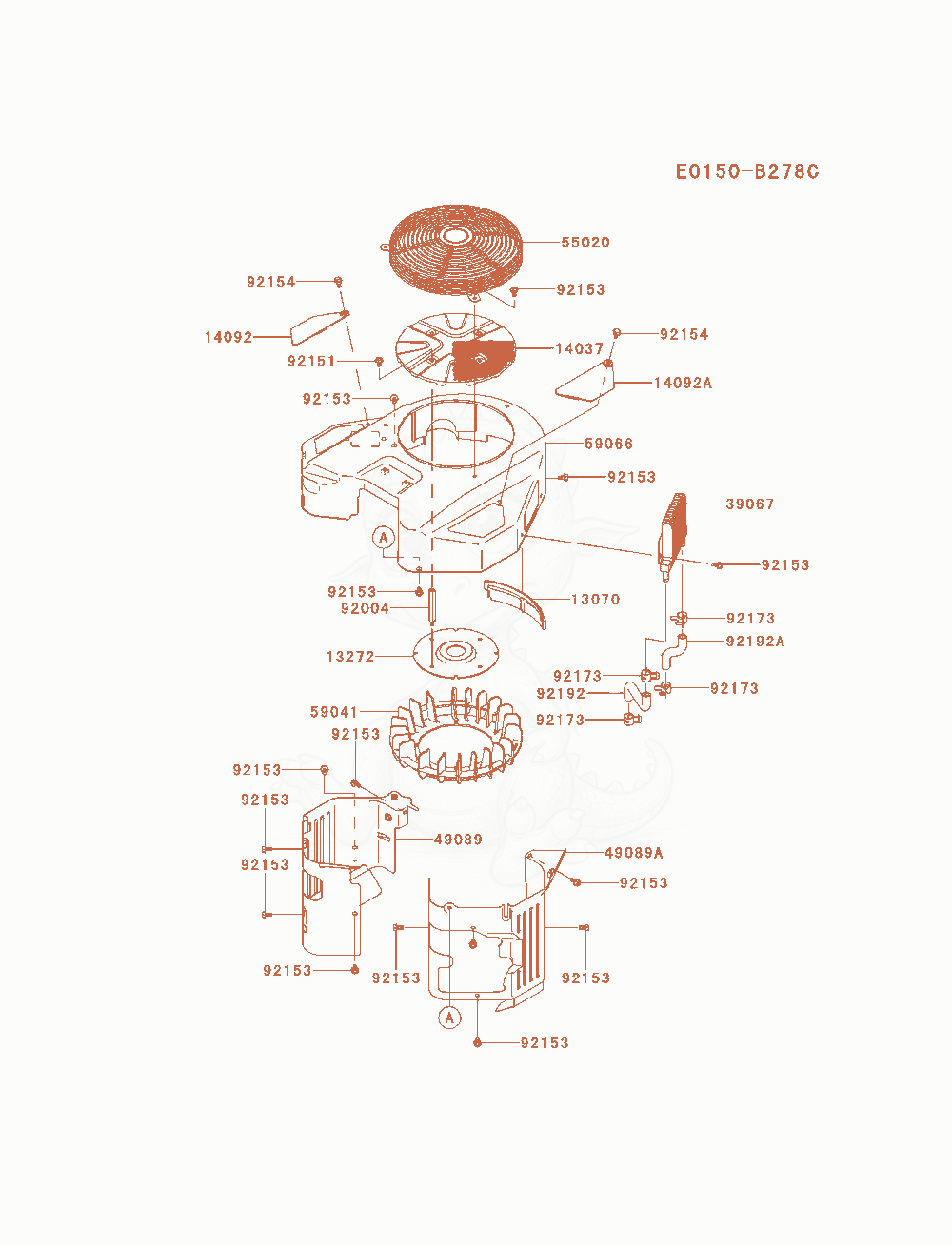

FX921V-AS15 Cooling-Equipment Diagram

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FX921V-AS15 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1307013070-7013Not stocked
    GUIDE×1
  • 1327213272-1485
    $11.81
    PLATE,FAN×1
  • 1403714037-7029-9H
    $21.11
    SCREENReplaced by 14037-0804×1
  • 1409214092-1039
    $1.75
    COVER×1
  • 14092A14092-1040
    $1.76
    COVER×1
  • 3906739067-0018Not stocked
    COOLER-OIL×1
  • 4908949089-0872Not stocked
    SHROUD-ENGINE,#1×1
  • 49089A49089-7088-753
    $35.97
    SHROUD-ENGINEReplaced by 49089-1192×1
  • 5502055020-7016-9H
    $46.46
    GUARD×1
  • 5904159041-7019
    $17.87
    FAN×1
  • 5906659066-0807-753
    $96.14
    HOUSING-FAN,GRAYReplaced by 59066-0856×1
  • 9200492004-7021Not stocked
    STUD,6X69×4
  • 9215192151-7012Not stocked
    BOLT,6X12×4
  • 9215392153-7043Not stocked
    BOLT,6X12×18
  • 9215492154-1119
    $2.06
    BOLT×2
  • 9217392173-1619
    $3.34
    CLAMP×4
  • 9219292192-7078
    $12.42
    TUBE×1
  • 92192A92192-7079
    $8.96
    TUBE×1
