FX921V-AS06 4 Stroke Engine FX921V

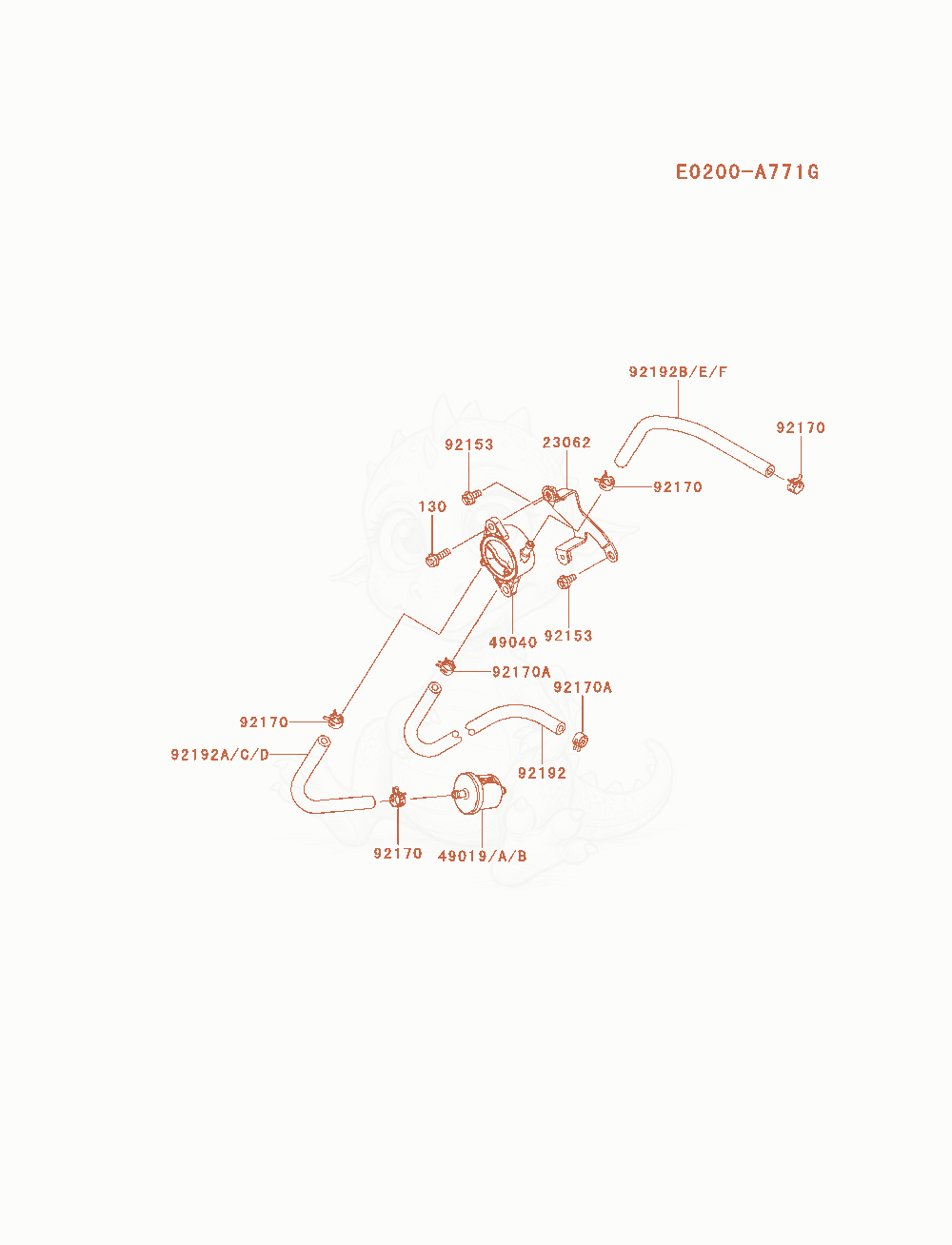

FX921V-AS06 Fuel-Tank / Fuel-Valve Diagram

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FX921V-AS06 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2306223062-7020Price
    BRACKET-COMP×1
  • 49019A49019-0707Not stocked
    FILTER-FUEL×1
  • 49019B49019-7005Not stocked
    FILTER-FUEL×0
  • 4904049040-7009Not stocked
    PUMP-FUEL×1
  • 9215392153-7043Not stocked
    BOLT,6X12×2
  • 9217092170-2009Price
    CLAMPReplaced by 92173-1582×4
  • 92170A92170-2088Not stocked
    CLAMP×2
  • 9219292192-7077Price
    TUBE,6.4X12.7X318×1
  • 92192A92192-7145Not stocked
    TUBE,6.35X12.7X185×0
  • 92192B92192-1537Not stocked
    TUBE,6.35X12.7X230×0
  • 92192D92192-7172Not stocked
    TUBE,6.35X12.7X185×1
  • 92192F92192-1537Not stocked
    TUBE,6.35X12.7X230×1
  • 130130AA0620Price
    BOLT-FLANGED,6X20×2
