FX850V-AS23 4 Stroke Engine FX850V

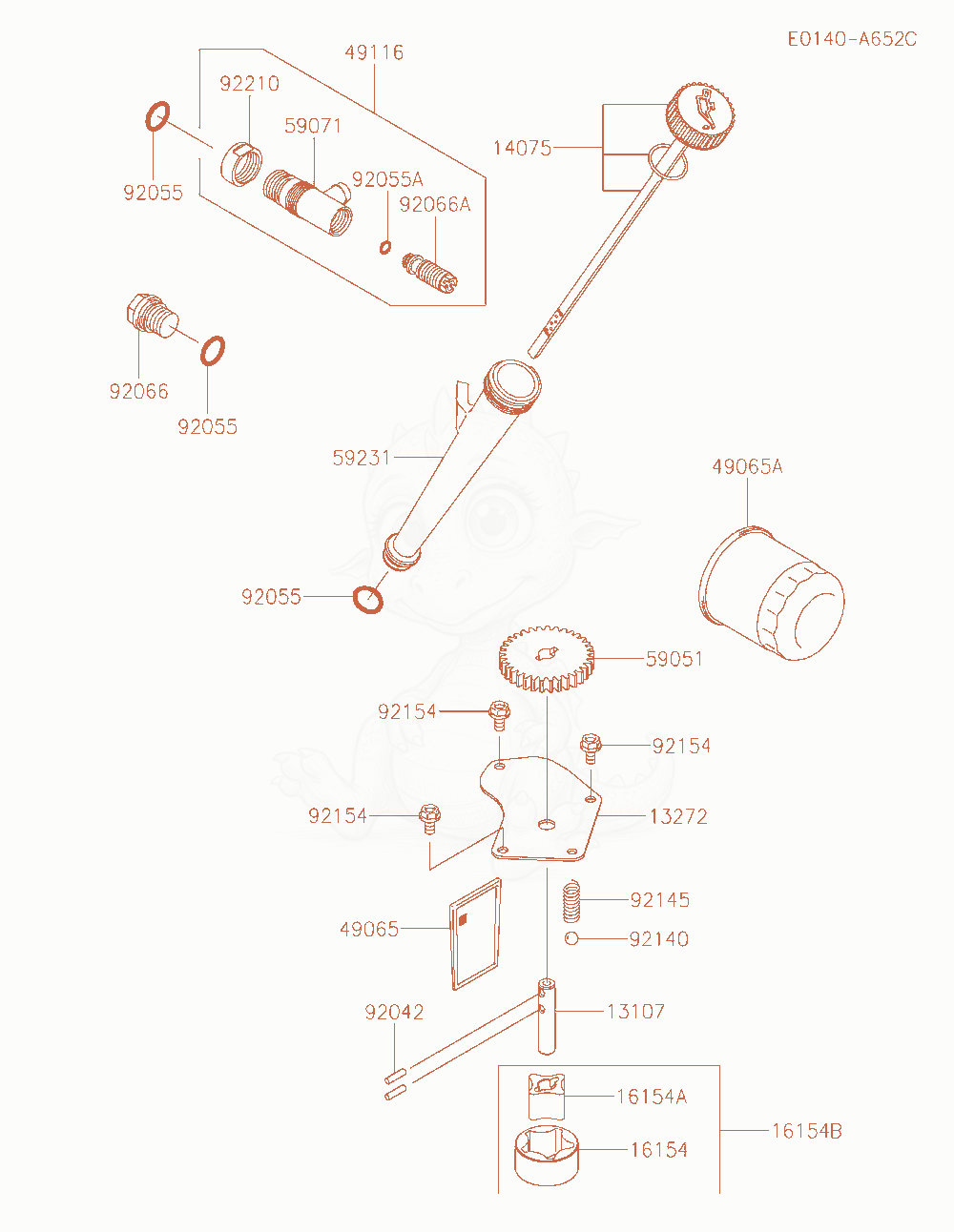

FX850V-AS23 Lubrication-Equipment Diagram
- SHAFT,OIL PUMPReplaced by 13107-1553×1
- PLATE,OIL PUMP×1
- 1407514075-0049Not stockedCAP-ASSY×1
- 1615416154-1075Not stockedROTOR-PUMP,OUTER×1
- ROTOR-PUMP,INNER×1
- ROTOR-PUMP×1
- FILTER-OIL×1
- 49065A49065-0724Not stockedFILTER-OIL×1
- VALVE-ASSY×1
- GEAR-SPUR×1
- JOINT×1
- FILLERReplaced by 59231-0791×1
- PIN,DOWEL,4X15.8×2
- RING-O,15.8X2.4×3
- RING-O,6MM×1
- PLUG×1
- PLUG×1
- BALL,STEEL,13/32Replaced by 92140-0029×1
- SPRING,OIL RELIEF×1
- BOLT,6X12×3
- NUT,M22×1
