FX850V-AS18 4 Stroke Engine FX850V

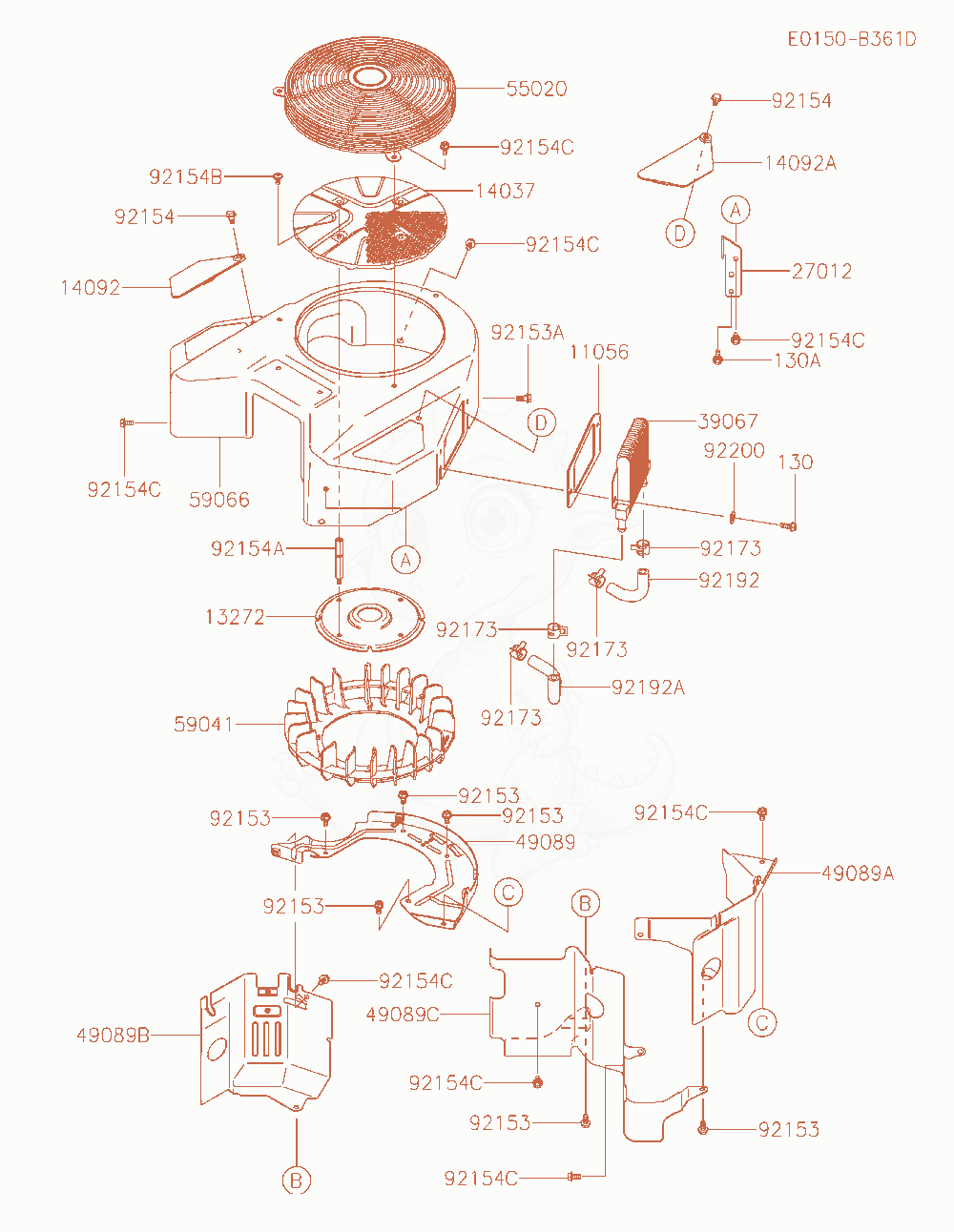

FX850V-AS18 Cooling-Equipment Diagram
- 1105611056-7280Not stockedBRACKET× 1
- PLATE,FAN× 1
- SCREEN× 1
- COVER× 1
- COVER× 1
- HOOK,LIFT× 1
- 3906739067-0018Not stockedCOOLER-OIL× 1
- 4908949089-0866Not stockedSHROUD-ENGINE,BACK× 1
- SHROUD-ENGINE,#2× 1
- SHROUD-ENGINE,#1Replaced by 49089-6048× 1
- SHROUD-ENGINE,V-BANKReplaced by 49089-1176× 1
- GUARD× 1
- FAN× 1
- 5906659066-0740Not stockedHOUSING-FAN× 1
- BOLT,FLANGED,6X12× 6
- BOLT,FLANGED,6X16× 1
- BOLT× 2
- BOLT,SCREENReplaced by 92154-4312× 4
- BOLT,6X12× 4
- BOLT,6X12×10
- CLAMP× 4
- TUBE× 1
- TUBE× 1
- WASHER,6.5X18X2.0× 2
- 130130BA0616Not stockedBOLT-FLANGED,6X16× 2
- BOLT-FLANGED,6X20× 1
