FX850V-AS08 4 Stroke Engine FX850V

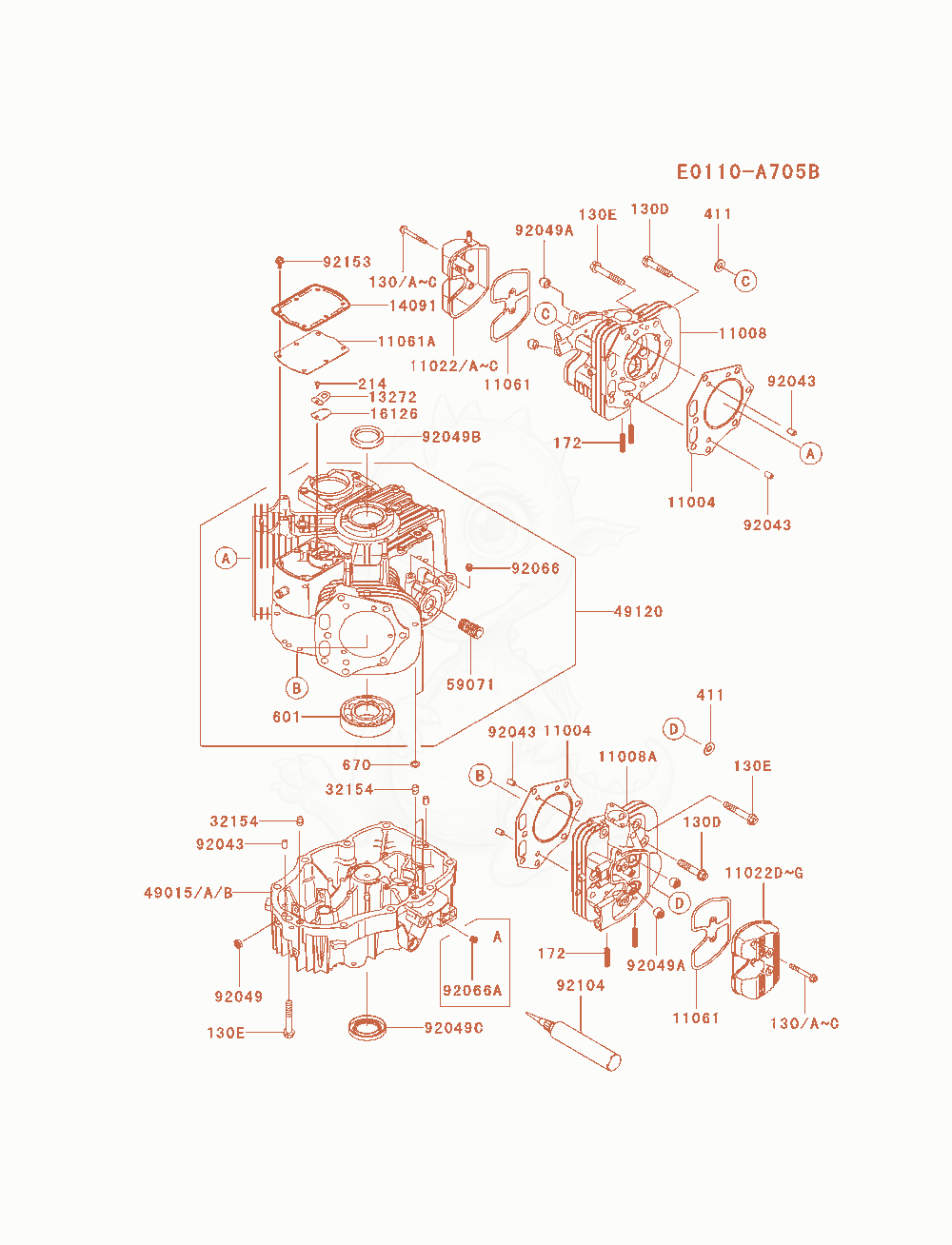

FX850V-AS08 Cylinder / Crankcase Diagram

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FX850V-AS08 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

130130BA0650
$1.01
BOLT-FLANGED,6X50×4
130D130CA1050
$3.85
BOLT-FLANGED,10X50×2
130E130CA1060
$3.80
BOLT-FLANGED,10X60×20
172172BA0818
$1.74
BOLT-STUD,8X18×4
214214AA0408
$4.13
SCREW-PAN+-,4X8×1
411411AA1000
$0.82
WASHER-PLAIN,10MM×2
60192045-0712
$37.83
BEARING-BALL,6308Replaced by 601A6308×1
670670B2011
$5.21
O RING,11MM×2
