FX850V-AR33 4 Stroke Engine FX850V

FX850V-AR33 Piston / Crankshaft Diagram

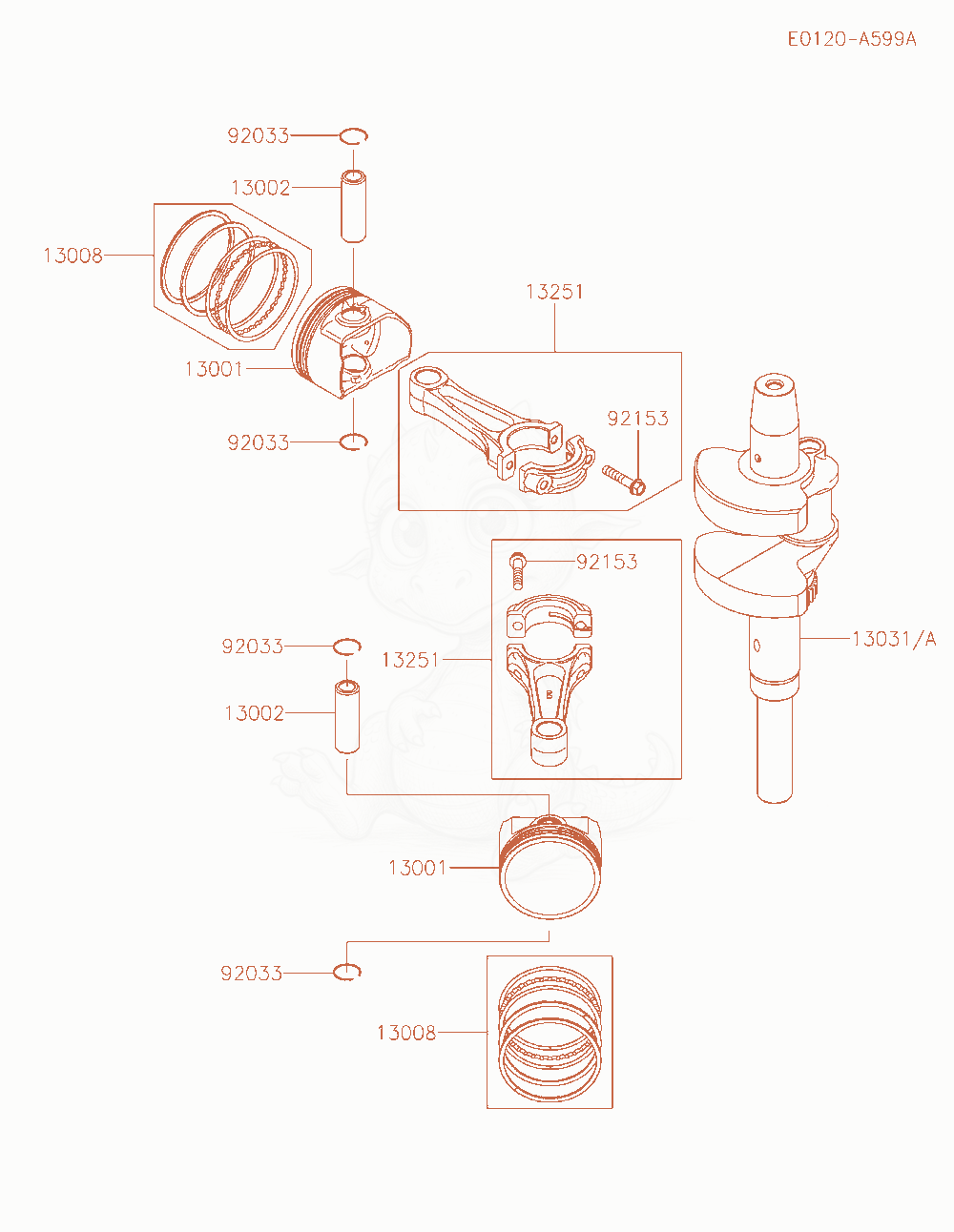

Exploded parts diagram of the Piston / Crankshaft of a Kawasaki FX850V-AR33 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1300113001-7025
$69.10
PISTON-ENGINE×2
1300213002-7005Not stocked
PIN-PISTON×2
1300813008-0602
$37.65
RING-SET-PISTON×2
1303113031-1516
$443.40
CRANKSHAFT-COMPReplaced by 99999-0842×1
1325113251-0736
$56.80
ROD-ASSY-CONNECTING×2
9203392033-0779
$1.38
RING-SNAP×4
9215392153-2054
$1.59
BOLT,7X35.2×4
